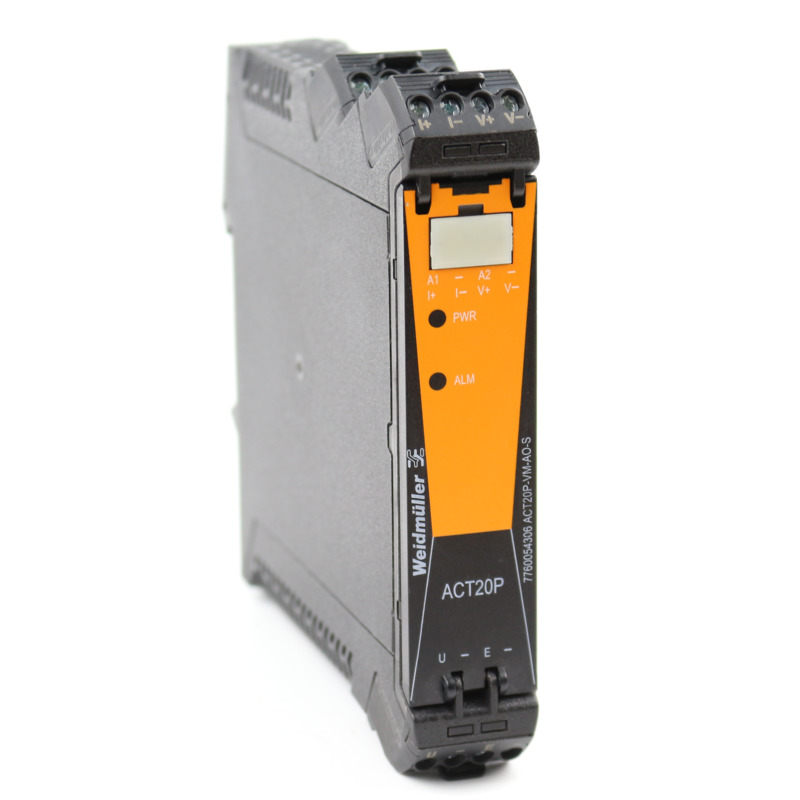

Weidmuller 7760054306 ACT20P Signal Converter/Isolator With FDT/DTM Software
Part Number # 7760054306
SKU # 2368418
$310.73 / Each
Weidmuller 7760054306 Key Features
Brand: Weidmuller
Part Number # 7760054306
SKU #2368418
Accuracy: 0.5% FSR
Dimensions: 117 mm H x 22.5 mm W x 114.3 mm D
Input Type: AC/DC Voltage/Analog
Input Voltage: 0 to 30/0 to 60/0 to 150/0 to 300/0 to 440/0 to 660 VDC, 0 to 60/0 to 144/0 to 300/0 to 440 VAC
Response Time: <300 ms
Series: ACT20P
Specifications: 24 to 240 VAC/VDC Supply, 600 V, 300 V Rated, 1.5 kV, 2 kV Insulation, -40 to 85 deg C Storage, 5 to 95% Non-Condensation Humidity
Temperature Rating (Degrees F): -25 to 65 deg C
Connection type: Screw
Output current: 0 to 20 mA
Output type: Analog
Output voltage: 0 to 10 V
UNSPSC: 39121020
UPC: 06944169749087
$310.73 / Each
Weidmuller 7760054306 ACT20P Signal Converter/Isolator With FDT/DTM Software
Brand: Weidmuller
Part Number: 7760054306
Additional Description: WEID-7760054306 ACT20P-VM-AO-S SIGNAL CONVERTER/INSULATOR, SIGNAL CONVERTER/ISOLATOR, INPUT : AC/DC VOLTAGE, 0...600 V DC, 0 440 V AC, OUTPUT : 0-10 V, 0(4)-20 MA
7760054306 Item Features
- Precise and highly functional signal converters
- Release levers simplify handling
- Configuration and monitoring are performed via FDT/DTM-Software, WI-manager
- Signal and alarm triggering upon exceeding limit values or reverse polarity DC input voltage
- Front LED indicates operation status
- 3-way galvanic isolation between input, output and power supply
