70;70-1X30FT;70130
3M 70;70-1X30FT;70130
Part Number # 70;70-1X30FT;70130
SKU # 100
3M 70;70-1X30FT;70130 Key Features
| Brand: | 3M |
|---|---|
| Part Number # : | 70;70-1X30FT;70130 |
| SKU #: | 100 |
| Series: | 70 |
| Type: | Self-Fusing |
| Dielectric strength: | 34 kV/mm |
| UNSPSC: | 31201500 |
| UPC: | 00051128572610 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
3M 70;70-1X30FT;70130
Brand: 3M
Part Number: 70;70-1X30FT;70130

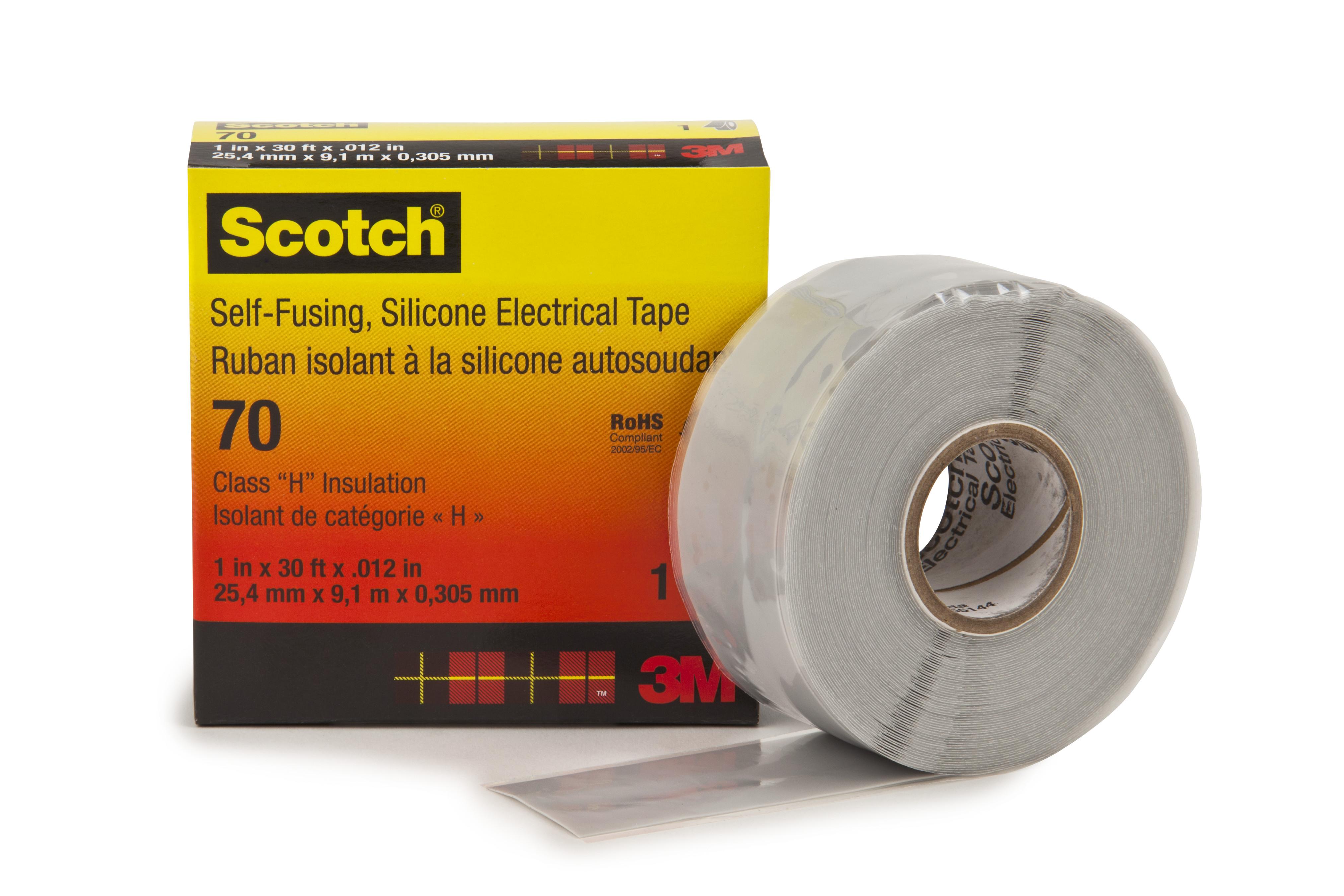

Scotch, 7000006225, Tape, Self-Fusing, 10 yd Length, 1 in Width, 12 mil Thickness, Silicone, Sky Blue/Gray, 34 kV/mm Dielectric Strength, 82.7 kPa Tensile Strength, 356 deg F Maximum Operating, 32 deg F Minimum Operating, Specifications Met: AA-59163 Class-I Type I/ASTM D-1-76/ASTM D-495-71/RoHS 211/65/EU
Additional Description: 3M -70-1X30FT SCOTCH SELF-FUSING SILICONE RUBBER ELECTRICAL TAPE 70 7000006225
Catalog Description: Scotch® Tape 70 is a 12 mil thick, premium grade, electrical tape with silicone rubber backing. This tape is used as a base tape layer for easy re enter connections. It withstands temperatures up to 356 °F (180 °C).
70;70-1X30FT;70130 Application
For Electrical Maintenance, Insulation70;70-1X30FT;70130 Item Features
- High dielectric strength (high voltage use)
- Class "H" temperature rated based on silicone material properties 356F (180C)
- Apply in half-lapped layers using moderate tension and apply last lap with zero stretch
- Provides protection from weather conditions, UV exposure, and is workable at extremely low temps
- Can be applied over exposed cable insulation or end seal used with molded (slip-on) stress cones
- Chemical-resistant, Self-sticking, UV-resistant
70;70-1X30FT;70130 Standards
RoHS 2011/65/EU CompliantSKU #100Part Number #70;70-1X30FT;70130UNSPSC31201500UPC00051128572610
Image provided may only be a representation of final product and may include optional equipment
