Part Number # NBB1.5-8GM50-A2-V1
SKU # 1100667
Brand: Pepperl+Fuchs
NBB1.5-8GM50-A2-V1

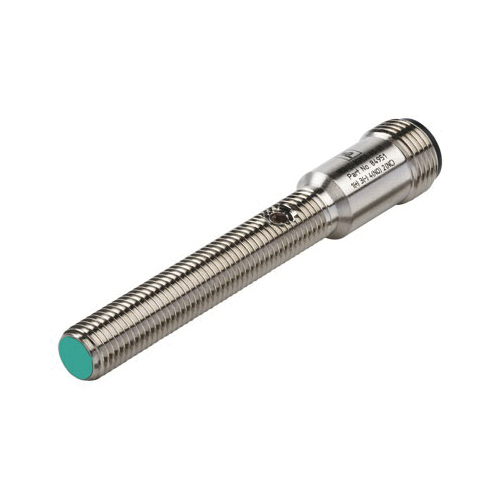

Pepperl+Fuchs NBB1.5-8GM50-A2-V1
Part Number # NBB1.5-8GM50-A2-V1
SKU # 1100667
$107.76 / Each
Typical price:$110.88 / Each
Pepperl+Fuchs NBB1.5-8GM50-A2-V1 Key Features
| Brand: | Pepperl+Fuchs |
|---|---|
| Part Number # : | NBB1.5-8GM50-A2-V1 |
| SKU #: | 1100667 |
| Amperage Rating: | 100 mA |
| Sensing Distance: | 1.5 mm |
| Sensing Method: | Inductive |
| Size: | 8 mm Dia x 70 mm L |
| Switching Speed: | 1500 Hz |
| Temperature Rating (Degrees F): | -13 to 158 deg F |
| Type: | Tubular |
| Material: | Brass |
| Mounting type: | Flush |
| Output type: | PNP |
| Manufacturer Name: | Pepperl+Fuchs |
| UNSPSC: | 39122230 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$107.76 / Each
Typical price:$110.88 / Each
Quantity:
- Pepperl+Fuchs Proximity Sensor, Tubular, Inductive Sensing Method, 1.5 mm Sensing Distance, PNP Output 10/30 VDC, 100 mA, 1500 Hz Switching Speed, 8 mm Dia x 70 mm L, -13 to 158 deg F, Flush Mount, Brass
NBB1.5-8GM50-A2-V1 Item Features
- 0 to 1.215 mm assured operating distance
- Reverse polarity protection
- Pulsing short-circuit protection
- LED, yellow switching state indicator
- 4-pin, M12 x 1 connector
- LCP sensing face
- IP67 degree of protection
- Nickel plated housing
- DC output polarity
NBB1.5-8GM50-A2-V1 Standards
cULus|cCSAus ListedSKU #1100667Part Number #NBB1.5-8GM50-A2-V1UNSPSC39122230UPC
Image provided may only be a representation of final product and may include optional equipment
