Part Number # 170ADM85010
SKU # 1193265
Image Disclaimers Message

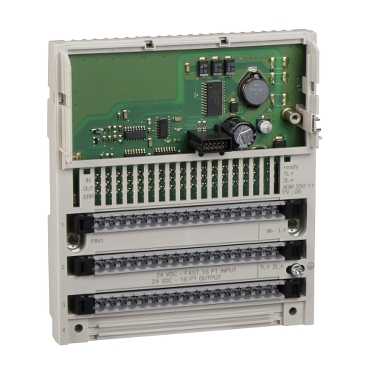

Square D 170ADM85010 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | 170ADM85010 |
| SKU #: | 1193265 |
| Amperage Rating: | 125/250/500, 250, 250 mA |
| Dimensions: | 141.5 mm H x 125 mm W x 47.5 mm D, 47.5 mm L x 125 mm W x 141.5 mm H |
| Series: | 170AD |
| Signal Range: | 10 to 60 |
| Temperature Rating (Degrees F): | 0 to 60, 0 to 60 deg C |
| Type: | Relay Base DC |
| Country of origin: | FR |
| Number of inputs: | 16 |
| Number of outputs: | 16 |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 32151601 |
| UPC: | 00785901449584 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$736.62 / Each
Quantity:
- Square D Modicon Discrete I/O Module, Relay Base DC, Series: 170AD, 16 Input, 16 Output, <0.1 to 1 ms, 24 V DC, 250 mA, 6 W, 0 to 60 deg C, 141.5 mm H x 125 mm W x 47.5 mm D
170ADM85010 Application
Industrial and Building Automation170ADM85010 Item Features
- Modicum momentum automation platform
- 1 group of 16 inputs, 1 group of 16 outputs group of channel
- TC protective treatment
- Positive discrete output logic
- 10 to 60 VDC input voltage limits, <10 to 48 VDC state 0 guaranteed, >11 V 24 VDC state 1 guaranteed
- 6.0 + (0.144 x number of input points) + (0.25 x number of output points) power dissipation
- 0.5 A per point discrete output current
- 707 VDC isolation between group of input/output channel, isolation between channel and bus
- <1 mA 60 V output circuit leakage current
- 4 kV contacts IEC 801-2 resistance to electrostatic discharge
- 10 V/m 80 to 1000 MHz IEC 801-3 resistance to electromagnetic fields
- -40 to 185 deg F ambient air temperature for storage
- 95% without condensation relative humidity
- <=5000 m operating altitude
- 5 A peak output current
- <1 V 0.5 A at state 1 output circuit voltage drop
- Overload on output fault type
- <0.1 ms from state 0 to state 1 on output response time
170ADM85010 Standards
UL Listed|IEC 801-2|IEC 1131-2|CE Certified|CSA Certified|FM ApprovedSKU #1193265Part Number #170ADM85010UNSPSC32151601UPC00785901449584
