Part Number # 1SNA115486R0300
SKU # 12398

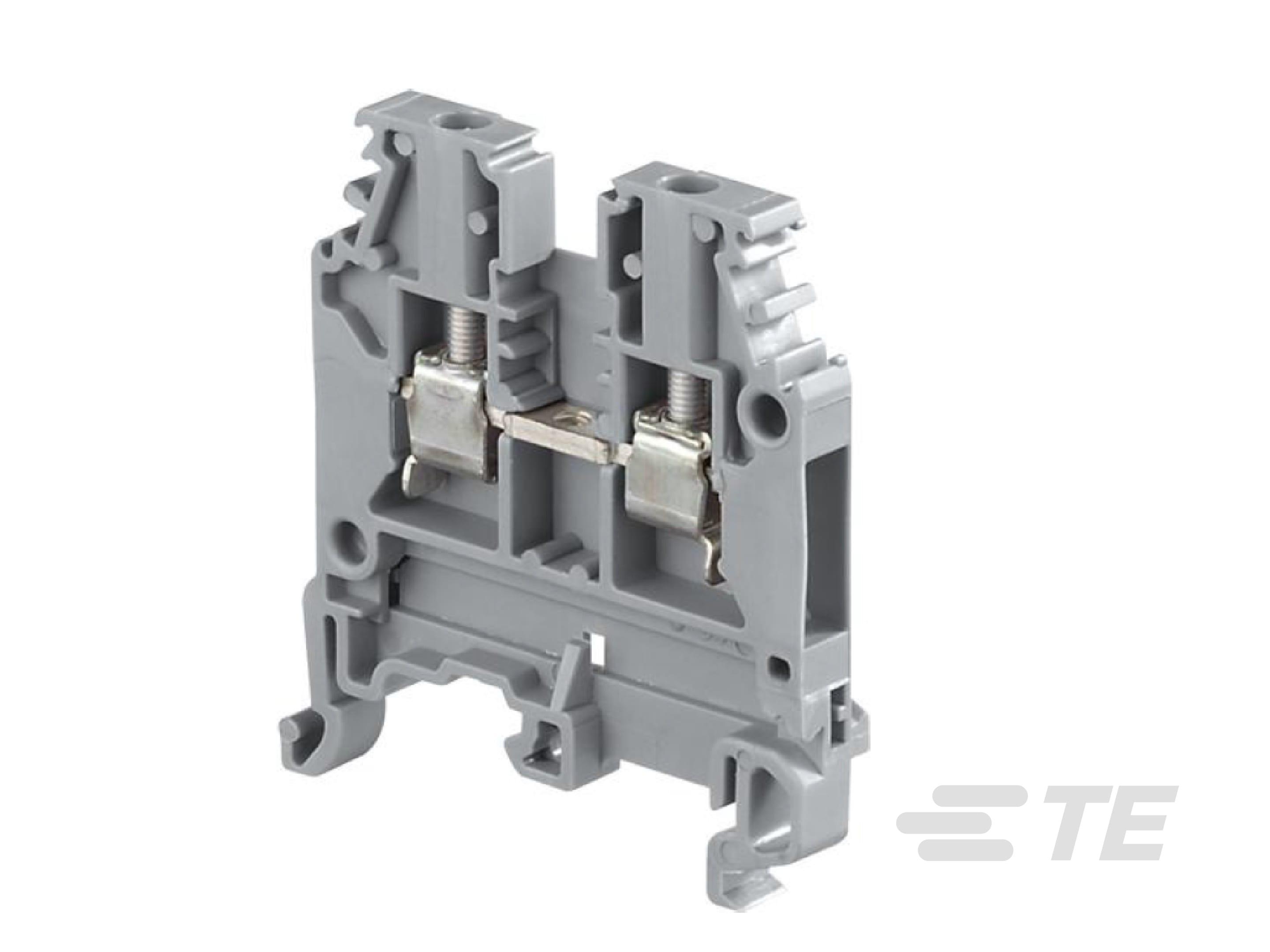

Image provided may only be a representation of
final product and may include optional equipment
ENTRELEC 1SNA115486R0300 Key Features
| Brand: | ENTRELEC |
|---|---|
| Part Number # : | 1SNA115486R0300 |
| SKU #: | 12398 |
| Amperage Rating: | 24, 24 A |
| Dimensions: | 44.5 mm H x 5 mm W x 40.5 mm L |
| Number of Poles: | 2 |
| Series: | SNA |
| Spacing: | 12 mm, 5, 5 mm |
| Temperature Rating (Degrees F): | -55 to 110, -55 to 110 deg C |
| Terminal Type: | Screw |
| Torque Rating: | 0.4 N-m, 0.6, 0.6 N-m |
| Type: | MA2.5/5 |
| Wire Size: | 12 AWG |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Polyamide |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB, TE Connectivity |
| UNSPSC: | 39121410 |
| UPC: | 00662019023090 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ENTRELEC 1SNA115486R0300
Brand: ENTRELEC
Part Number: 1SNA115486R0300
Additional Description: TEC -1SNA115486R0300 (S) MA2.5/5 Screw Clamp Terminal Blocks - Feed-through - Grey 011548603 1SNA115486R0300
1SNA115486R0300 Application
For Signal1SNA115486R0300 Item Features
- Screw clamp, stud technologies
- Available functions are feed-through, ground, disconnect, fuse, single to triple deck, test & measurement
- Power stud range available with stud-stud or stud-screw clamp technologies
- Ease the identification of functions inside cabinet thanks to large range of coloured variants
- The SNA connection technologies eliminate the need for retightening campaigns thanks dedicated anti-release system
- Avoid mounting and wiring errors thanks to asymmetrical design
- Allow installation flexibility with extra mounting options such as TS32 rail,panel or plate
- 50% faster assembly time thanks to the locking pin, 10 pre-assembled blocks plugged-in on rail at a time
- Elimination of faulty manouvers thanks to screw type jumper bars
1SNA115486R0300 Standards
UL 94V-0|IP20|EU RoHS Directive 2011/65/EU|EU ELV Directive 2000/53/EC|China RoHS 2 Directive MIIT Order No 32, 2016|EU REACH Regulation (EC) No. 1907/2006|PROP65SKU #12398Part Number #1SNA115486R0300UNSPSC39121410UPC00662019023090
