Part Number # 405281205000
SKU # 13019
Image Disclaimers Message
405281205000
Finder 405281205000
Part Number # 405281205000
SKU # 13019
$122.70 / 10Each
Typical price:$171.30 / Each
Finder 405281205000 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 405281205000 |
| SKU #: | 13019 |
| Amperage Rating: | 8 A |
| Coil Voltage: | 120 V AC, 120 VAC |
| Contact Form: | 2CO 2 Form C DPDT, 2CO-DPDT |
| Contact Rating: | 250/400 V AC, 250/400 VAC |
| Dimensions: | 25 mm H x 12.4 mm W x 29 in D |
| Display Type: | Mechanical |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 2 |
| Series: | 40 |
| Temperature Rating (Degrees F): | -40 to 85 deg C |
| Terminal Type: | Plug-In |
| Type: | Miniature |
| Country of origin: | IT |
| Mounting type: | Socket |
| Manufacturer Name: | FINDER |
| UNSPSC: | 39122335 |
| UPC: | 08012823134185 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$122.70 / 10Each
Typical price:$171.30 / Each
Quantity:

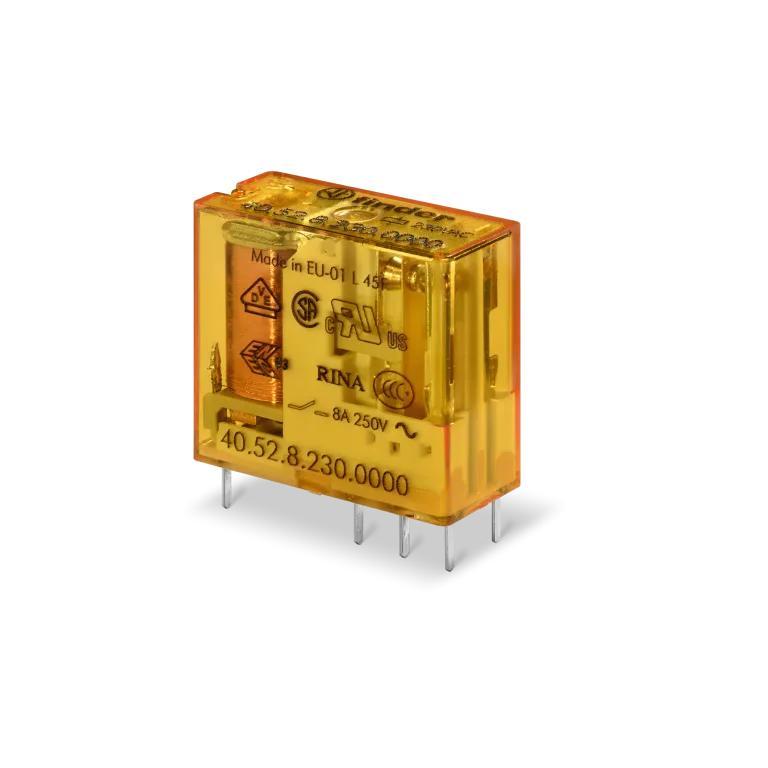

- Finder, 40.52.8.120.5000, Relay, Miniature, Series: 40, 8 A, 1.2 VA Power, 50/60 Hz Frequency, 120 V AC Coil, 2CO 2 Form C DPDT Contact Form, 250/400 VAC Contact, 2 Pole, Socket Mounting, Plug-In Terminal, Mechanical Display, -40 to 85 deg C, 25 mm H x 12.4 mm W x 29 in D Dimensions
405281205000 Application
Medical and dentistry, Control panels, Panels for electrical distribution, Toys, Automation for blinds, grilles and shutters, Door and gate openers, Electronic circuit boards, Vending machines405281205000 Item Features
- Variant with Cadmium free contacts
- Pin length 3.5 mm for PCB mounting
- Pin length 5.3 mm for plug-in relays
- For use with 95 Series sockets with push-in, screw or spring terminals for mounting on 35 mm rail EN 60715 or PCB
- For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules
- 8 mm, 6 kV 1.2/50 insulation between coil and contacts
405281205000 Standards
CCC Certified|CSA Certified|EAC Certified|IMQ Certified|LR Certified|RINA Certified|Compliance with glow wire test according to EN 60335-1SKU #13019Part Number #405281205000UNSPSC39122335UPC08012823134185
