Part Number # 1SVR500100R0000
SKU # 1551719
Image Disclaimers Message
1SVR500100R0000

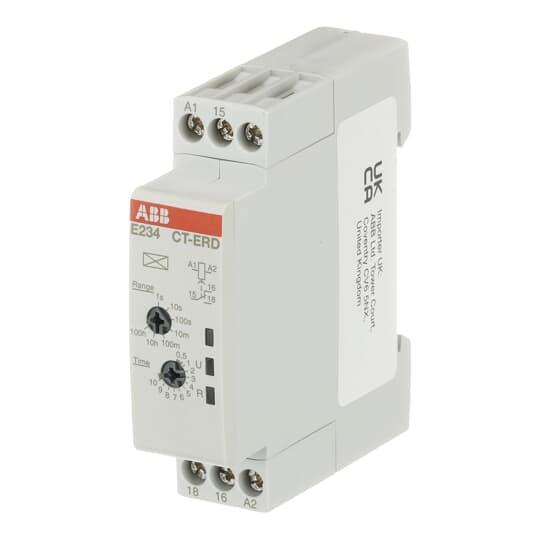

ABB 1SVR500100R0000
Part Number # 1SVR500100R0000
SKU # 1551719
$71.54 / Each
Typical price:$97.51 / Each
ABB 1SVR500100R0000 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR500100R0000 |
| SKU #: | 1551719 |
| Coil Voltage: | 24 to 240 V AC, 24 to 48 V DC, 24 to 240 VAC, 24 to 48 VDC |
| Contact Form: | 1CO 1 Form C SPDT, 1CO SPDT |
| Contact Rating: | B300 |
| Dimensions: | 70 mm H x 17.5 mm W x 63 mm D |
| Display Type: | LED |
| Enclosure Type: | IP20/IP50 |
| Operation Mode: | ON-Delay, On Delay |
| Series: | CT-D |
| Temperature Rating (Degrees F): | -20 to 60, -20 to 60 deg C |
| Time Setting: | 0.05 s to 100 hr |
| Type: | Electronic |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122329 |
| UPC: | 04013614350658 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$71.54 / Each
Typical price:$97.51 / Each
Quantity:
- ABB Timing Relay, Electronic, Series: CT-D, Operation Mode: On-Delay, 1CO 1 Form C SPDT Contact Form, 0.05 s to 100 hr Time Setting, 24 to 240 V AC, 24 to 48 V DC Coil, LED Display, IP20/IP50 Enclosure, -20 to 60 deg C, DIN Rail Mounting, 70 mm H x 17.5 mm W x 63 mm D Dimensions
1SVR500100R0000 Specifications
- With their MDRC profile and 17.5 mm W, the CT-D range timers are ideally suited for installation in distribution panels as well as for industrial applications where compact dimensions are required
- Single-function timer on delay
- 7 time ranges (0.05 s to 100 hr) in one device
- Light gray enclosure in RAL 7035
- 2 LEDs for the indication of operational states
- Screw terminal type
1SVR500100R0000 Application
For use to fit into all domestic installation and distribution panels and the wide input range allows use in applications worldwide1SVR500100R0000 Item Features
- With their MDRC profile and 17.5 mm W, the CT-D range timers are ideally suited for installation in distribution panels as well as for industrial applications where compact dimensions are required
- Single-function timer on delay
- 7 time ranges (0.05 s to 100 hr) in one device
- Light gray enclosure in RAL 7035
- 2 LEDs for the indication of operational states
- Screw terminal type
1SVR500100R0000 Standards
cUL Listed|UL 508|CAN/CSA C22.2 No. 14|EAC|CCC Certified|RMRS Approved|CE Certified|RCM Certified|RoHS CompliantSKU #1551719Part Number #1SVR500100R0000UNSPSC39122329UPC04013614350658
