Part Number # 788-512
SKU # 1739163
Brand: Wago
788-512

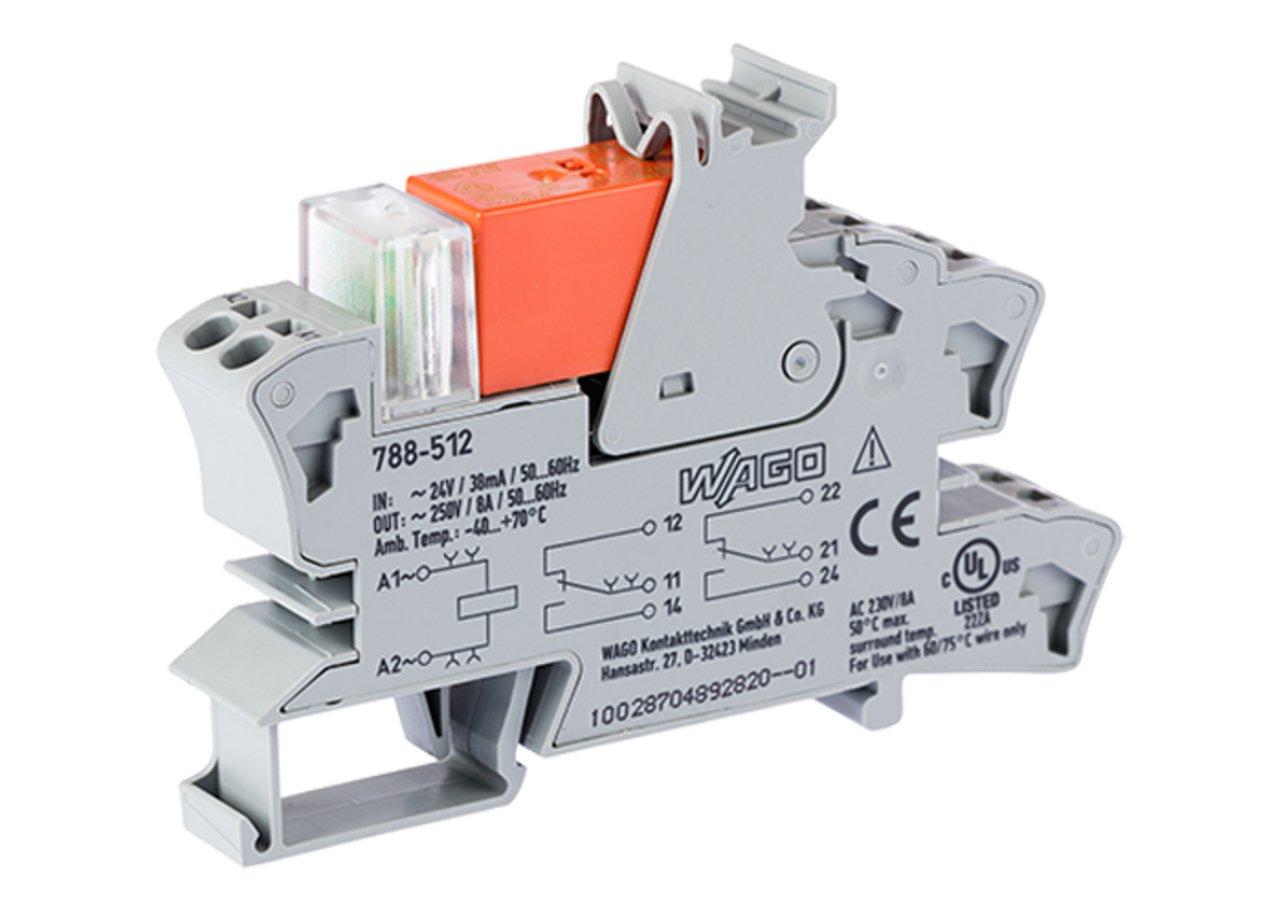

WAGO 788-512
Part Number # 788-512
SKU # 1739163
$26.20 / Each
Wago 788-512 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 788-512 |
| SKU #: | 1739163 |
| Connection technology: | Push-in CAGE CLAMP® |
| Country of origin: | CN |
| Depth: | 86 mm / 3.386 inch |
| Mechanical life: | 30 x 106 switching operations |
| Mounting type: | DIN-35 rail |
| Number of changeover/switchover contacts: | 2 |
| Protection type: | IP20 |
| Rated voltage: | 250 V |
| Solid conductor: | 0.34 … 2.5 mm² / 22 … 14 AWG |
| Standards/Specifications: | EN 61010-2-201; EN 61810-1; EN 61373; GL; UL 508 |
| Status indicator: | Red LED |
| Switching capacity: | AC-15: 3 A / AC 250 V; DC-13: 2 A / DC 24 V |
| Switching frequency with/without load (max.): | 6 min-1 / 1200 min-1 |
| Weight: | 47.662 g |
| Width: | 15 mm / 0.591 inch |
| UNSPSC: | 39122323 |
| UPC: | 04045454424145 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$26.20 / Each
Quantity:
WAGO 788-512
Brand: WAGO
Part Number: 788-512
Additional Description: WAGO-788-512 DPDT RELAY & SOCKET 24VAC 51182798
SKU #1739163Part Number #788-512UNSPSC39122323UPC04045454424145
Image provided may only be a representation of final product and may include optional equipment
