Part Number # 415290240010
SKU # 1789294
Image Disclaimers Message
415290240010
Finder 415290240010
Part Number # 415290240010
SKU # 1789294
$66.60 / 20Each
Typical price:$93.00 / Each
Finder 415290240010 Key Features
| Brand: | Finder |
|---|---|
| Part Number # : | 415290240010 |
| SKU #: | 1789294 |
| Amperage Rating: | 8 A |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Form: | 2CO 2 Form C DPDT, 2CO-DPDT |
| Contact Rating: | 250/400 V AC, 250/400 VAC |
| Dimensions: | 15.7 mm H x 12.5 mm W x 29 mm L |
| Display Type: | Mechanical |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 2 |
| Series: | 41 |
| Temperature Rating (Degrees F): | -40 to 85 deg C |
| Terminal Type: | PC Pin |
| Type: | Low Profile |
| Country of origin: | ES |
| Mounting type: | PCB |
| Manufacturer Name: | FINDER |
| UNSPSC: | 39122335 |
| UPC: | 08012823198491 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$66.60 / 20Each
Typical price:$93.00 / Each
Quantity:

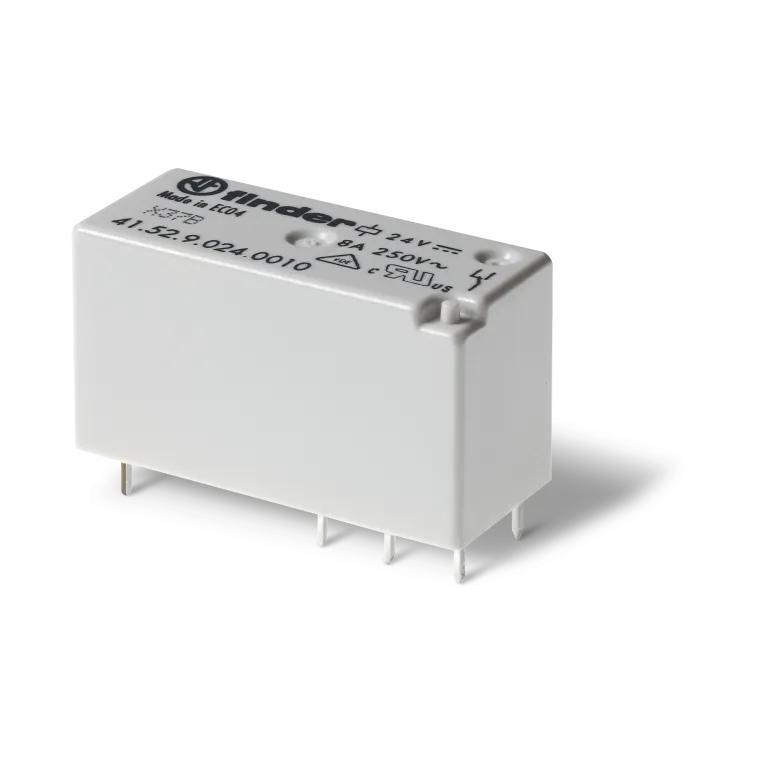

- Finder, 41.52.9.024.0010, Relay, Low Profile, Series: 41, 8 A, 0.75 VA Power, 50/60 Hz Frequency, 24 V DC Coil, 2CO 2 Form C DPDT Contact Form, 250/400 VAC Contact, 2 Pole, PC Pin Terminal, Mechanical Display, -40 to 85 deg C, 15.7 mm H x 12.5 mm W x 29 mm L Dimensions
415290240010 Application
Medical and dentistry, Industrial robots, Building automation, Control systems, Timers and lighting controls, Door and gate openers, Electronic circuit board, Vending machines415290240010 Item Features
- AC and DC coil
- 8 mm, 6 kV 1.2/50 between coil and contacts
- Cadmium free contacts
- Flux proof RT II standard
- Suitable for direct mount on a printed circuit or via a socket, and for mount on a 35 mm rail EN 60715 on sockets with box clamp or screwless terminals
415290240010 Standards
EAC Certified|ENEC Certified|VDE Certified|RINA Certified|cRUus Listed|UL ListedSKU #1789294Part Number #415290240010UNSPSC39122335UPC08012823198491
