Part Number # HBL5253
SKU # 18625
HBL5253
Hubbell HBL5253
Part Number # HBL5253
SKU # 18625
$119.65 / 5Each
Typical price:$182.50 / Each
Hubbell HBL5253 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | HBL5253 |
| SKU #: | 18625 |
| Amperage Rating: | 15 A |
| Dimensions: | 3.28 x 1.33 x 1.05 in |
| Horsepower: | 1/2 hp |
| NEMA Rating: | 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Side Wired |
| Type: | 1-Phase Compact Duplex Extra Grounding Heavy Duty Standard Sized Screw Mount |
| Country of origin: | US |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585014159 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$119.65 / 5Each
Typical price:$182.50 / Each
Quantity:
- Hubbell Wiring Device-Kellems, HBL5253, Straight Blade Receptacle, 1-Phase Compact Duplex Extra Grounding Heavy Duty Standard Sized Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Brown, 3.28 x 1.33 x 1.05 in Dimensions
HBL5253 Item Features
- Triple wipe contacts
- Brass Mounting Strap
- Slender/compact design
HBL5253 Standards
CSA File No. E2186|NEMA WD1/WD5/WD6|UL 498 File No. E2186|CSA C22.2 No. 42 File No. 285|Federal Specification W-C-596SKU #18625Part Number #HBL5253UNSPSC39121406UPC00783585014159

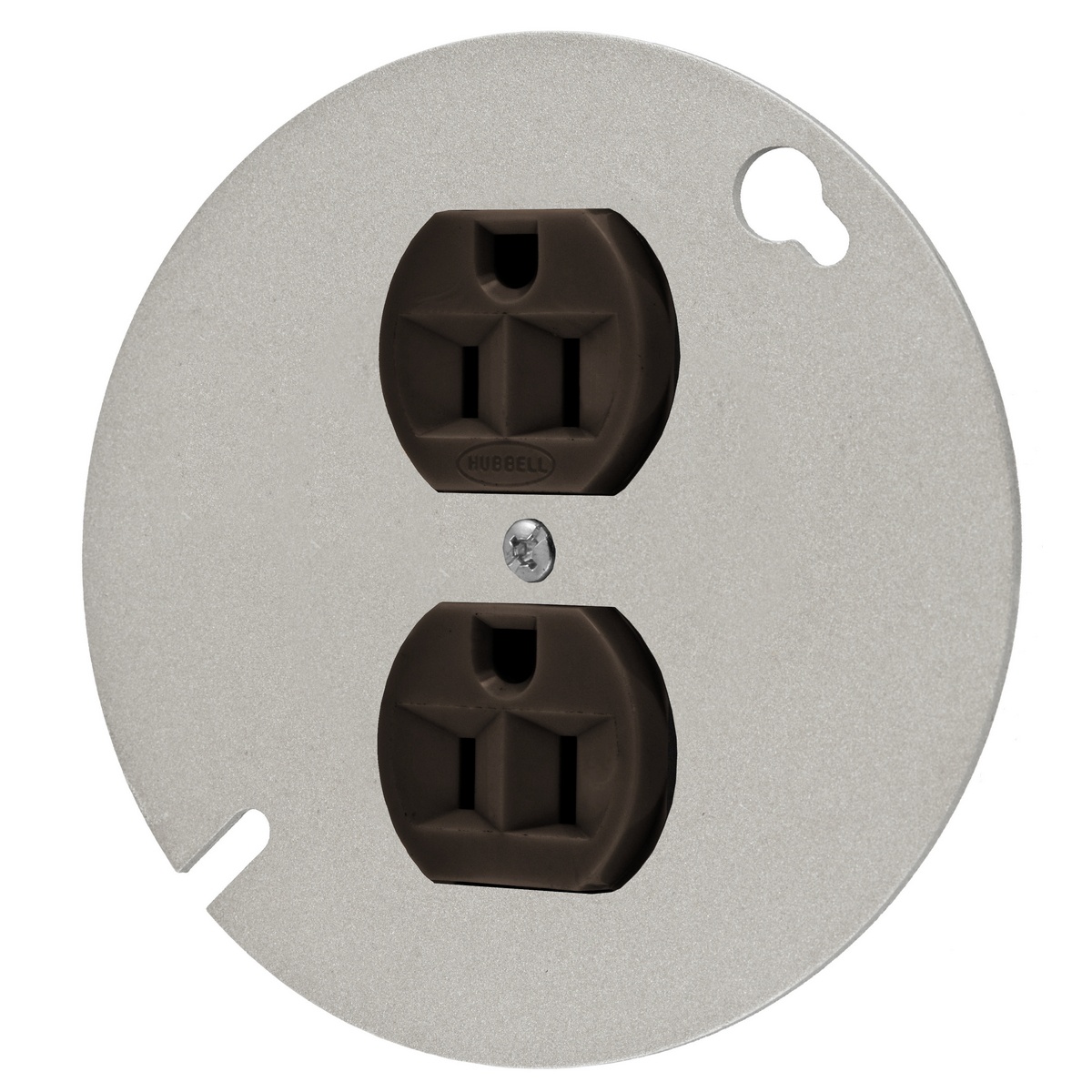

Image provided may only be a representation of final product and may include optional equipment
