Part Number # MV10-10FLX
SKU # 188
Image Disclaimers Message
Brand: 3M
MV10-10FLX

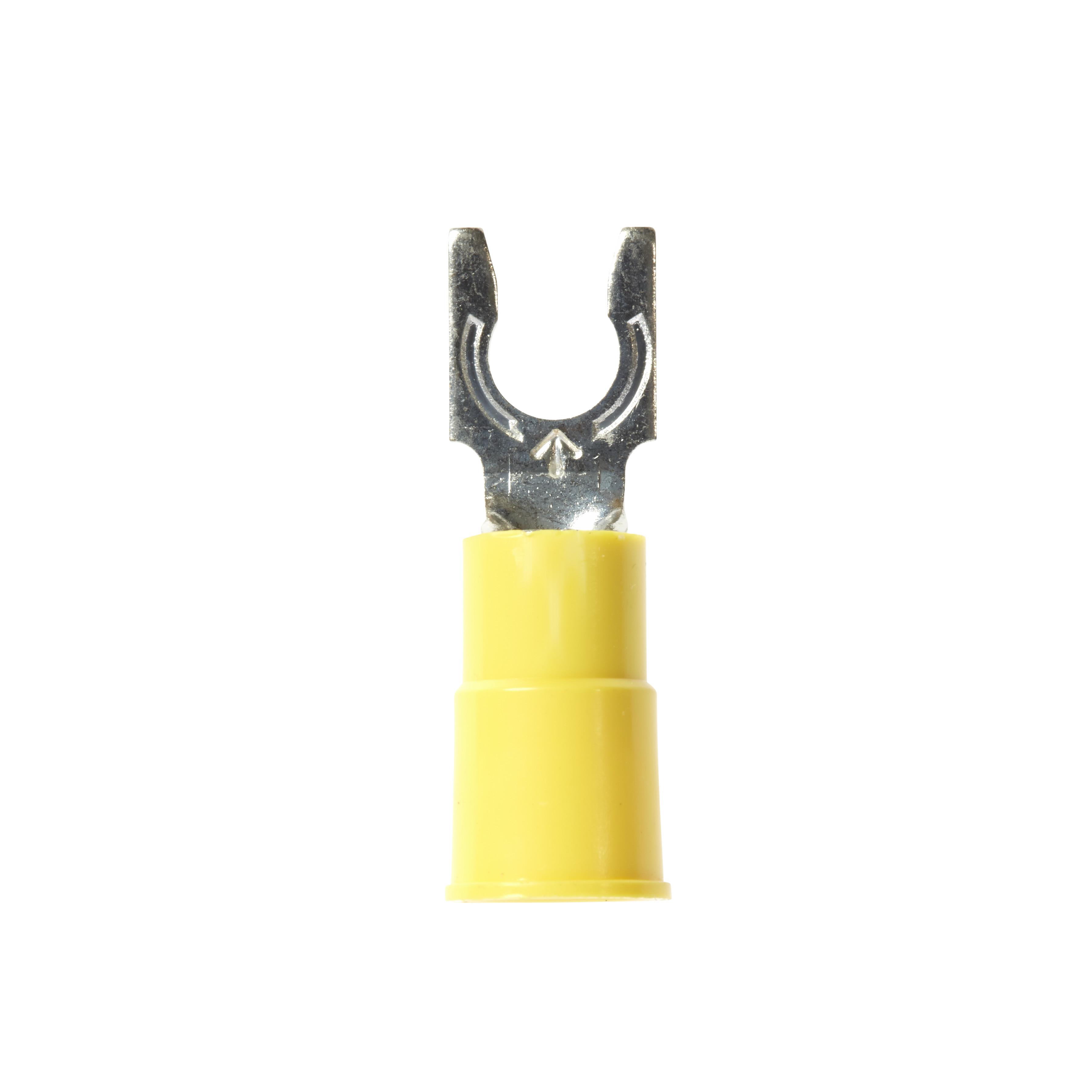

3M MV10-10FLX
Part Number # MV10-10FLX
SKU # 188
$47.25 / 50Each
Typical price:$60.00 / Each
3M MV10-10FLX Key Features
| Brand: | 3M |
|---|---|
| Part Number # : | MV10-10FLX |
| SKU #: | 188 |
| Temperature Rating (Degrees F): | -40 to 221, -40 to 221 deg F |
| Tongue Size: | 0.32 in W x 0.04 in THK |
| Tongue Type: | Fork |
| Type: | Insulated Locking |
| Color: | Yellow |
| Length: | 1.03, 1.03 in |
| Material: | Vinyl |
| Barrel Size: | 0.135 in ID x 0.25 in L |
| Barrel Type: | Brazed Seam |
| Conductor Size: | 12 to 10, 12 to 10 AWG |
| Conductor Type: | Stranded Copper |
| Country of origin: | US |
| Finish: | Tin Plated |
| Manufacturer Name: | 3M |
| Specifications: | 1/4 in Dia Max Insulation, 0.28 in Clearance |
| UNSPSC: | 31200000 |
| UPC: | 00051128588307 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$47.25 / 50Each
Typical price:$60.00 / Each
Quantity:
- Scotchlok, 7010320678, Locking Fork, Insulated, Stranded Copper Conductor, 12 to 10 AWG Conductor, #10 Stud, 1.03 in Length, Brazed Seam Barrel, 0.135 in ID x 0.25 in L Barrel, Fork Tongue, 0.32 in W x 0.04 in THK Tongue, 600/1000 V AC, Specifications: 1/4 in Dia Max Insulation, 0.28 in Clearance, -40 to 221 deg F, Vinyl, Tin Plated, Yellow
MV10-10FLX Application
Building Wire, Fixtures or Luminaires and Signs ApplicationsMV10-10FLX Item Features
- Crimp termination
- Free hanging (in-line) mounting
- 0.36 in maximum lock width
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- Spring-like tongue firmly fits around the stud
- Electrolytic copper construction offers good conductivity
- Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)
MV10-10FLX Standards
LR22190 CSA Certified|RoHS Compliant|UL E23438SKU #188Part Number #MV10-10FLXUNSPSC31200000UPC00051128588307
