3M 130C-2X30FT Key Features
Brand: 3M
Part Number # 130C-2X30FT
SKU #21
Backing Material: Rubber
Material Type: Rubber
Maximum Operating Temperature: 194 deg F
Thickness: 30 mil
Type: Linerless Premium Grade
Voltage Rating: 69 kV
Color: Black
Country of origin: US
Dielectric strength: 750 V/mil
Length: 30 ft
Width: 2 in
Manufacturer Name: 3M
UNSPSC: 31201500
UPC: 00054007417545
$65.83 / Each
Typical price:$82.02 / Each
SKU # 21
Part Number # 130C-2X30FT
3M 130C-2X30FT
Brand: 3M
Part Number: 130C-2X30FT
Additional Description: 3M -130C-2X30FT 130C 2" X 30' TAPE 2ESA 12/CS LINERLESS 7000006091 CASE OF 12 ROLLS

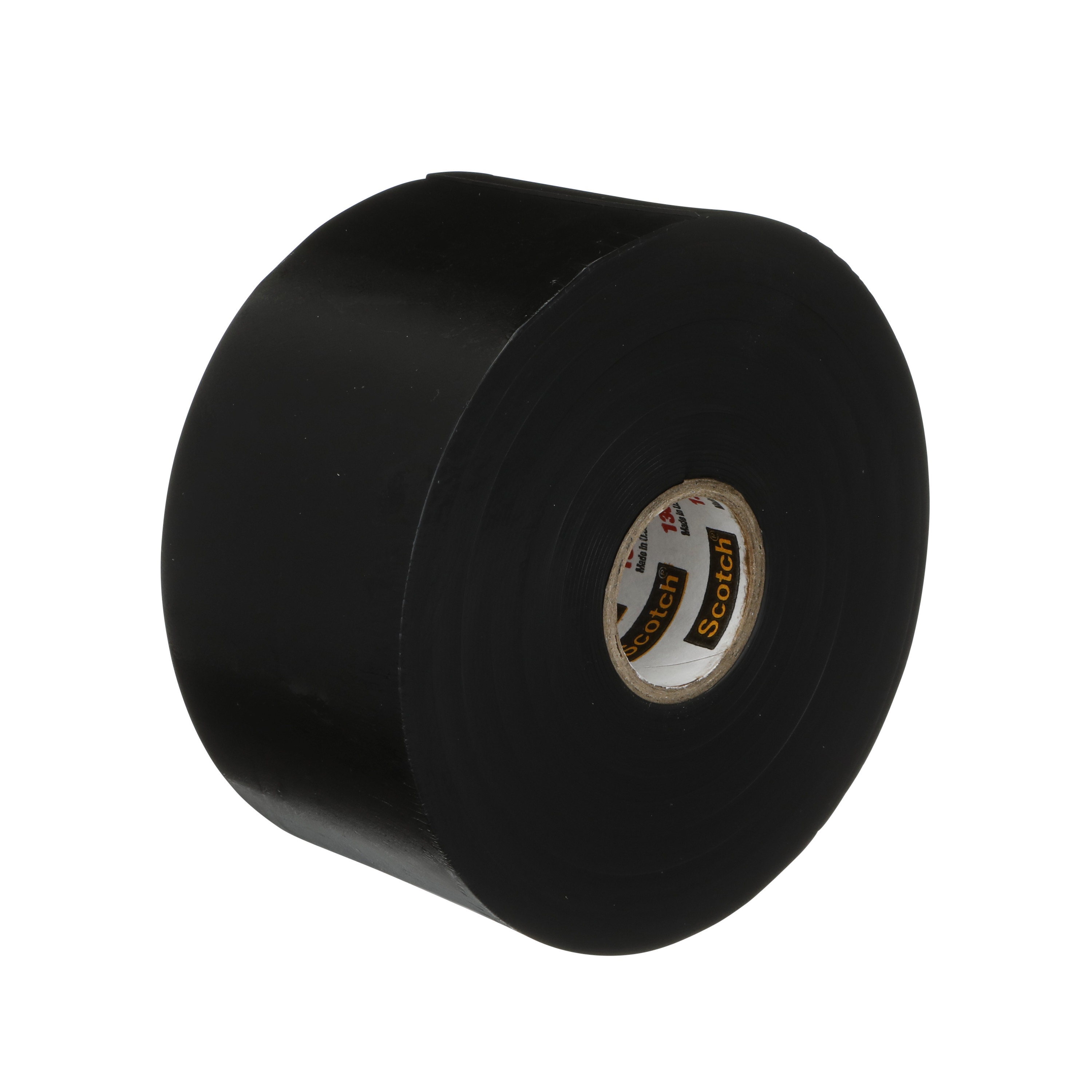

Catalog Description: Scotch® Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 °F (90 °C) with emergency overload up to 266 °F (130 °C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.
130C-2X30FT Application
For low and high voltage (through 69 kV) applications, moisture-sealing electrical connection, bus bar insulation, end-sealing high voltage cables, motor leads and Jacket repairs130C-2X30FT Item Features
- Highly conformable, rubber resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
- Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
- Suitable for splicing and terminating cables and wires
- Provides an excellent thermal dissipation of splice heat
- Tensile strength rating of 17 lb/in meets professional electrical standards
- Linerless, self-bonding, primary insulating tape rated through 69 kV
- High thermal conductivity
- Ethylene propylene base
- Excellent physical and electrical properties
- Designed to insulate splices and terminate cables whose overload temperatures can reach 130 deg C
- Physical and electrical properties unaffected by degree of stretch
- Compatible with common, solid dielectric cable insulation
- Uniform tape unwind from roll
- Small roll size (OD)
130C-2X30FT Standards
RoHS Compliant|HH-I-3825BSKU #21Part Number #130C-2X30FTUNSPSC31201500UPC00054007417545
