Part Number # LC2D25F7
SKU # 2133124
Image Disclaimers Message
LC2D25F7

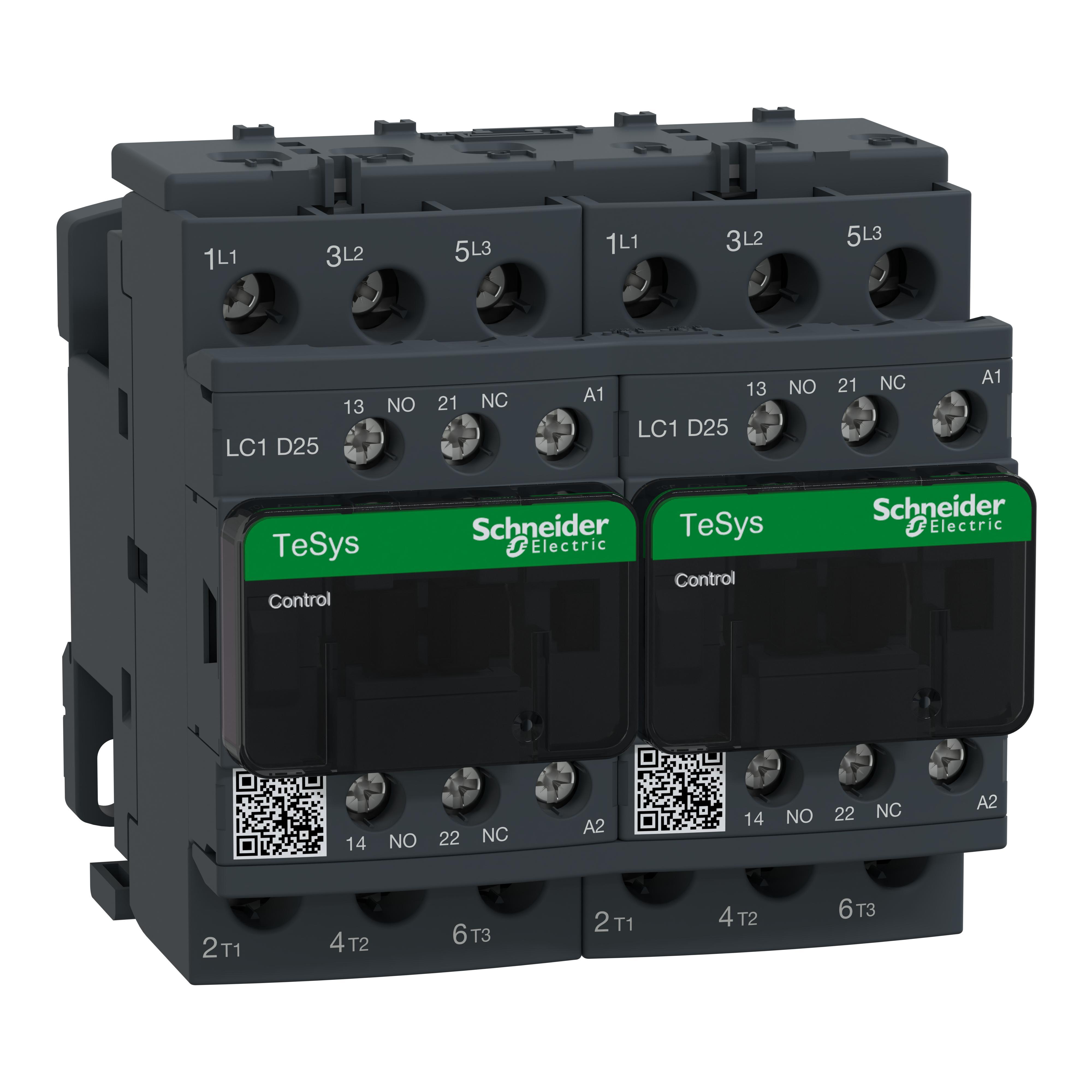

Schneider Electric LC2D25F7
Part Number # LC2D25F7
SKU # 2133124
$444.86 / Each
Typical price:$453.30 / Each
Schneider Electric LC2D25F7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC2D25F7 |
| SKU #: | 2133124 |
| Coil Power Rating: | 7.5/7.7 VA, 70 VA Inrush, 7/7.5 VA Hold-In |
| Coil Voltage: | 110, 110/690 V AC, 300 V DC, 110/690 VAC, 300 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 10/60 A at 575 V AC, 40/60 at 575 V AC, 10/60 A at 575 VAC, 40/60 at 575 VAC, 25 A at 575 VAC |
| Dimensions: | 90 mm W x 86 mm D x 82-1/2 mm H, 90 mm W x 86 mm D x 85 mm H |
| Enclosure Type: | IP2X |
| Frequency Rating: | 50/60, 60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 15000000, 3600 Cycles/hr |
| Operating Temperature: | -20 to 60/-40 to 70 deg C, -5 to 60 |
| Series: | LC1D |
| Size: | 85/90/92 mm |
| Terminal Type: | Screw Clamp |
| Type: | D-Line Mechanical Standard, LC1D D-Line Standard |
| Wattage: | 1.2/3.2 W, 11 |
| Connection type: | Screw Clamp |
| Country of origin: | ID |
| Mounting type: | Rail/Surface, Surface |
| Power factor: | 0.75 Inrush, 0.3 Hold-In |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901207504 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$444.86 / Each
Typical price:$453.30 / Each
Quantity:
Schneider Electric LC2D25F7
Brand: Schneider Electric
Part Number: LC2D25F7
Additional Description: SQD -LC2D25F7 TeSys REVERS CTR 25A AC3 11KW110VAC COIL
Catalog Description: TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 25 A - 110 V AC coil
LC2D25F7 Application
For motor control and resistive loadsLC2D25F7 Item Features
- Without built-in bi-directional peak limiting diode suppressor coil technology
- 40 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current
- https://www.youtube.com/embed/COFeQr6wcKc
LC2D25F7 Standards
DNV;CSA;CCC;UL;GL;LROS (Lloyds register of shipping);BV;RINA;GOST;UKCA;CBSKU #2133124Part Number #LC2D25F7UNSPSC39121529UPC00785901207504
