Part Number # T31403
SKU # 2133859
Image Disclaimers Message
Belden T31403 Key Features
| Brand: | Belden |
|---|---|
| Part Number # : | T31403 |
| SKU #: | 2133859 |
| Amperage Rating: | 218 A |
| Conductor Size: | 14 AWG |
| Conductor Type: | Bare Copper |
| Jacket Color: | Black |
| Jacket Material: | PVC |
| Number of Conductors: | 3 |
| Outside Diameter: | 0.69 in |
| Strands: | 7 |
| Temperature Rating (Degrees F): | 90 deg C |
| Type: | Teck 90 Interlocked Unshielded |
| Insulation material: | XLPE |
| Manufacturer Name: | Omni Cable |
| UNSPSC: | 26121545 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

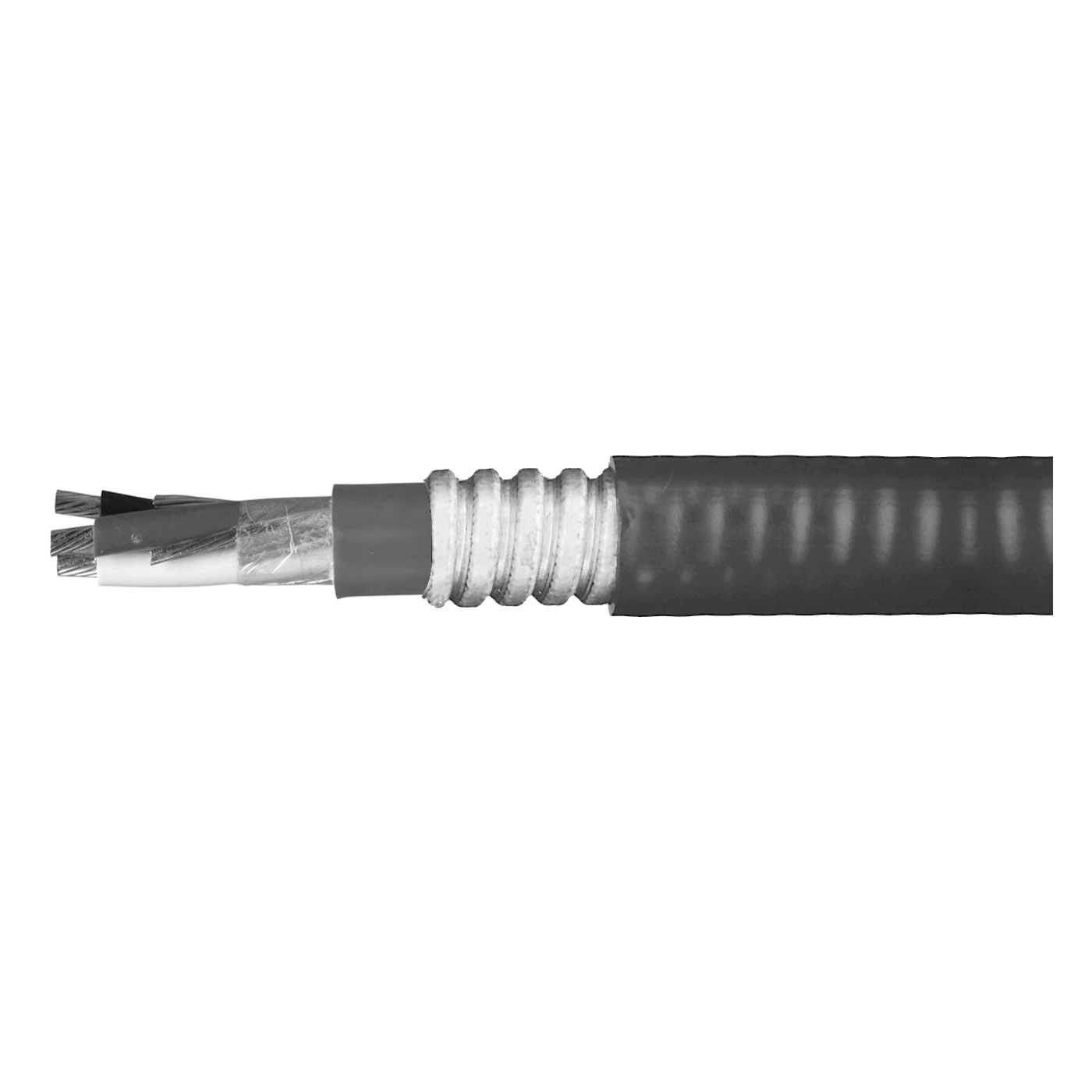

- Omni Cable Armored Cable, Teck 90 Interlocked Unshielded, 600 V AC, 218 A, 3 Conductors, Bare Copper Conductor, 14 AWG Conductor, 0.69 in OD, 7 Strands, XLPE Insulation, PVC Jacket, Black Jacket, 90 deg C
T31403 Application
For use in ventilated, non-ventilated and ladder cable trays, direct earth burial or raceways, exposed or concealed wiring in wet, damp or dry location, wet or dry locationsT31403 Item Features
- Bare copper class B stranding compressed concentric round to ASTM B8 conductor
- Conductor consists of one uninsulated stranded bare copper conductor ground
- Flame-retardant, moisture and sunlight-resistant polyvinyl chloride inner and outer jacket
- https://www.youtube.com/watch?v=AjCOPFQWY5w
T31403 Standards
UL 1581|IEEE 1202|CSA FT1 and FT4|CSA C22.2 No. 131 and 174|OSHA CompliantSKU #2133859Part Number #T31403UNSPSC26121545UPC
