1783820000
Weidmuller 1783820000
Part Number # 1783820000
SKU # 2136593
$534.00 / 100ea
Typical price:$593.30 / ea
Weidmuller 1783820000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1783820000 |
| SKU #: | 2136593 |
| Amperage Rating: | 24 A |
| Dimensions: | 2.598 in H x 0.24 in W x 1.909 in D |
| Series: | Z Series |
| Temperature Rating (Degrees F): | -50 to 120 deg C |
| Terminal Size: | 2.5 sq-mm |
| Type: | 3-Tier |
| Wire Size: | 26 to 12 AWG |
| Connection type: | Screw |
| Country of origin: | CZ |
| Material: | Wemid |
| Mounting type: | Snap-Fit |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121410 |
| UPC: | 04032248211494 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$534.00 / 100ea
Typical price:$593.30 / ea
Quantity:

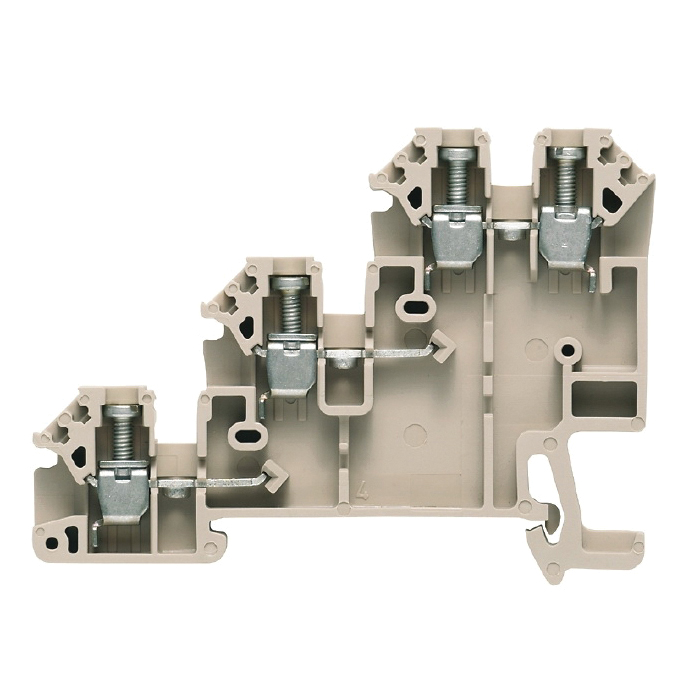

- Klippon Initiator and Actuator Terminal Block, 3-Tier, Series: Z Series, 250 V AC, 24 A, 26 to 12 AWG Wire, 7 mm Wire Strip Length, 2.5 sq-mm Terminal, Snap-Fit Mount, Screw, -50 to 120 deg C, Wemid, Dark Beige, 2.598 in H x 0.24 in W x 1.909 in D
1783820000 Item Features
- Z-standard with wire cross-sections from 0.05 to 35 mm sq-mm and top entry wire insertion parallel to the screwdriver actuators
- Z-roof with wire cross-sections from 0.13 to 16 mm sq-mm, dimensions reduced by up to 36% and oblique operation direction
- Easy to use thanks to the large clamping space for the wire connections from 0.08 to 35 sq-mm, only one wire can be connected in each clamping unit
- The practical connection aligns the wire insertion direction and the screwdriver operating points, creating a top connection system for which no special tools are needed and which comes with an integrated test point
- UL 94 flammability rating V-0
- 3 number of potentials, 3 number of levels, 1 number of clamping points per level
- Right open sides
- 0.6 x 3.5 mm blade
- 1.33 mOhm volume-resistance
- One end without connector
- 4 kV rated impulse withstand voltage
- DLI 2.5 DB type
- https://www.youtube.com/watch?v=DBdk5eXPQb8
1783820000 Standards
CSA Certified|UL File No. E60693 Listed|IEC 60947-7-1|RoHS CompliantSKU #2136593Part Number #1783820000UNSPSC39121410UPC04032248211494
Image provided may only be a representation of final product and may include optional equipment
