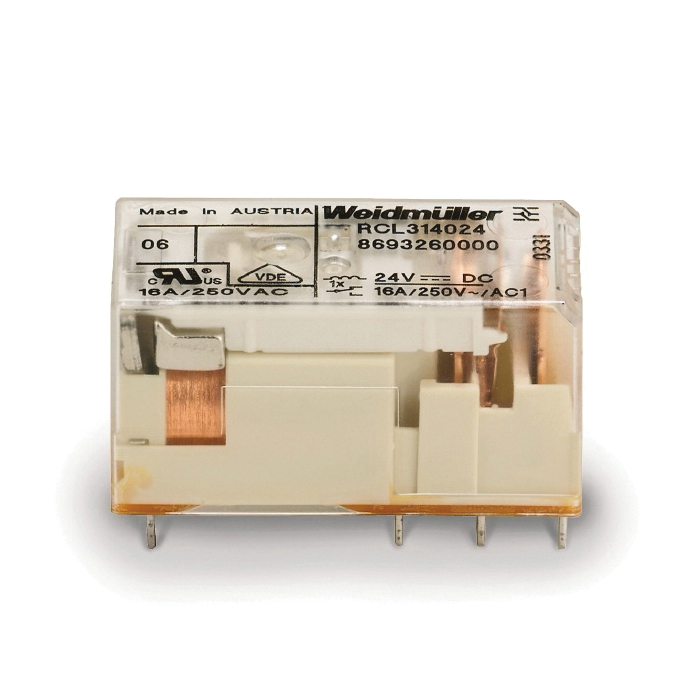

8693260000
Weidmuller 8693260000
Part Number # 8693260000
SKU # 2147632
$109.00 / 20Each
Weidmuller 8693260000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 8693260000 |
| SKU #: | 2147632 |
| Amperage Rating: | 16.7 mA/16 A |
| Coil Voltage: | 24 V DC |
| Contact Form: | 1CO 1 Form C |
| Dimensions: | 29 mm H x 12.7 mm W x 15.7 mm D |
| Enclosure Type: | IP20 |
| Series: | TERMSERIES RCL |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Plug-In |
| Type: | Miniature |
| Country of origin: | AT |
| Mounting type: | Through Hole |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39122325 |
| UPC: | 04032248364718 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$109.00 / 20Each
Quantity:
- Weidmuller Industrial Relay, Miniature, Series: TERMSERIES RCL, 16.7 mA, 16 A, 400 mW Power, 24 V DC Coil, 1CO 1 Form C Contact Form, Through Hole Mounting, Plug-In Terminal, IP20 Enclosure, -40 to 70 deg C, 29 mm H x 12.7 mm W x 15.7 mm D Dimensions
8693260000 Specifications
- 16.7 mA input rated current, 16 A output continuous current
8693260000 Application
For capacitive and inductive loads8693260000 Includes
Spare Relay, Base, Partition Plates, Cross Connections and Power Feed Modules8693260000 Item Features
- 16.7 mA input rated current, 16 A output continuous current
8693260000 Standards
RoHS Compliant|CSA 249409-2426937|cULus File No. E224238|IEC 61810-1|UL 508|EAC Certified|VDE Approved|UL 94 V-2 Flammability RatingSKU #2147632Part Number #8693260000UNSPSC39122325UPC04032248364718
Image provided may only be a representation of final product and may include optional equipment
