Part Number # LC1D093BD
SKU # 2163005
Schneider Electric LC1D093BD Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC1D093BD |
| SKU #: | 2163005 |
| Coil Power Rating: | 5.4 W |
| Contact Configuration: | 3NO |
| Contact Rating: | 10/60 A at 600 V AC, 16/60 A at 600 V AC |
| Dimensions: | 45 mm W x 95 mm D x 80 mm H |
| Enclosure Type: | Open |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Operating Cycles: | 3600 Cycles/hr |
| Operating Temperature: | -5 to 60/-40 to 70 deg C |
| Series: | LC1D |
| Size: | 45/80/95 mm |
| Terminal Type: | Spring |
| Wattage: | 0.2/1.56 W |
| Mounting type: | Rail/Surface |
| UNSPSC: | 39121529 |
| UPC: | 00785901197614 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Schneider Electric Square D TeSys D IEC Contactor, Series: LC1D, 690 V AC, 24/300 V DC Coil, 9/25 A Maximum Load Current, 5.4 W Coil, 3 Pole, 50/60 Hz Frequency, 0.2/1.56 W Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/60 A at 600 VAC, 16/60 A at 600 VAC Contact, Spring Connection, 45/80/95 mm Size, Spring Terminal, Open Enclosure, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 45 mm W x 95 mm D x 80 mm H Dimensions
LC1D093BD Application
Industry, Infrastructure, Building, Resistive Load and Motor Control ApplicationsLC1D093BD Item Features
- New modern look and feel of all machines
- Easier to install and operate with multi-standard screws
- Digital customer experience for technical documents
- Maintenance guide via EcoStruxureTM Facility Expect
- https://www.youtube.com/embed/vlEODblcQoo
LC1D093BD Standards
BV Certified|CCC Certified|CSA C22.2 No. 14|DNV Certified|ECCN: EAR99|EN 60947-4-1|EN 60947-5-1|GL Certified|GoST-R Certified|Green Premium|IEC 60947-4-1|IEC 60947-5-1|Lloyds Register Certified|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov|REACH Compliant|RINA Certified|RoHS Compliant|UL 508|WEEE CompliantSKU #2163005Part Number #LC1D093BDUNSPSC39121529UPC00785901197614

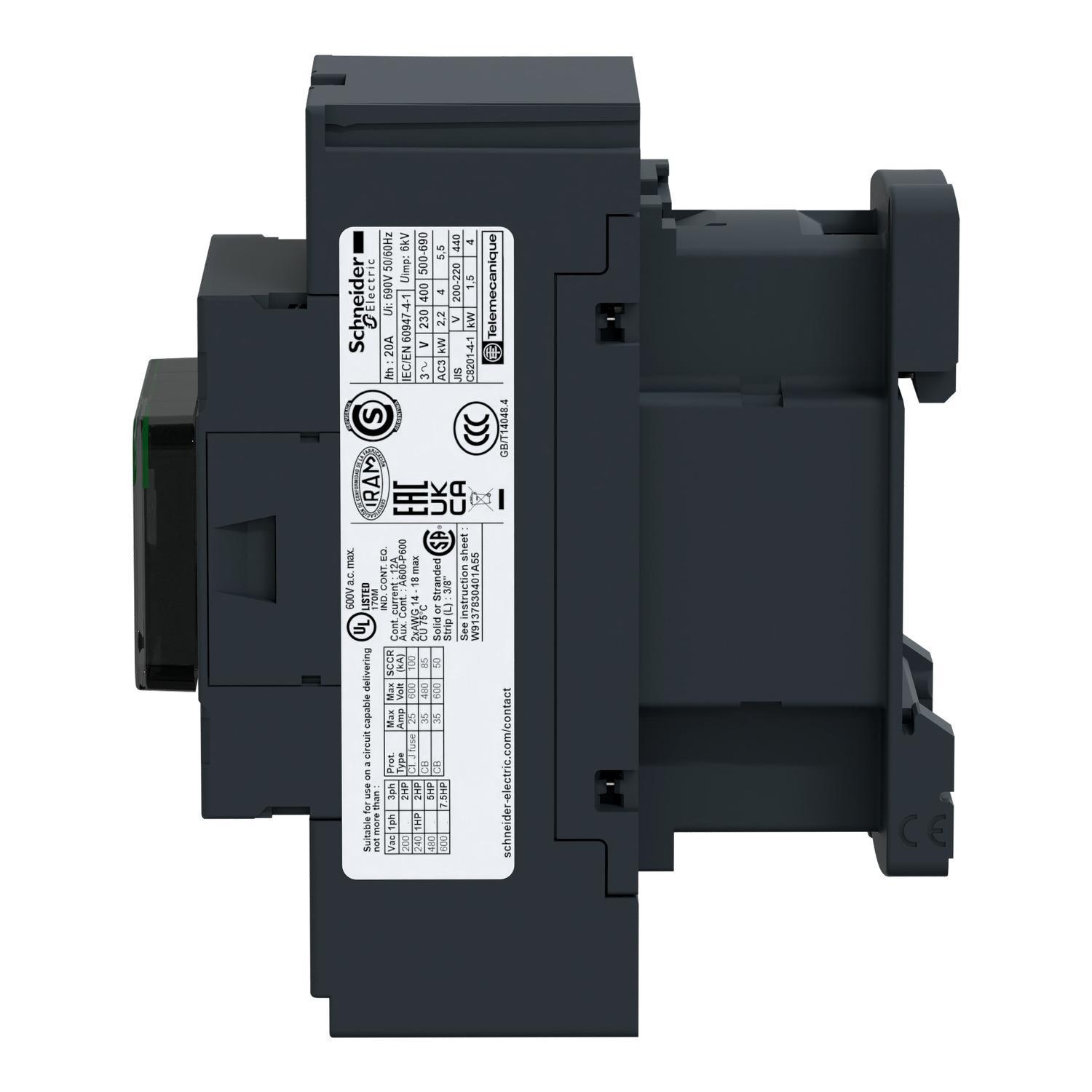

Image provided may only be a representation of final product and may include optional equipment
