PEPPERL + FUCHS SJ5-N Key Features
| Brand: | PEPPERL + FUCHS |
|---|---|
| Part Number # : | SJ5-N |
| SKU #: | 2176938 |
| Contact Configuration: | NC |
| Sensing Distance: | 6 mm |
| Sensing Method: | Inductive |
| Size: | 15 mm L x 17 mm W x 10 mm H |
| Switching Speed: | 2000 Hz |
| Temperature Rating (Degrees F): | -13 to 212 deg F |
| Type: | Slot |
| Connection type: | Lead |
| Material: | PBT |
| Output type: | NAMUR |
| Manufacturer Name: | Pepperl+Fuchs |
| UNSPSC: | 39122230 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$105.28 / Each
Quantity:
- Pepperl+Fuchs Proximity Sensor, Slot, Inductive Sensing Method, 6 mm Sensing Distance, NAMUR Output, NC, 8.2 V DC, Lead, 2000 Hz Switching Speed, 15 mm L x 17 mm W x 10 mm H, -13 to 212 deg F, PBT
SJ5-N Specifications
- 5 mm W slot
- 500 mm flexible leads LiY connection
- 0.14 sq-mm core cross-section
- IP67 degree of protection
- Usable up to SIL 3 acc. to IEC 61508
SJ5-N Item Features
- 5 mm W slot
- 500 mm flexible leads LiY connection
- 0.14 sq-mm core cross-section
- IP67 degree of protection
- Usable up to SIL 3 acc. to IEC 61508
SJ5-N Standards
NAMUR EN 60947-5-6:2000|IEC 60947-5-6:1999|FM Approved|cULus|cCSAus Listed|CCC CertifiedSKU #2176938Part Number #SJ5-NUNSPSC39122230UPC

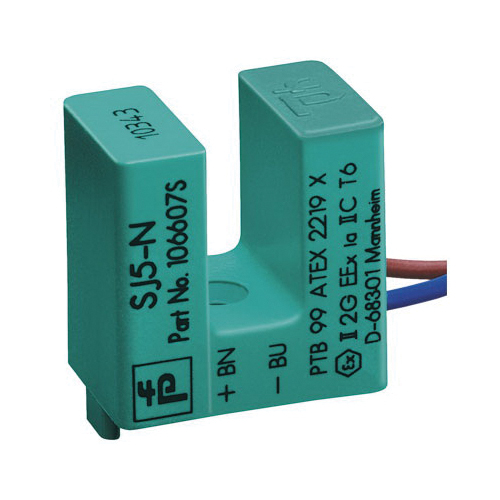

Image provided may only be a representation of final product and may include optional equipment
