Part Number # LC2D50AG7
SKU # 2185315
Image Disclaimers Message
LC2D50AG7

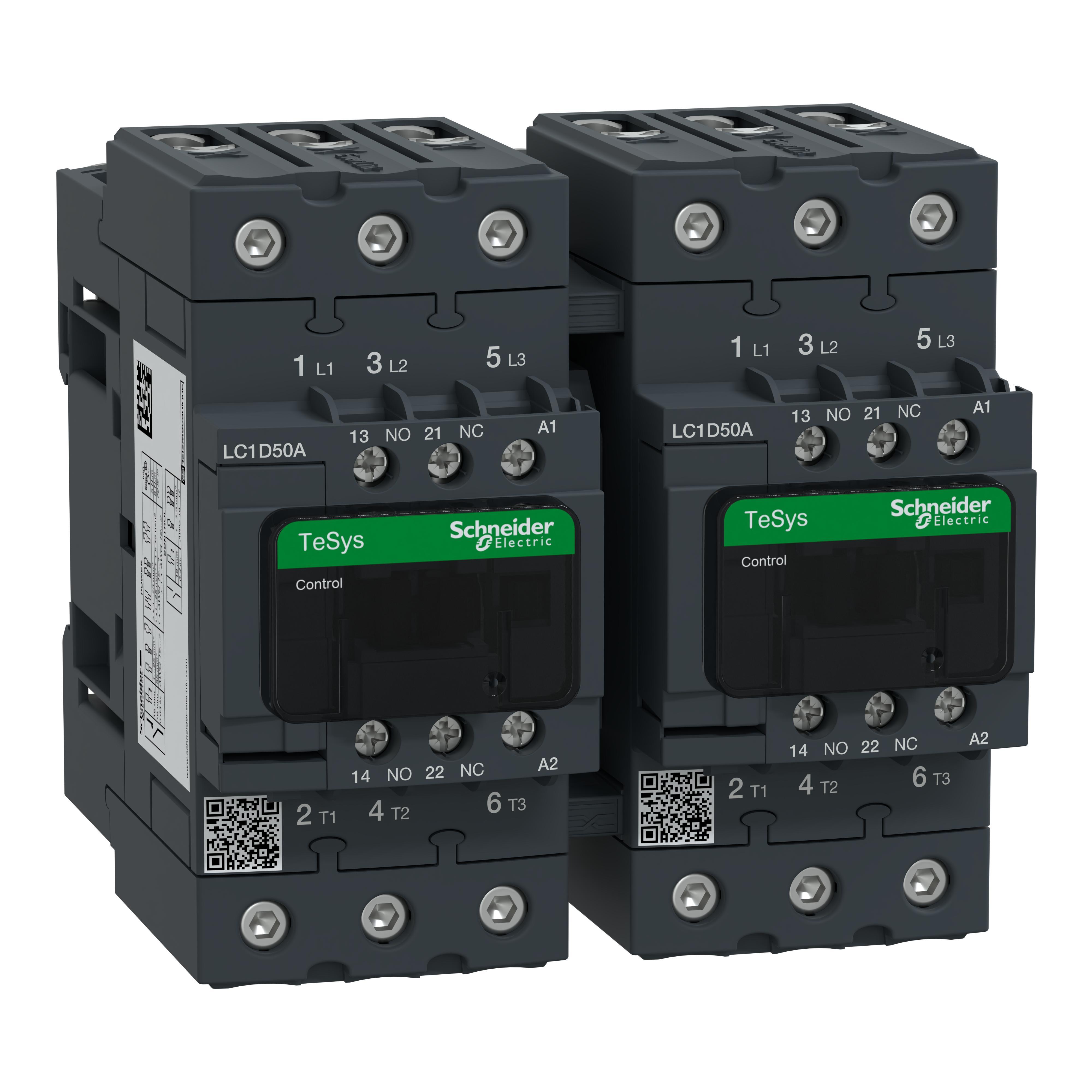

Schneider Electric LC2D50AG7
Part Number # LC2D50AG7
SKU # 2185315
$735.52 / Each
Schneider Electric LC2D50AG7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC2D50AG7 |
| SKU #: | 2185315 |
| Coil Power Rating: | 13/16 VA, 200/220/245 VA Inrush, 20/22/26 VA Hold-In |
| Coil Voltage: | 120, 120/690 V DC, 300 V DC, 120/690 VDC, 300 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 10/60 A at 690 V AC, 60 to 80 A at 690 V AC, 10/60 A at 690 VAC, 60 to 80 A at 690 VAC, 50 A at 690 VAC |
| Dimensions: | 120 mm W x 119 mm D x 122 mm H, 165 mm W x 142 mm D x 132 mm H |
| Enclosure Type: | IP2X |
| Frequency Rating: | 50/60, 60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles/hr, 6000000 |
| Operating Temperature: | -5 to 60, -5 to 60/-40 to 70 deg C |
| Series: | LC1D |
| Size: | 119/120/122 mm |
| Terminal Type: | Screw Clamp |
| Type: | D-Line Mechanical Standard, LC1D D-Line Standard |
| Wattage: | 30, 9.6/3.7 W |
| Connection type: | Screw Clamp |
| Country of origin: | FR, US |
| Mounting type: | Rail/Surface, Surface |
| Power factor: | 0.75 Inrush, 0.3 Hold-In |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901565451 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$735.52 / Each
Quantity:
- Schneider Electric EverLink Square D TeSys D IEC Contactor, D-Line Mechanical Standard, Series: LC1D, 120/690 V DC, 300 V DC Coil, 50/80 A Maximum Load Current, 13/16 VA Coil, 3 Pole, 60 Hz Frequency, 9.6/3.7 W Wattage, Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/60 A at 690 VAC, 60 to 80 A at 690 VAC Contact, Power Factor: 0.75 Inrush, 0.3 Hold-In, Screw Clamp Connection, 119/120/122 mm Size, Screw Clamp Terminal, IP2X Enclosure, 3600 cycles/hr Operating Cycles, -5 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 120 mm W x 119 mm D x 122 mm H Dimensions
LC2D50AG7 Application
For motor control and resistive loadsLC2D50AG7 Item Features
- Without built-in bi-directional peak limiting diode suppressor coil technology
- 80 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional-free air thermal current
- https://www.youtube.com/embed/ZspiS_-OK5U
LC2D50AG7 Standards
UL;CSA;RINA;GOST;CCC;DNV;LROS (Lloyds register of shipping);GL;BV;UKCASKU #2185315Part Number #LC2D50AG7UNSPSC39121529UPC00785901565451
