Part Number # 750-1405
SKU # 2187697
Image Disclaimers Message
750-1405

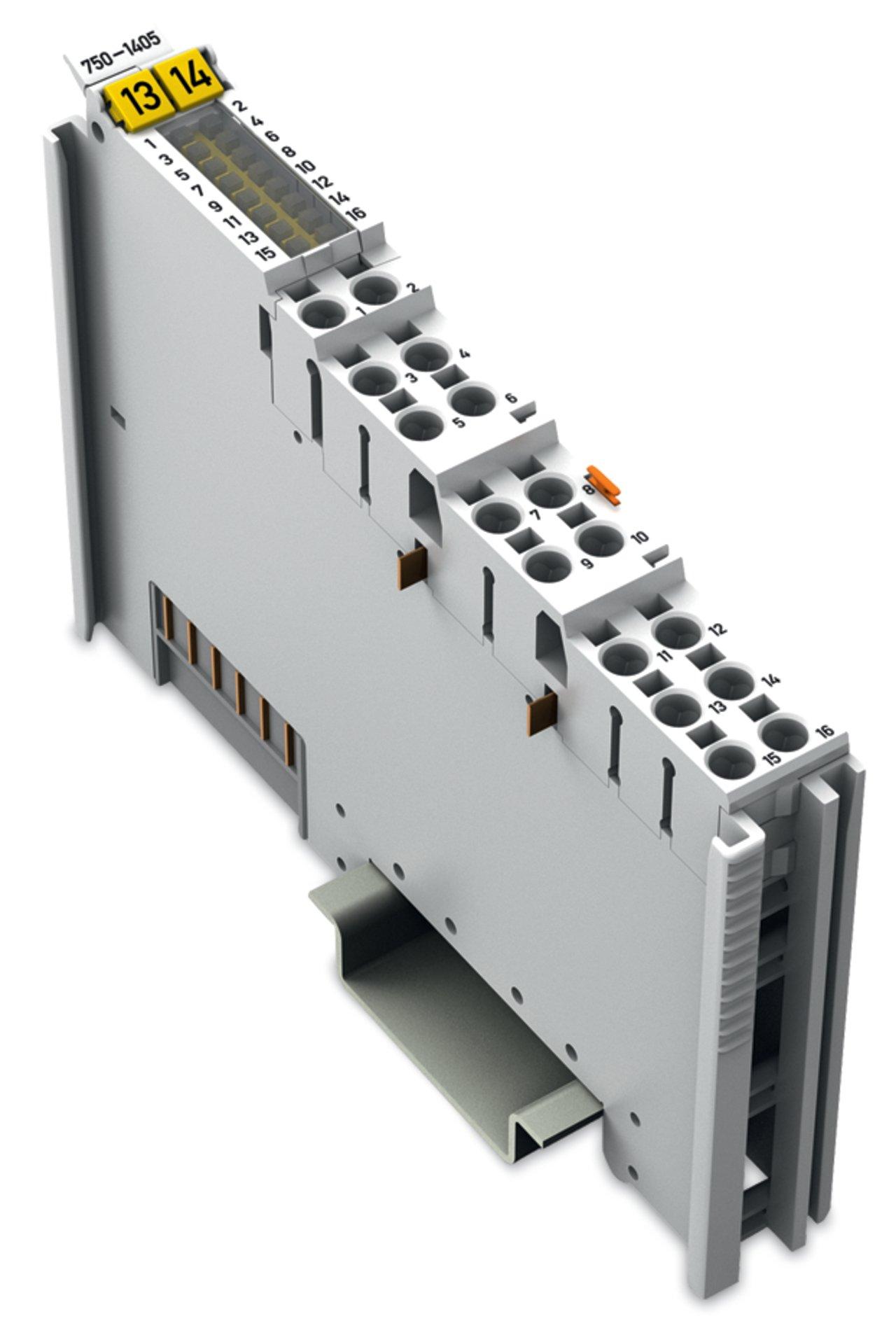

Wago 750-1405
Part Number # 750-1405
SKU # 2187697
$238.77 / Each
Typical price:$253.60 / Each
Wago 750-1405 Key Features
| Brand: | Wago |
|---|---|
| Part Number # : | 750-1405 |
| SKU #: | 2187697 |
| Dimensions: | 100 mm H x 12 mm W x 69 mm D |
| Electrical Connections: | Plug-In |
| Enclosure Type: | IP20 |
| Input Type: | Digital |
| Series: | 750 |
| Temperature Rating (Degrees F): | 0 to 55 deg C |
| Type: | 16 Channel |
| Color: | Dark gray, Light gray |
| Connection technology: | 16 x Push-in CAGE CLAMP® |
| Country of origin: | DE |
| Depth: | 69 mm / 2.717 inch |
| Height: | 100 mm / 3.937 inch |
| Housing material: | Polycarbonate, polyamide 6.6 |
| Input data width (internal) (max.): | 16 bit |
| Isolation: | 500 V system/field |
| Material: | Polycarbonate/Polyamide 6.6 |
| Mounting position: | Horizontal (standing/lying); vertical |
| Mounting type: | DIN Rail, DIN-35 rail |
| Number of digital inputs: | 16 |
| Protection type: | IP20 |
| Sensor connection: | 16 x (1-wire) |
| Signal type: | Voltage |
| Solid conductor: | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Total number of channels (module): | 16 |
| Vibration resistance: | 4g per IEC 60068-2-6 |
| Weight: | 46.531 g |
| Width: | 12 mm / 0.472 inch |
| Manufacturer Name: | WAGO Corporation |
| UNSPSC: | 32151702 |
| UPC: | 04045454905590 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$238.77 / Each
Typical price:$253.60 / Each
Quantity:
- WAGO, 750-1405, Input Module, 16 Channel, Series: 750, Digital Input, Plug-In Electrical Connections, IP20 Enclosure, 0 to 55 deg C, DIN Rail Mounting, Polycarbonate/Polyamide 6.6, Dark Gray, 100 mm H x 12 mm W x 69 mm D DimensionsSKU #2187697Part Number #750-1405UNSPSC32151702UPC04045454905590
