Part Number # LC2D40AF7
SKU # 2188913
Image Disclaimers Message
LC2D40AF7

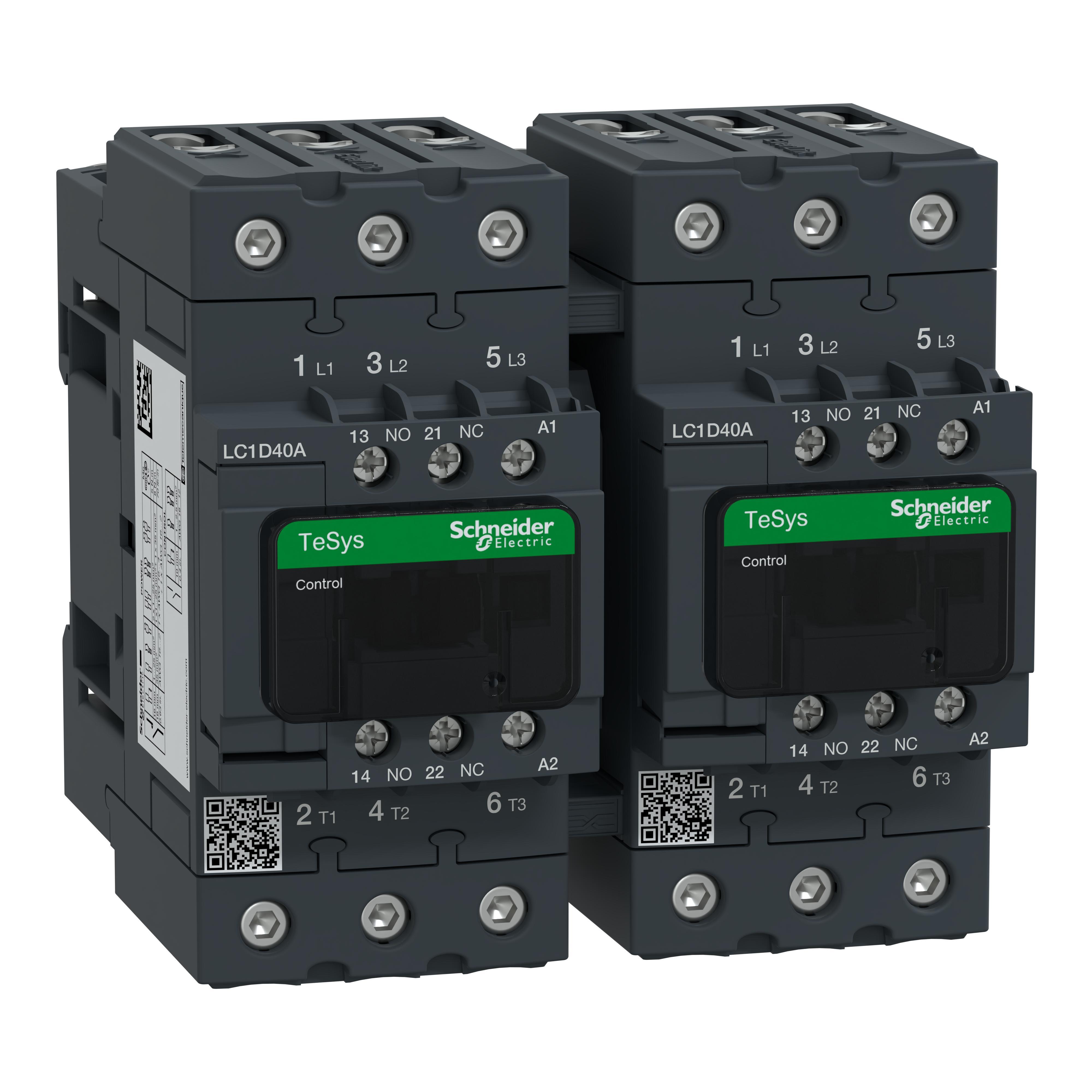

Schneider Electric LC2D40AF7
Part Number # LC2D40AF7
SKU # 2188913
$665.41 / Each
Schneider Electric LC2D40AF7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC2D40AF7 |
| SKU #: | 2188913 |
| Coil Power Rating: | 30, 30 hp |
| Coil Voltage: | 110, 110 V AC, 110 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | 40 A at 440 V AC, 40 A at 440 VAC |
| Dimensions: | 4.69 in W x 4.72 in D x 4.8 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 6000000, 6000000 Cycles |
| Operating Temperature: | -4 to 140, -4 to 140 deg F |
| Terminal Type: | Screw Clamp |
| Type: | LC1D D-Line |
| Wattage: | 5.4/2.4, 5.4/2.4 kW |
| Connection type: | Screw Clamp |
| Country of origin: | FR, US |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901562498 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$665.41 / Each
Quantity:
- Schneider Electric TeSys D EverLink IEC Contactor, LC1D D-Line, 110 VAC Coil, 60 A Maximum Load Current, 30 hp Coil, 3 Pole, 50/60 Hz Frequency, 5.4/2.4 kW Wattage, Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 40 A at 440 V AC Contact, Screw Clamp Connection, Screw Clamp Terminal, IP20 Enclosure, 6000000 Cycles Operating Cycles, -4 to 140 deg F Operating, Surface Mounting, 4.69 in W x 4.72 in D x 4.8 in H Dimensions
LC2D40AF7 Application
For motor control and resistive loadsLC2D40AF7 Item Features
- Pre-assembled with reversing power busbar
- 6 kV conforming to IEC 60947 rated impulse withstand voltage
- III overvoltage category
- 60 A at 140 deg F power circuit, 10 A at 140 deg F signaling circuit conventional free air thermal current
- 800 A at 440 VAC power circuit conforming to IEC 60947/140 A AC signaling circuit conforming to IEC 60947-5 1/250 A DC signaling circuit conforming to IEC 60947-5 1 IRMS rated making capacity
- 800 A at 440 VAC power circuit conforming to IEC 60947 rated breaking capacity
- 80 A gG at 690 VAC coordination type 2-power circuit/80 A gG at 690 VAC coordination type 1 power circuit/10 A gG signaling circuit conforming to IEC 60947-5-1 associated fuse rating
- At 50 Hz, Ith 60 A for power circuit average impedance
- Mechanical interlock
- 4 to 19 ms opening/12 to 26 ms closing operating time
- 3600 cycles/hr at 140 deg F operating rate
- Without built-in suppressor module coil technology
- 140 VA at 68 deg F 60 Hz, 160 VA at 68 deg F 50 Hz inrush power
- 13 VA at 68 deg F 60 Hz, 15 VA at 68 deg F 50 Hz hold-in power consumption
- 4 to 5 W heat dissipation
- 25 to 400 Hz signaling circuit frequency
- 5 mA minimum switching current
- 17 VAC signaling circuit minimum switching voltage, TH protective treatment
- 1.5 ms on de-energization (between NC and NO contacts)/1.5 ms on energization (between NC and NO contacts) non-overlap time, >10 MOhm signaling circuit insulation resistance
- -40 to 158 deg F permissible ambient air temperature around the device, -76 to 176 deg F storage temperature
- https://www.youtube.com/embed/ZspiS_-OK5U
LC2D40AF7 Standards
UL;CSA;RINA;GOST;CCC;DNV;LROS (Lloyds register of shipping);GL;BV;UKCASKU #2188913Part Number #LC2D40AF7UNSPSC39121529UPC00785901562498
