1780290000
Weidmuller 1780290000
Part Number # 1780290000
SKU # 2200589
$168.50 / 50Each
Typical price:$194.00 / Each
Weidmuller 1780290000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1780290000 |
| SKU #: | 2200589 |
| Dimensions: | 11.6 mm H x 69.24 mm W x 12 mm D |
| Number of Positions: | 13 |
| Type: | Board Connection Closed Side High Current |
| UNSPSC: | 31163101 |
| UPC: | 04032248165612 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$168.50 / 50Each
Typical price:$194.00 / Each
Quantity:

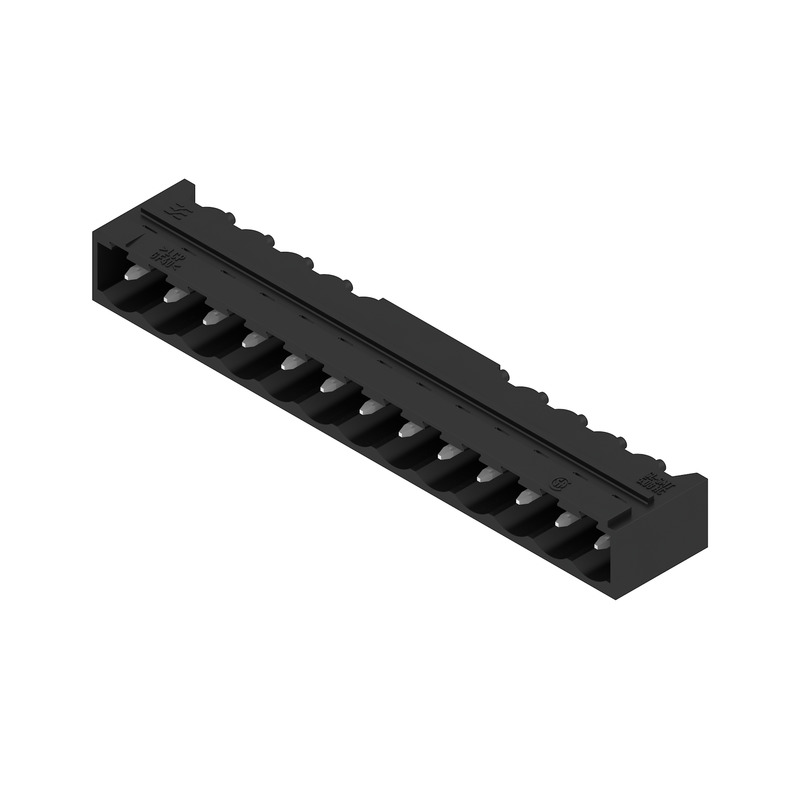

- Weidmuller OMNIMATE Signal PCB Plug-In Connector, Board Connection Closed Side High Current, Series: BL/SL 5.08 Series, 13 Positions, 1 Row, 5.08 mm Pitch/Row Spacing, PCB Mounting, 300/400 V, Male Header Connector, THT/THR Solder Termination, CuMg Contact, LCP GF Housing Material, -50 to 100 deg C, Black, 11.6 mm H x 69.24 mm W x 12 mm D Dimensions
1780290000 Item Features
- High temperature-resistant pin header, packed in box or tape
- On tape, with 1.5 mm solder pin, optimized for automatic assembly
- 3.2 mm solder pin suitable for reflow and wave soldering
- The pin headers provide space for labelling and can be coded
- 400 V IEC, 300 V UL
- https://youtu.be/Ifq_mdNjF4g
1780290000 Standards
RoHS Compliant|IEC 60664-1, IEC 61984|UL File No. E60693 Recognized|UL 1059|CSA File No. 200039-1176845|UL 94 V-0 Flammability Rating|EAC CertifiedSKU #2200589Part Number #1780290000UNSPSC31163101UPC04032248165612
Image provided may only be a representation of final product and may include optional equipment
