Part Number # AH1202V
SKU # 2209359
Image Disclaimers Message
Arrowhart AH1202V Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AH1202V |
| SKU #: | 2209359 |
| Actuator: | Toggle |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 3.28 in H x 1.31 in W x 1.05 in D |
| Environmental Conditions: | -4 to 140 deg F Operating Temperature |
| Mounting: | Wall |
| Number of Poles: | 2 |
| Operating Cycles: | 30000, 30000 Cycles |
| Series: | AH1200 |
| Terminal Type: | Back/Side Wired Screw, Screw |
| Type: | Automatic Grounding Premium Specification Grade |
| Color: | Ivory |
| Country of origin: | CN |
| Material: | Polycarbonate |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122211 |
| UPC: | 00032664734434 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

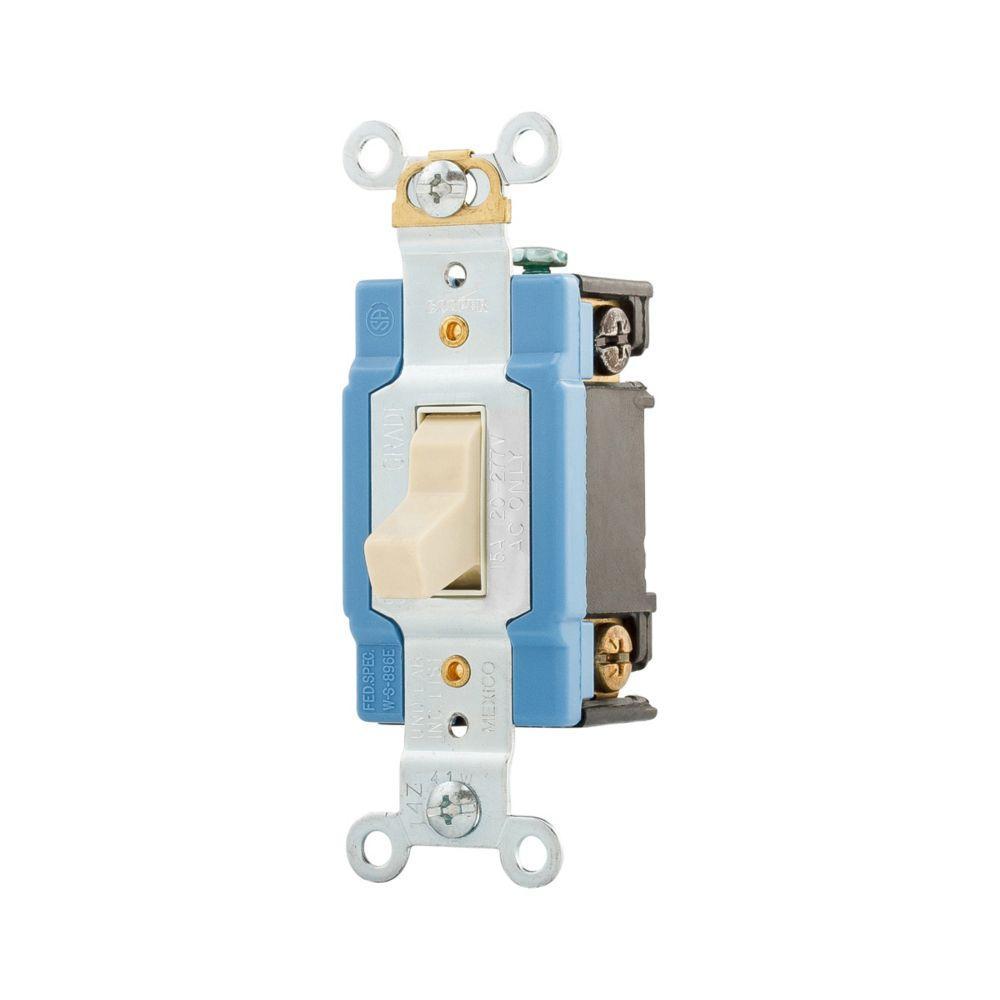

- EATON Arrow Hart Toggle Switch, Automatic Grounding Premium Specification Grade, Series: AH1200, 120/277 V AC, 15 A, 1/2 hp Power, 2 Pole, Toggle Actuator, Wall Mounting, Screw Terminal, 30000 Cycles Operating Cycles, Polycarbonate, Ivory, Environmental Conditions: -4 to 140 deg F Operating Temperature, 3.28 in H x 1.31 in W x 1.05 in D Dimensions
AH1202V Application
Industrial ApplicationsAH1202V Item Features
- 14 to 10 AWG terminal accommodation
- 2.4 in L screw to screw
- 1/2 hp at 120 VAC, 2 hp at 240 VAC
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
AH1202V Standards
UL 20 File No. E18704|CSA C22.2 No. 111 File No. 10016/6241-05|cULus/FULS Listed|Federal Specification WS-896-E|UL94 V-2 Flammability Rating|NAFTA Compliant|NOM 426SKU #2209359Part Number #AH1202VUNSPSC39122211UPC00032664734434
