Part Number # LSXA3K
SKU # 2211481
Image Disclaimers Message
Brand: Honeywell
LSXA3K

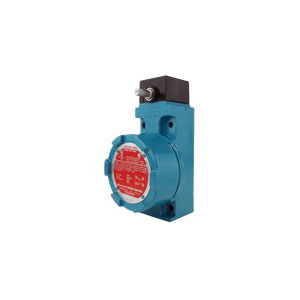

Honeywell LSXA3K
Part Number # LSXA3K
SKU # 2211481
$4047.90 / 10Each
Typical price:$4679.30 / Each
Honeywell LSXA3K Key Features
| Brand: | Honeywell |
|---|---|
| Part Number # : | LSXA3K |
| SKU #: | 2211481 |
| Action: | Snap |
| Actuator: | Side Rotary |
| Amperage Rating: | 0.25 to 10 A |
| Connection type: | 1/2-14 NPT |
| Contact Configuration: | 1CO SPDT |
| Country of origin: | US |
| Enclosure Type: | NEMA 1/3/4/6/13/IP67 |
| Frequency Rating: | 50/60 Hz |
| Material: | Die Cast Zinc |
| Number of Poles: | 1 |
| Operating Temperature: | -12 to 121 deg C |
| Series: | LSX |
| Manufacturer Name: | Honeywell |
| UNSPSC: | 39122213 |
| UPC: | 00078454930498 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4047.90 / 10Each
Typical price:$4679.30 / Each
Quantity:
- Honeywell MICRO SWITCH Explosion-Proof Limit Switch, Series: LSX, 600 V AC/250 V DC, 0.25 to 10 A, 50/60 Hz Frequency, 1CO SPDT Contact Configuration, 1 Pole, Snap Action, Side Rotary Lever Actuator, 1/2-14 NPT Connection, NEMA 1/3/4/6/13/IP67 Enclosure, -12 to 121 deg C Operating, Die Cast Zinc
LSXA3K Application
For control valves and actuators, petroleum plants, chemical plants, waste treatment and hazardous waste handlingLSXA3K Item Features
- Tracking interchangeability with micro switch ML-E1 and HDLS
- Variety of heads and non sparking actuators
- Field adjustability matches switch to application
- Momentary, maintained, sequential, or center neutral action
- 10 A continuous carry electrical rating
- Choice of silver or gold contacts
- 1/2 or 3/4 in conduit opening
- Internal grounding screw
- 0.45 N-m maximum operating force
- 5 deg maximum differential travel
- 15 deg maximum pretravel
- 60 deg minimum over trave
LSXA3K Standards
CSA Certified|UL ListedSKU #2211481Part Number #LSXA3KUNSPSC39122213UPC00078454930498
