Part Number # B50804
SKU # 2219198
Image Disclaimers Message
Belden B50804 Key Features
| Brand: | Belden |
|---|---|
| Part Number # : | B50804 |
| SKU #: | 2219198 |
| Amperage Rating: | 65 A |
| Conductor Size: | 8 AWG |
| Conductor Type: | Fully Annealed Bare Stranded Copper |
| Jacket Color: | Black |
| Jacket Material: | Thermoset/CPE |
| Number of Conductors: | 4 |
| Outside Diameter: | 0.98 in |
| Strands: | 133 |
| Temperature Rating (Degrees F): | 90 deg C |
| Type: | Type W Flexible Multi-Conductor |
| Insulation material: | EPDM |
| Manufacturer Name: | Omni Cable |
| UNSPSC: | 26121629 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

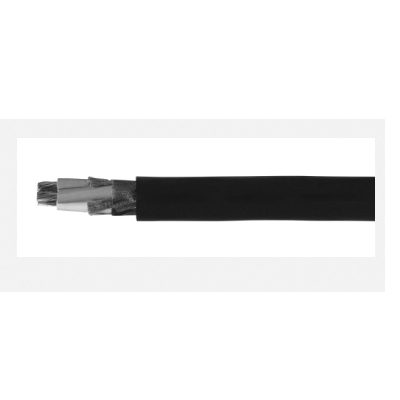

- Omni Cable Portable Cord, Type W Flexible Multi-Conductor, 600 to 2000 V AC, 65 A, 4 Conductors, Fully Annealed Bare Stranded Copper Conductor, 8 AWG Conductor, 0.98 in OD, 133 Strands, EPDM Insulation, Thermoset/CPE Jacket, Black Jacket, 90 deg C
B50804 Application
For mining equipment, cranes, conveyors and mobile equipment, excellent impact resistance, withstands severe environmental conditions, resistant to heat, acids, oil, moisture and most chemicalsB50804 Item Features
- Fully annealed stranded bare copper, ropelay stranding for maximum flexibility
- https://www.youtube.com/watch?v=JmHD5HGyZPA
B50804 Standards
UL Listed|MSHA Approved|ICEA S-75-381 NEMA WC-58|Sunlight ResistantSKU #2219198Part Number #B50804UNSPSC26121629UPC
