MELTRIC CORPORATION 63-64043-972-843
Part Number # 63-64043-972-843
SKU # 2219654
63-64043-972-843
MELTRIC CORPORATION 63-64043-972-843
Part Number # 63-64043-972-843
SKU # 2219654
$615.43 / Each
Typical price:$683.81 / Each
MELTRIC CORPORATION 63-64043-972-843 Key Features
| Brand: | MELTRIC CORPORATION |
|---|---|
| Part Number # : | 63-64043-972-843 |
| SKU #: | 2219654 |
| Amperage Rating: | 60 A |
| Dimensions: | 4.3 in H x 3.64 in D |
| Enclosure: | IP66/IP67/IP69k |
| Frequency Rating: | 60 Hz |
| Horsepower: | 20 hp |
| NEMA Rating: | NEMA 4X |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Series: | DSN60 |
| Temperature Rating (Degrees F): | -40 to 140 deg F |
| Terminal Type: | Screw |
| Type: | Female |
| Country of origin: | US |
| Material: | PBT |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121406 |
| UPC: | 00078447457371 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$615.43 / Each
Typical price:$683.81 / Each
Quantity:

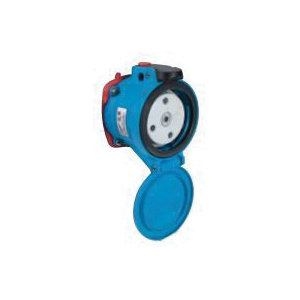

- MELTRIC DECONTACTOR Switch Rated Receptacle, Female, Series: DSN60, 255/277/440/480 V AC, 60 A, 20 hp, 60 Hz Frequency, 3 Poles, 4 Wires, NEMA 4X, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, PBT, Blue, 4.3 in H x 3.64 in D Dimensions
63-64043-972-843 Specifications
- Spring assisted screw terminals
- Spring loaded butt style contacts
- Lid provides additional protection from harsh environments
- OFF button press to deenergize, provides push button circuit disconnection
- Dead front/safety shutter
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- 20 hp at 480 VAC 3-phase horsepower rating
63-64043-972-843 Application
Industrial, Wet/Washdown Environments, Plug and Play Electrical Connections63-64043-972-843 Item Features
- Spring assisted screw terminals
- Spring loaded butt style contacts
- Lid provides additional protection from harsh environments
- OFF button press to deenergize, provides push button circuit disconnection
- Dead front/safety shutter
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- 20 hp at 480 VAC 3-phase horsepower rating
- https://youtu.be/2mSjamIbfo0
63-64043-972-843 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 1682|2682|CSA C22.2 No. 182.1|IEC 60309-1SKU #2219654Part Number #63-64043-972-843UNSPSC39121406UPC00078447457371
Image provided may only be a representation of final product and may include optional equipment
