63-68047-972
MELTRIC CORPORATION 63-68047-972
Part Number # 63-68047-972
SKU # 2219656
$331.98 / Each
Typical price:$368.87 / Each
MELTRIC CORPORATION 63-68047-972 Key Features
| Brand: | MELTRIC CORPORATION |
|---|---|
| Part Number # : | 63-68047-972 |
| SKU #: | 2219656 |
| Amperage Rating: | 60 A |
| Dimensions: | 3.07 in Dia x 2.8 in L |
| Enclosure: | IP66/IP67/IP69k |
| Frequency Rating: | 60 Hz |
| Horsepower: | 20 hp |
| NEMA Rating: | NEMA 4X |
| Number of Poles: | 4 |
| Number of Wires: | 5 |
| Series: | DSN60 |
| Temperature Rating (Degrees F): | -40 to 140 deg F |
| Terminal Type: | Screw |
| Type: | Switch Rated |
| Country of origin: | US |
| Material: | Polyester |
| Manufacturer Name: | Meltric Corporation |
| UNSPSC: | 39121402 |
| UPC: | 00078447457992 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$331.98 / Each
Typical price:$368.87 / Each
Quantity:

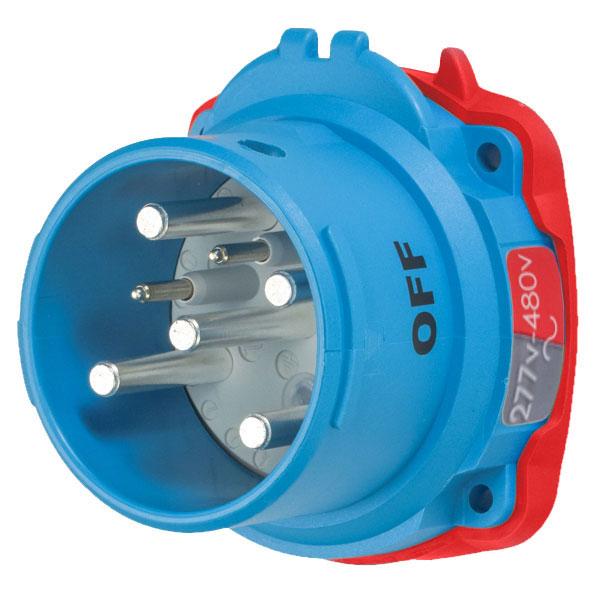

- MELTRIC DECONTACTOR Male Inlet, Switch Rated, Series: DSN60, 255/277/440/480 V AC, 60 A, 20 hp, 60 Hz Frequency, 4 Pole, 5 Wires, NEMA 4X NEMA Rating, IP66/IP67/IP69K Enclosure, -40 to 140 deg F, Screw Terminal, Polyester, Blue, 3.07 in Dia x 2.8 in L Dimensions
63-68047-972 Specifications
- Switch and hp rated (AC only)
- 100 kA short circuit rated
- Compact, lightweight design
- Up to 4 auxiliary contacts
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
- 2 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 7-1/2 hp at 208/240 VAC, 20 hp at 480/600 VAC 3-phase horsepower rating
63-68047-972 Application
Wet or Washdown Environments, Plug and Play Electrical Connections63-68047-972 Item Features
- Switch and hp rated (AC only)
- 100 kA short circuit rated
- Compact, lightweight design
- Up to 4 auxiliary contacts
- Fiberglass reinforced thermoplastic polyester material offers great resistance to impact, corrosion and harsh environmental conditions
- Solid silver nickel contact surfaces provide superior conductivity, durability and corrosion resistance
- 2 hp at 120 VAC, 3 hp at 240 VAC 1-phase, 7-1/2 hp at 208/240 VAC, 20 hp at 480/600 VAC 3-phase horsepower rating
- https://youtu.be/BdTjiY88wdI
63-68047-972 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 2682/1682|CSA 182.1SKU #2219656Part Number #63-68047-972UNSPSC39121402UPC00078447457992
Image provided may only be a representation of final product and may include optional equipment
