Part Number # AF12-30-01-11
SKU # 2229847

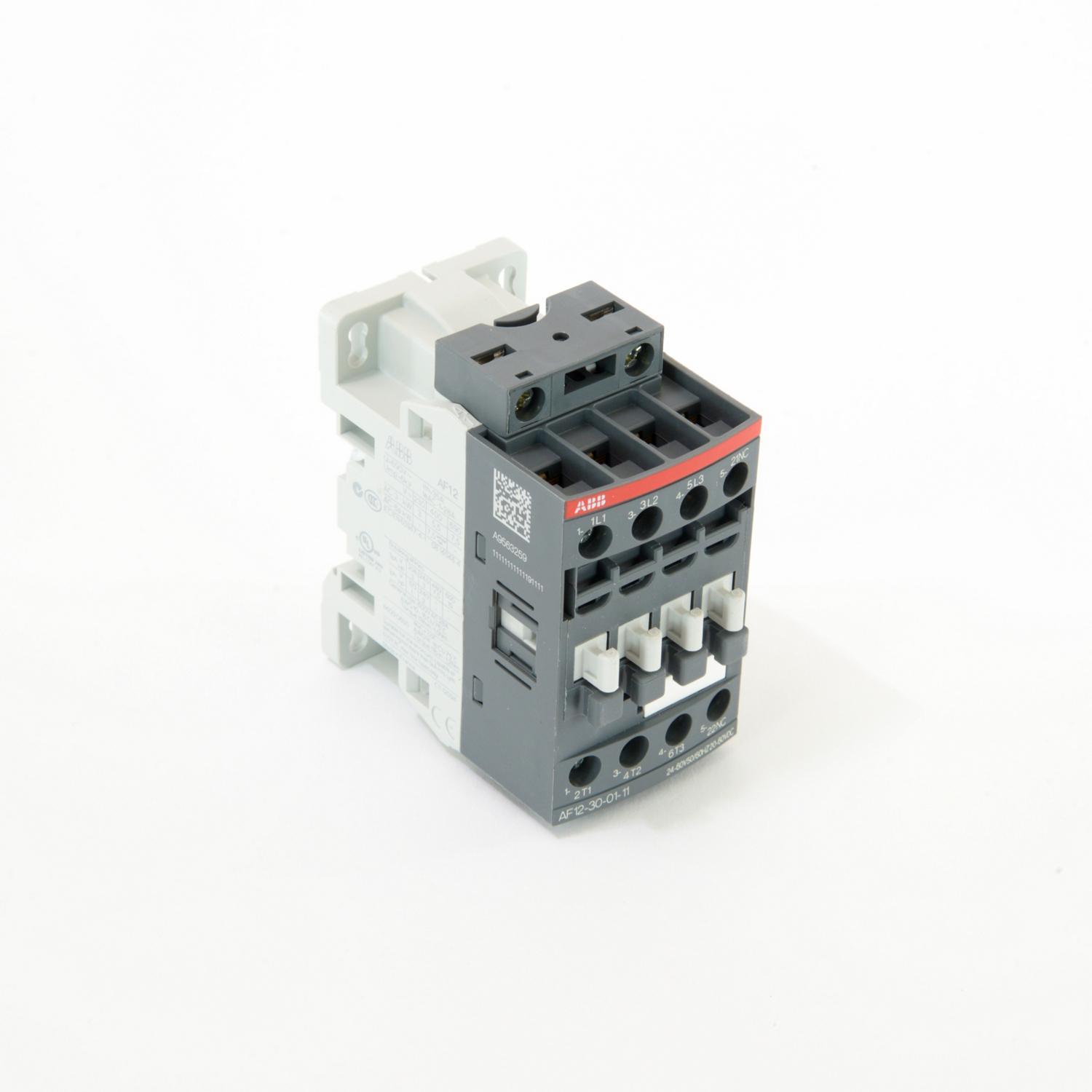

Image provided may only be a representation of
final product and may include optional equipment
AF12-30-01-11
ABB AF12-30-01-11
Part Number # AF12-30-01-11
SKU # 2229847
ABB AF12-30-01-11 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF12-30-01-11 |
| SKU #: | 2229847 |
| Coil Power Rating: | 3, 3 hp |
| Coil Voltage: | 24/60, 24/60 V AC, 24/60 VAC |
| Contact Configuration: | 3NO |
| Dimensions: | 86 mm H x 45 mm W x 77 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600, 3600 Cycles |
| Operating Temperature: | -40 to 70, -40 to 70 deg C |
| Series: | AF Series |
| Terminal Type: | Screw |
| Wattage: | 5.5, 5.5 kW |
| Country of origin: | FR |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523110410 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF12-30-01-11
Brand: ABB
Part Number: AF12-30-01-11
Additional Description: ABB -AF12-30-01-11 AF12 3P CONTR, 1NC, 24-60VAC, 20
Catalog Description: AF12 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC o
AF12-30-01-11 Application
For controlling 3-phase motors, non-inductive or slightly inductive load applicationsAF12-30-01-11 Item Features
- 5.5 kW at 380/400/415/440 VAC, 7.5 kW at 500/690 VAC, 3 kW 220/230/240 VAC wattage
- 24/60 VAC, 20/60 VDC coil voltage rating
AF12-30-01-11 Standards
UL 508|CSA C22.2 No. 14|IEC 60947-1|EN 60947-1 CertifiedSKU #2229847Part Number #AF12-30-01-11UNSPSC39121529UPC03471523110410
