Part Number # V1S-G-Q3
SKU # 2232836
Image Disclaimers Message
Pepperl+Fuchs V1S-G-Q3 Key Features
| Brand: | Pepperl+Fuchs |
|---|---|
| Part Number # : | V1S-G-Q3 |
| SKU #: | 2232836 |
| Amperage Rating: | 4, 4 A |
| Series: | V1S |
| Thread Size: | M12 |
| Type: | Straight Male |
| Manufacturer Name: | Pepperl+Fuchs |
| UNSPSC: | 32151909 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$21.77 / Each
Quantity:

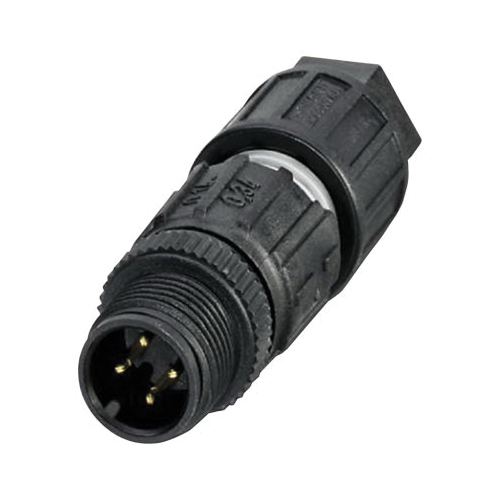

- Pepperl+Fuchs Field Attachable Connector, Straight Male, Series: V1S, 125 V AC, 4 A, M12
V1S-G-Q3 Specifications
- Time-saving assembly with QUICKON-ONE technique
- <=0.8 Nm maximum tightening torque on the coupling nut mounting
- -13 to 176 deg F ambient temperature
- 4-pin
- <5 mOhm volume resistance
- 3 deg of pollution
- IP65/IP67 degree of protection
- CuSn contacts, Ni/Au contact surface, black PA 66 body, plastic sleeve connector, NBR seal, PVC/PE/PP core insulation
- 3.5 to 6 mm Dia cable sheath
- 0.7 to 1.6 mm Dia core insulation
- 0.14 to 0.34 sq-mm cross-section
V1S-G-Q3 Item Features
- Time-saving assembly with QUICKON-ONE technique
- 4-pin
- <5 mOhm volume resistance
- 3 deg of pollution
- IP65/IP67 degree of protection
- CuSn contacts, Ni/Au contact surface, black PA 66 body, plastic sleeve connector, NBR seal, PVC/PE/PP core insulation
- 3.5 to 6 mm Dia cable sheath
- 0.7 to 1.6 mm Dia core insulation
- 0.14 to 0.34 sq-mm cross-section
- <=0.8 Nm maximum tightening torque on the coupling nut mounting
- -13 to 176 deg F ambient temperature
V1S-G-Q3 Standards
UL94 V-0|Class 2-6 in Accordance with VDE 0295SKU #2232836Part Number #V1S-G-Q3UNSPSC32151909UPC
