Part Number # VW3E6023
SKU # 2234109
Image Disclaimers Message
Brand: Schneider Electric
VW3E6023

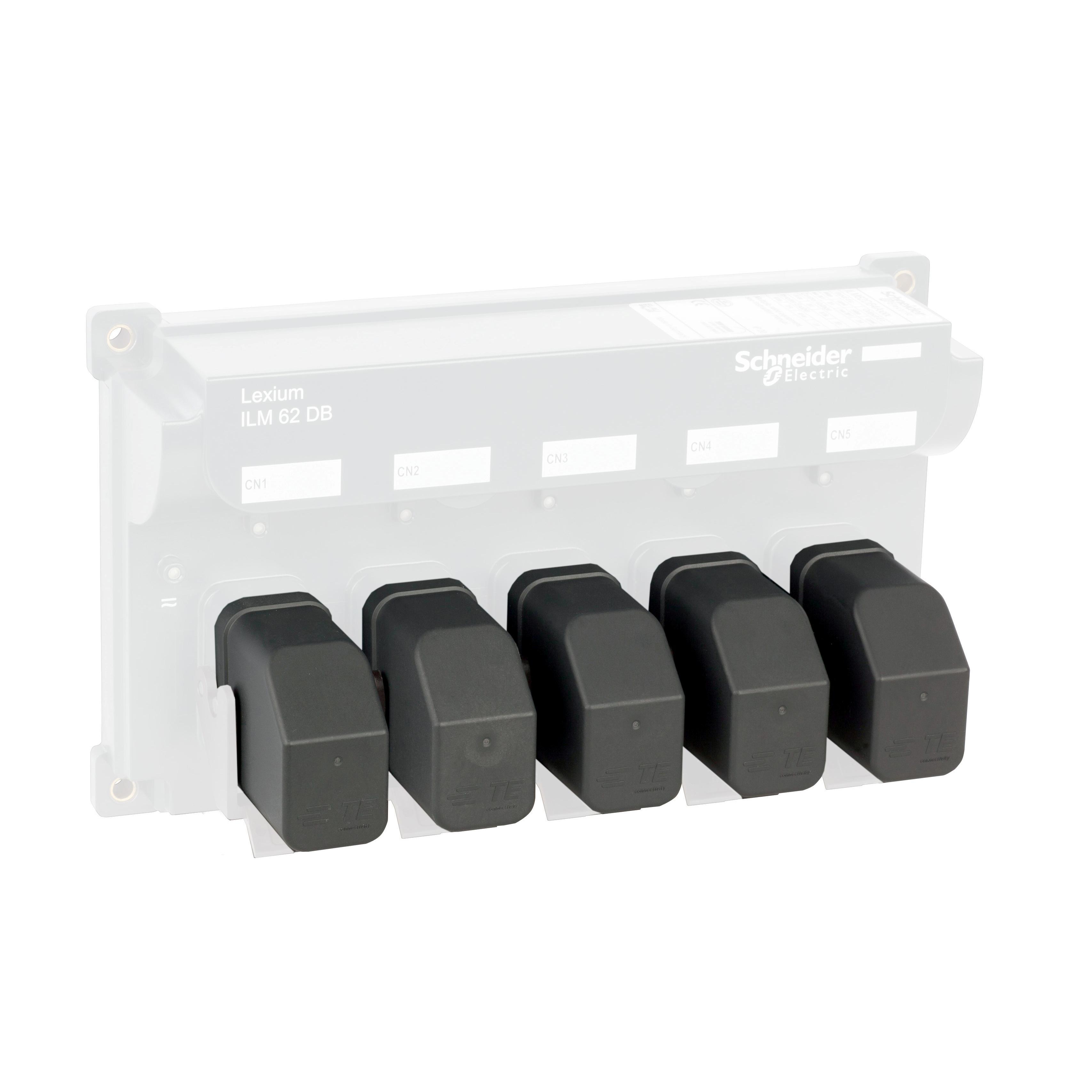

Schneider Electric VW3E6023
Part Number # VW3E6023
SKU # 2234109
$154.46 / Each
Schneider Electric VW3E6023 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | VW3E6023 |
| SKU #: | 2234109 |
| Series: | VW3 |
| Suitable For Use With: | LXM 62 distribution box |
| Type: | Plug-in bridge |
| Country of origin: | US |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 32121708 |
| UPC: | 03606485306582 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$154.46 / Each
Quantity:
- Schneider Electric VW3E6023, Plug-in bridge, VW3, For Use With: LXM 62 distribution box
VW3E6023 Application
For Lexium 62 distribution box Schneider Electric Square D VW3E6023 Sercos III bridge Sercos III bridgeVW3E6023 Item Features
- Quick interconnects, hybrid cables for signal and power level, automatic network configuration, and diagnostic functions: Lexium 62 ILM integrated servo modules offer more than just compact drives
- With their integrated drive electronics, Lexium 62 ILM servo modules take a flexible approach to cabling, with prefabricated hybrid cables and distribution boxes
- The only elements remaining in the cabinet are the shared power supply for the Lexium 62 series and a connection module (CM), which is fully compatible with the Lexium 62 cabinet-based multiaxis servo system with quick front connection
- Together, the drive and network solution form a true plug-and-play solution
- The range of available network topologies includes line, tree, and daisy chain, all topologies either alone or mixed
- Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Pro and Eco series motion controllers via Sercos communication
- ILM servo applications
- Smaller control cabinets, less installation effort/shorter wiring times: Quick interconnections and hybrid cables for signal and power level
- Up to 90% less control cabinet space required compared to stand-alone drives
- 70% shorter cable lengths
- 90% less wiring required in the control cabinet
- 50% less cable installation required in the machine
- Automatic network configuration, diagnostic functions
- Well suited for a broad range of machines
- Available in flange sizes of 70, 100, and 140 mm (2.756, 3.937, and 5.512 in.)
- Holding torque range of 1.1 to 12.5 Nm (0.811 to 9.219 ft lbf), peak torque of 3.5 to 55 Nm (2.581 to 40.565 ft lbf)
