Part Number # PBTD-4-250
SKU # 2241093
Ilsco PBTD-4-250 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | PBTD-4-250 |
| SKU #: | 2241093 |
| Dimensions: | 3.96 in L x 2 in W x 2.17 in H |
| Specifications: | 6 AWG to 250 kcmil Wire, 5/16 in Hex, 290 A |
| Temperature Rating (Degrees F): | -45 to 90 deg C |
| Type: | Type PBTD 2-Sided Entry 4-Port Dual Rated Insulated |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669077926 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

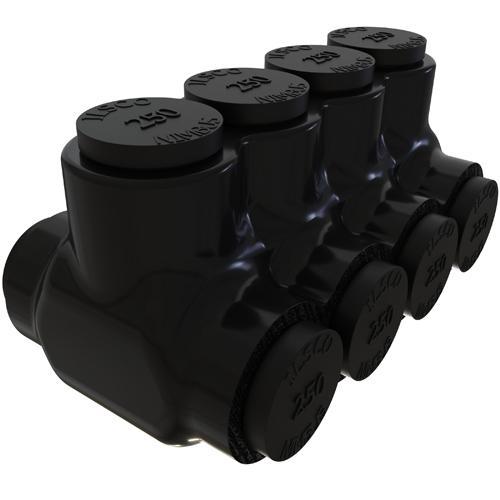

- ILSCO NIMBUS Multi-Tap Connector, Type PBTD 2-Sided Entry 4-Port Dual Rated Insulated, Aluminum/Copper Conductor, 600 V AC, 6 AWG to 250 kcmil Wire, 5/16 in Hex, 290 A, -45 to 90 deg C, Aluminum, 3.96 in L x 2 in W x 2.17 in H
PBTD-4-250 Item Features
- Broad wire range 14 AWG to 750 kcmil
- High dielectric strength plastisol is chemical resistant
- Black cover is UV rated
- Removable port and screw plugs
- Pre-filled with DE-OX oxide inhibiting compound
- Per NEC article 310-16 allowable ampacities are as follows 4 to 95 A, 1/0 to 170 A, 3/0 to 225 A, 250 to 290 A, 350 to 350 A, 600 to 475 A and 750 to 535 A
- Ensures reliability
- Flexibility in the field
- Entry port closure
- Prevents oxides from forming
- Patented screw design
- Incoming and outgoing conductors must be staggered
PBTD-4-250 Standards
CSA File No. LR-29601|UL 486A/486B|UL 453G|UL File No. E6207|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.govSKU #2241093Part Number #PBTD-4-250UNSPSC39121408UPC00783669077926
Image provided may only be a representation of final product and may include optional equipment
