Part Number # CAD323G7
SKU # 2244076
Schneider Electric CAD323G7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CAD323G7 |
| SKU #: | 2244076 |
| Coil Voltage: | 120 V AC |
| Contact Form: | 3NO-2NC 3 Form A/2 Form B |
| Contact Rating: | 10 A at 690 V AC |
| Dimensions: | 3.9 in H x 1.77 in W x 3.31 in D |
| Enclosure Type: | IP2X |
| Terminal Type: | Spring Clip |
| UNSPSC: | 39122331 |
| UPC: | 00785901819592 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- Schneider Electric TeSys IEC Control Relay, 10 A, 8/70 VA Power, 50/60 Hz Frequency, 120 VAC Coil, 3NO-2NC 3 Form A/2 Form B Contact Form, 10 A at 690 V AC Contact, 5 Pole, Front/Plate Rail Mounting, Spring Clip Terminal, IP2X Enclosure, -40 to 70 deg C, 3.9 in H x 1.77 in W x 3.31 in D Dimensions
CAD323G7 Application
For multi-pole switching applications at voltages up to 600 and control circuit applicationsCAD323G7 Item Features
- Same design as TeSys D, K and SK contactors
- Different ways for connection (such as screw clamp terminal, spring terminal, welded on PCB)
- Compatible for all the voltages on the market
- Control relays for AC or DC control circuits (AC15, DC13)
CAD323G7 Standards
RoHS Compliant|REACH Compliant|UL File No. E164353|CCN NKCR|CSA File No. LR43364|Class 3211-03|CE Certified|IEC Certified|VDE 0106|IEC 60947-5-1|NF C 63-140|BS 4794|EN 60947-5|Green Premium|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.govSKU #2244076Part Number #CAD323G7UNSPSC39122331UPC00785901819592

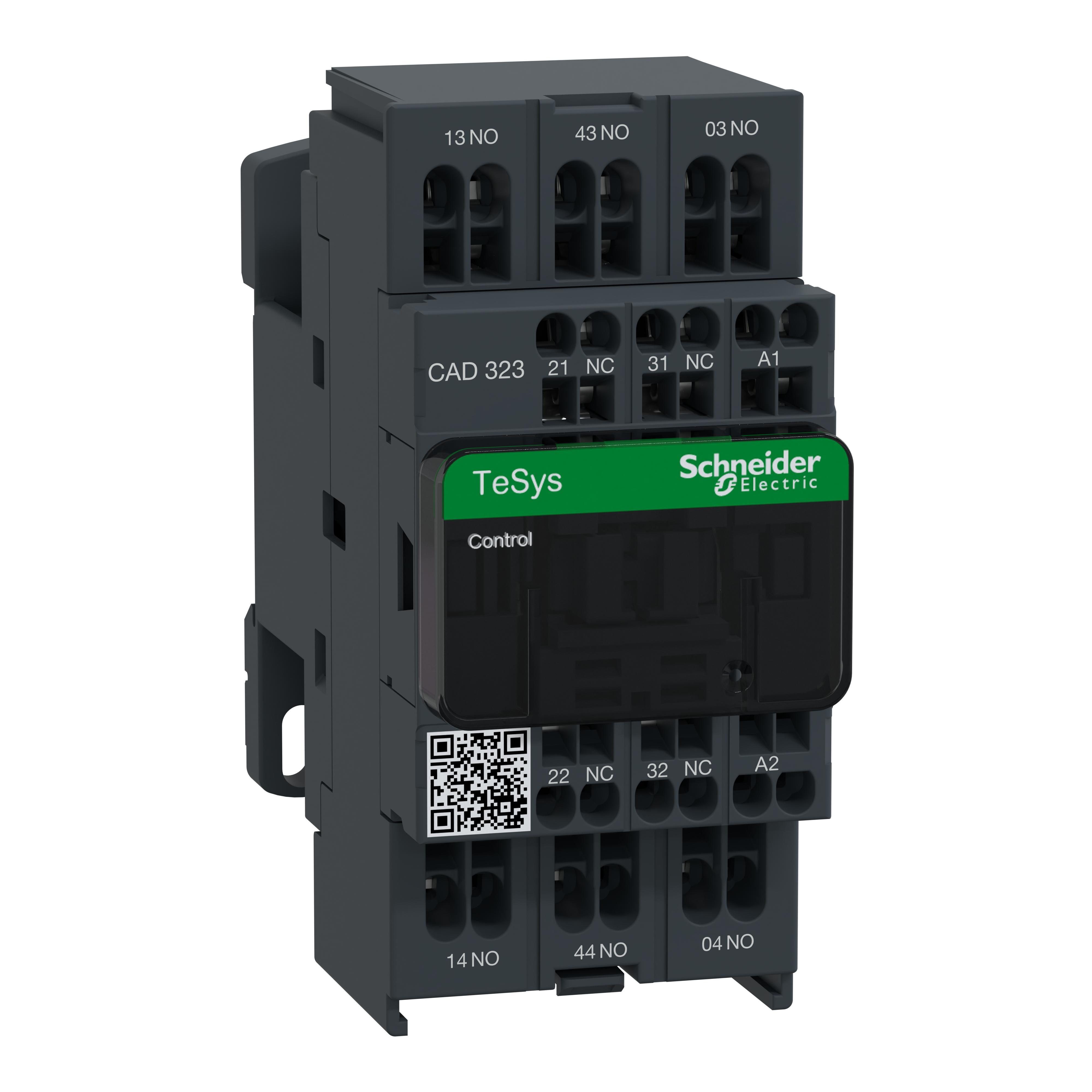

Image provided may only be a representation of final product and may include optional equipment
