Brand: Pepperl+Fuchs

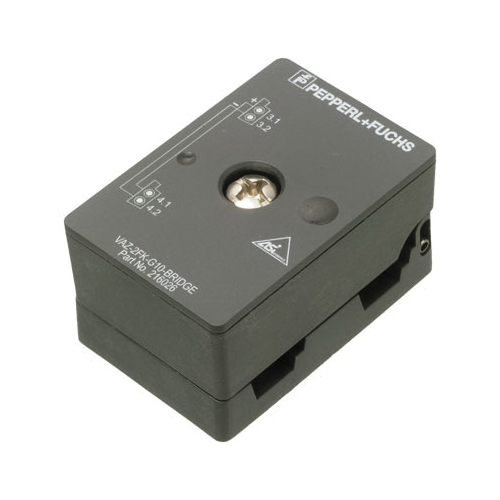

Pepperl+Fuchs VAZ-2FK-G10-BRIDGE
Part Number # VAZ-2FK-G10-BRIDGE
SKU # 2248653

Brand: Pepperl+Fuchs
VAZ-2FK-G10-BRIDGE
Pepperl+Fuchs VAZ-2FK-G10-BRIDGE
Part Number # VAZ-2FK-G10-BRIDGE
SKU # 2248653
Pepperl+Fuchs VAZ-2FK-G10-BRIDGE Key Features
| Brand: | Pepperl+Fuchs |
|---|---|
| Part Number # : | VAZ-2FK-G10-BRIDGE |
| SKU #: | 2248653 |
| Dimensions: | 40.5 mm L x 27.7 mm W x 22 mm H |
| Series: | VAZ |
| Specifications: | 32 V AC, 8 A |
| Suitable For Use With: | Industrial Sensor AS-Interface |
| Material: | PBT PC |
| UNSPSC: | 32151601 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Pepperl+Fuchs VAZ-2FK-G10-BRIDGE
Brand: Pepperl+Fuchs
Part Number: VAZ-2FK-G10-BRIDGE
Additional Description: PF -VAZ-2FK-G10-BRIDGE (S) AS-INTERFACE (EXCLUDING SENSORS) 216026
VAZ-2FK-G10-BRIDGE Specifications
- One piece housing
- Stainless steel 1.4305/AISI 303 mounting screw
- 1.65 Nm tightening torque, fastening screws
- CuSn/Au contacts
- Flat cable terminals
- Simple and fast mounting
- High current rating
- III protection class
- 12 A current loading capacity with a wire cross-section of 2.5 sq-mm
- Overvoltage category III surge protection
- -13 to 167 deg F ambient temperature, -13 to 185 deg F storage temperature
- 3 deg of pollution
- IP67/IP68/IP69K degree of protection
VAZ-2FK-G10-BRIDGE Item Features
- One piece housing
- Simple and fast mounting
- High current rating
- III protection class
- 12 A current loading capacity with a wire cross-section of 2.5 sq-mm
- Overvoltage category III surge protection
- -13 to 167 deg F ambient temperature, -13 to 185 deg F storage temperature
- 3 deg of pollution
- IP67/IP68/IP69K degree of protection
- Stainless steel 1.4305/AISI 303 mounting screw
- 1.65 Nm tightening torque, fastening screws
- CuSn/Au contacts
- Flat cable terminals
VAZ-2FK-G10-BRIDGE Standards
UL E223772, EN 60529:2000|cULus Listed|Type 1 EnclosureSKU #2248653Part Number #VAZ-2FK-G10-BRIDGEUNSPSC32151601UPC
Image provided may only be a representation of final product and may include optional equipment
