LC2D65AF7

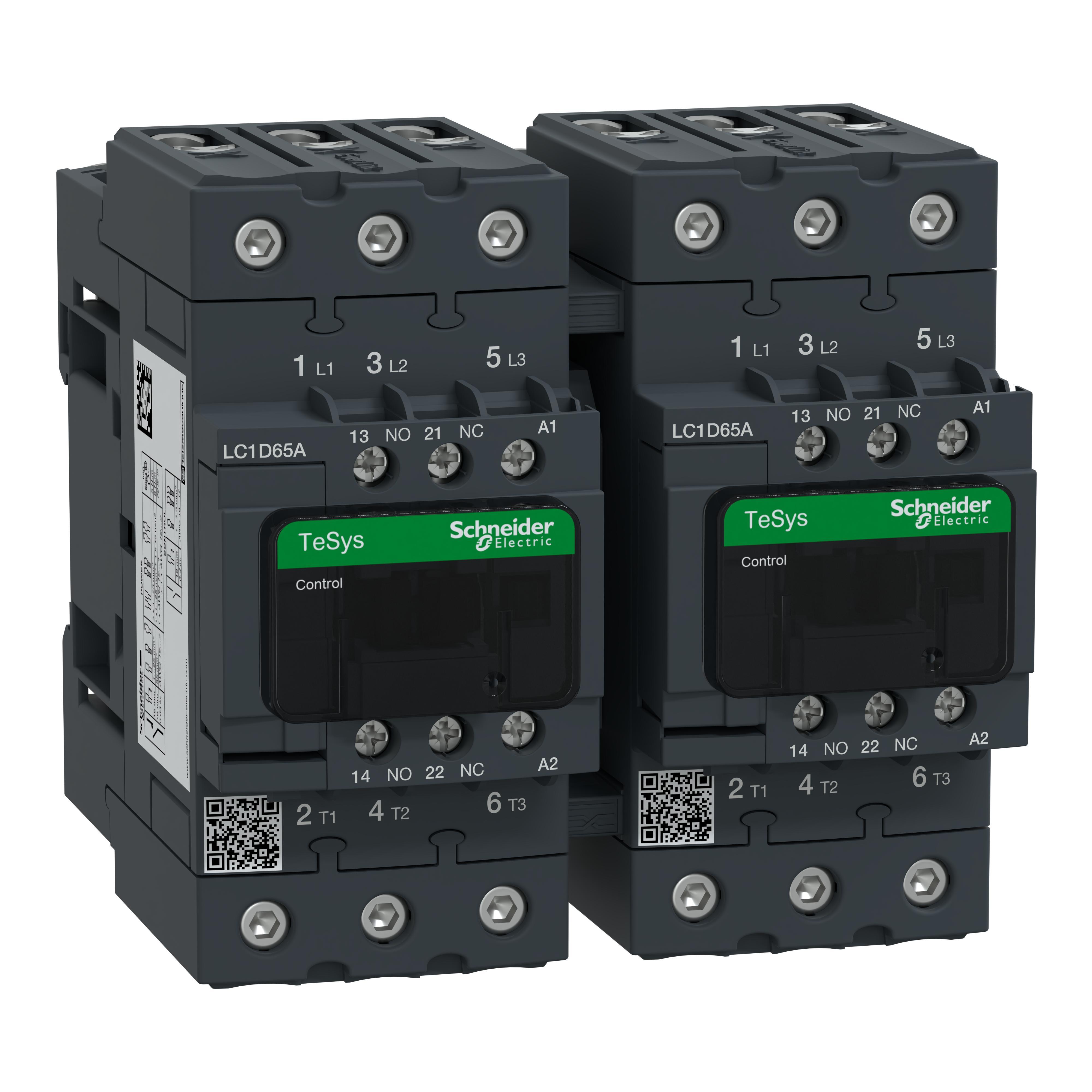

Schneider Electric LC2D65AF7
Part Number # LC2D65AF7
SKU # 2249165
$979.10 / Each
Schneider Electric LC2D65AF7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC2D65AF7 |
| SKU #: | 2249165 |
| Coil Power Rating: | 50 hp at 575 to 600 VAC |
| Coil Voltage: | 110, 110 V AC, 110 VAC |
| Contact Configuration: | 3NO |
| Dimensions: | 122 mm H x 119 mm W x 120 mm D |
| Enclosure Type: | Open |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600, 3600 Cycles/hr |
| Operating Temperature: | -5 to 60, -5 to 60 deg C |
| Series: | TeSys D LC2D, TeSys™ D LC2D |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Type: | Reversing |
| Country of origin: | FR |
| Mounting type: | Plate/Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901922964 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$979.10 / Each
Quantity:
- Schneider Electric Square D IEC Contactor, Reversing, Series: TeSys D LC2D, 110 V AC Coil, 65/80 A Maximum Load Current, 50 hp at 575 to 600 VAC Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Screw Clamp Terminal, Open Enclosure, 3600 Cycles/hr Operating Cycles, -5 to 60 deg C Operating, Plate/Rail Mounting, 122 mm H x 119 mm W x 120 mm D Dimensions
LC2D65AF7 Application
Industry, Infrastructure, Building, Resistive Load and Motor Control ApplicationsLC2D65AF7 Item Features
- AC, DC, low consumption DC control circuit
- TeSys D contactors have been designed for perfect integration in control systems
- They can be used to create motor starters for any type of application
- https://www.youtube.com/embed/kW01lFljKgE
LC2D65AF7 Standards
RoHS Compliant|WEEE Compliant|REACH Compliant|Green Premium|CCC Certified|CSA C22.2 No. 14|EN 60947-4-1|EN 60947-5-1|IEC 60947-4-1|GoST-R Certified|IEC 60947-5-1|UL 508|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.govSKU #2249165Part Number #LC2D65AF7UNSPSC39121529UPC00785901922964
