Brand: 3M
3M R/Y+JUG
Part Number # R/Y+JUG
SKU # 2249540

3M R/Y+JUG Key Features
| Brand: | 3M |
|---|---|
| Part Number # : | R/Y+JUG |
| SKU #: | 2249540 |
| Series: | R/Y+JUG |
| Spring Type: | Live Action/Square Wire |
| Temperature Rating (Degrees F): | 221 deg F |
| Type: | Flame-Retardant |
| Wire Size: | 22 to 8 AWG |
| Wire Type: | Solid/Stranded Copper |
| Manufacturer Name: | 3M |
| UNSPSC: | 32000000 |
| UPC: | 00054007431558 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.

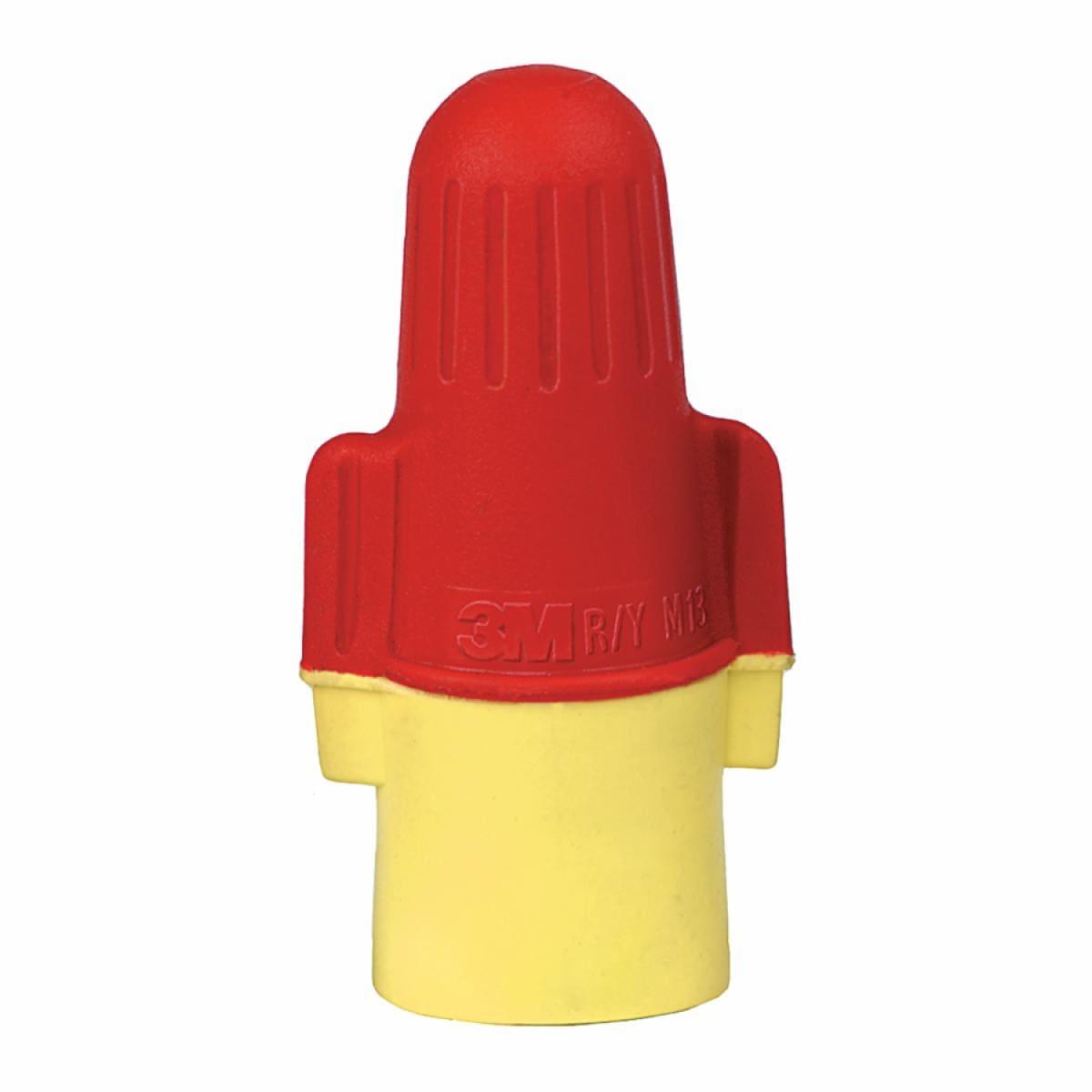

- 3M, 7000058824, Connector, Series: R/Y+JUG, Solid/Stranded Copper Wire, 22 to 8 AWG Wire, 600 V, Plastic, Red
R/Y+JUG Specifications
- 3M™ performance Plus™ wire connectors are designed with a uniquely flexible spring
- 500/jug
- Flexible spring expands for greater wire range and reuse
- Dual color coded: one connector does the job of two traditional connectors in the majority of applications
- Polypropylene and thermoplastic elastomer insulation
- New design allows easier installation, smooth, fast and easy on the hands
- Flexible skirts provide safety provides protection against potential shock situations
- Simplifies selection of the right connector for a wide range of wiring jobs, there's also less inventory to manage and a better chance you'll have the connector you need to do every job
- Corrosion-resistant coating
- A better bite for a better connection, wires feed into the connector more easily, improving the security of the connection and increasing the level of pull-out
- 1000 VAC for signs, fixtures or luminaires
- (2) 18 AWG, (2) 8 AWG, (5) 12 AWG wire combinations
R/Y+JUG Item Features
- Strong bite for a secure, reliable connection
- Flexible spring expands for greater wire range and reuse
- Dual color coded - one connector does the job of two traditional connectors in the majority of applications
R/Y+JUG Standards
UL Listed|RoHS 2011/65/EU CompliantSKU #2249540Part Number #R/Y+JUGUNSPSC32000000UPC00054007431558
Image provided may only be a representation of final product and may include optional equipment
