Part Number # XVBC6B4
SKU # 2251980
Image Disclaimers Message
XVBC6B4

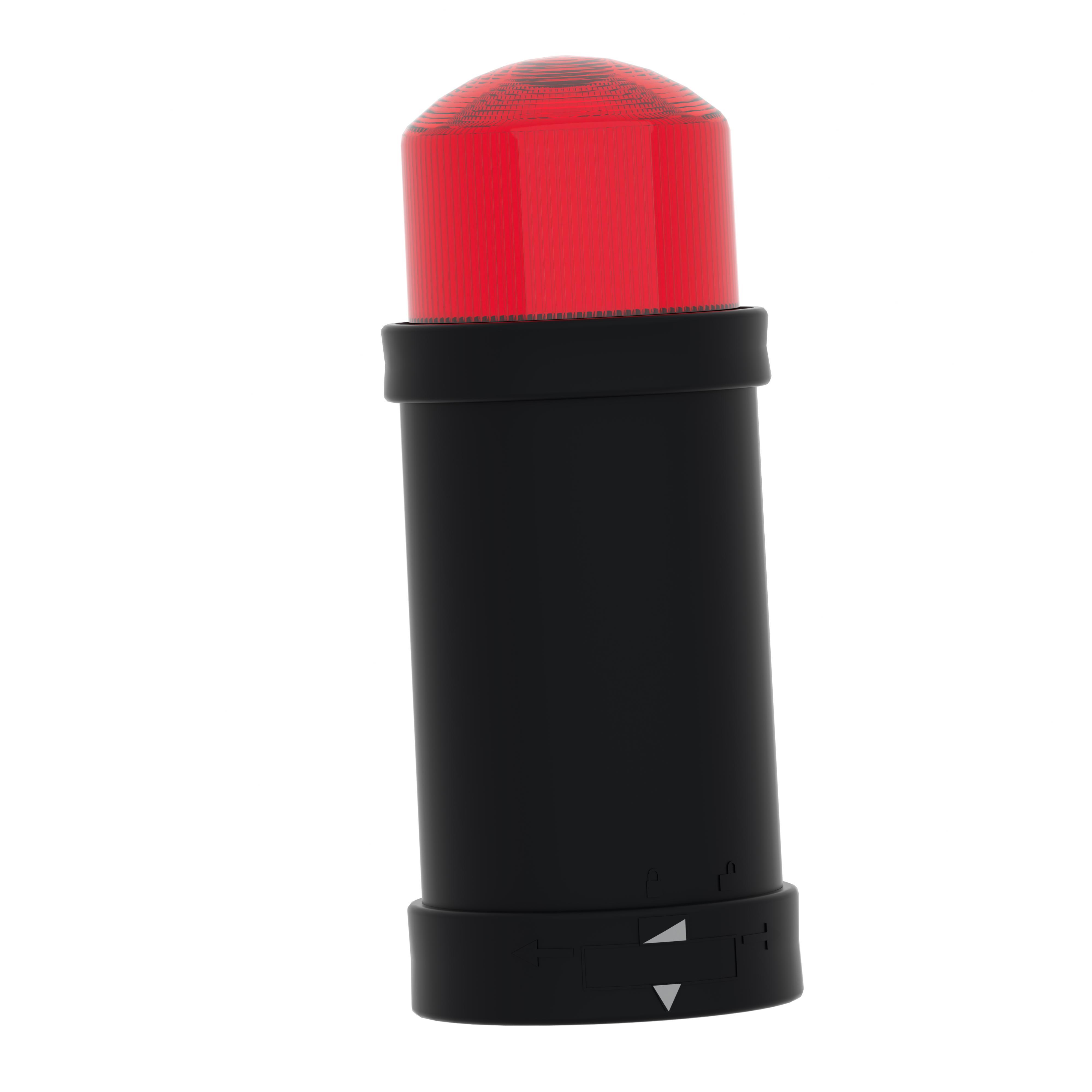

Schneider Electric XVBC6B4
Part Number # XVBC6B4
SKU # 2251980
$261.96 / Each
Schneider Electric XVBC6B4 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | XVBC6B4 |
| SKU #: | 2251980 |
| Amperage Rating: | <350/550, <350/550 mA |
| Beam Angle: | 360, 360 deg |
| Dimensions: | 157 mm H x 70 mm W x 70 mm D |
| Lamp Type: | Flash Discharge Tube |
| Light Output: | 13, 13 cd |
| NEMA Rating: | NEMA 4X/12 |
| Series: | XVB |
| Temperature Rating (Degrees F): | -25 to 50, -25 to 50 deg C |
| Type: | Indicator Bank Illuminated |
| Wattage: | 7, 7 W |
| Color: | Red |
| Country of origin: | FR |
| Diameter: | 70, 70 mm |
| Housing material: | Polycarbonate |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 32151503 |
| UPC: | 00785901845614 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$261.96 / Each
Quantity:
- Schneider Electric Harmony Square D Strobe Beacon, Indicator Bank Illuminated, Series: XVB, 24 VAC/VDC, <350/550 mA, 7 W Wattage, 70 mm Diameter, Flash Discharge Tube Lamp, Red, Flashing Flash, 13 cd Light Output, 100000 hr Average Life, 360 deg Beam, NEMA 4X/12 NEMA Rating, -25 to 50 deg C, Polycarbonate Housing Material, 157 mm H x 70 mm W x 70 mm D Dimensions
XVBC6B4 Application
Automotive, Machine Tool, Material Handling, Packaging, Assembly Stations and Conveyor ApplicationsXVBC6B4 Item Features
- The flash energy is 5 J It has a mounting diameter of 70mm
XVBC6B4 Standards
RoHS Compliant|UL 508|CSA C22.2 No. 14|CCC Certified|GoST-R Certified|IEC/EN 60947-5-1|IEC 60947-1|IEC 61140 Class I/II|IEC 60529|TC Certified|Green Premium|WEEE Compliant|REACH Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2251980Part Number #XVBC6B4UNSPSC32151503UPC00785901845614
