Part Number # 567-BIN
SKU # 2265386
567-BIN
3M 567-BIN
Part Number # 567-BIN
SKU # 2265386
$609.17 / 1000Each
Typical price:$877.00 / Each
3M 567-BIN Key Features
| Brand: | 3M |
|---|---|
| Part Number # : | 567-BIN |
| SKU #: | 2265386 |
| Country of origin: | US |
| Finish: | Tin-Plated |
| Manufacturer Name: | 3M |
| Material: | Brass |
| Series: | 567-BIN |
| Specifications: | 2 Cores |
| Temperature Rating (Degrees F): | 105 deg C |
| Type: | Run and Tap |
| Wire Size: | 10 to 14 AWG (Tap), 12 to 10 AWG (Run) |
| Wire Type: | Solid/Stranded |
| UNSPSC: | 30000000 |
| UPC: | 00054007148951 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$609.17 / 1000Each
Typical price:$877.00 / Each
Quantity:
3M 567-BIN
Brand: 3M
Part Number: 567-BIN
Additional Description: 3M -567-BIN 3M SCOTCHLOK IDC CONNECTOR 567 1000CONN/CTN 7000005879

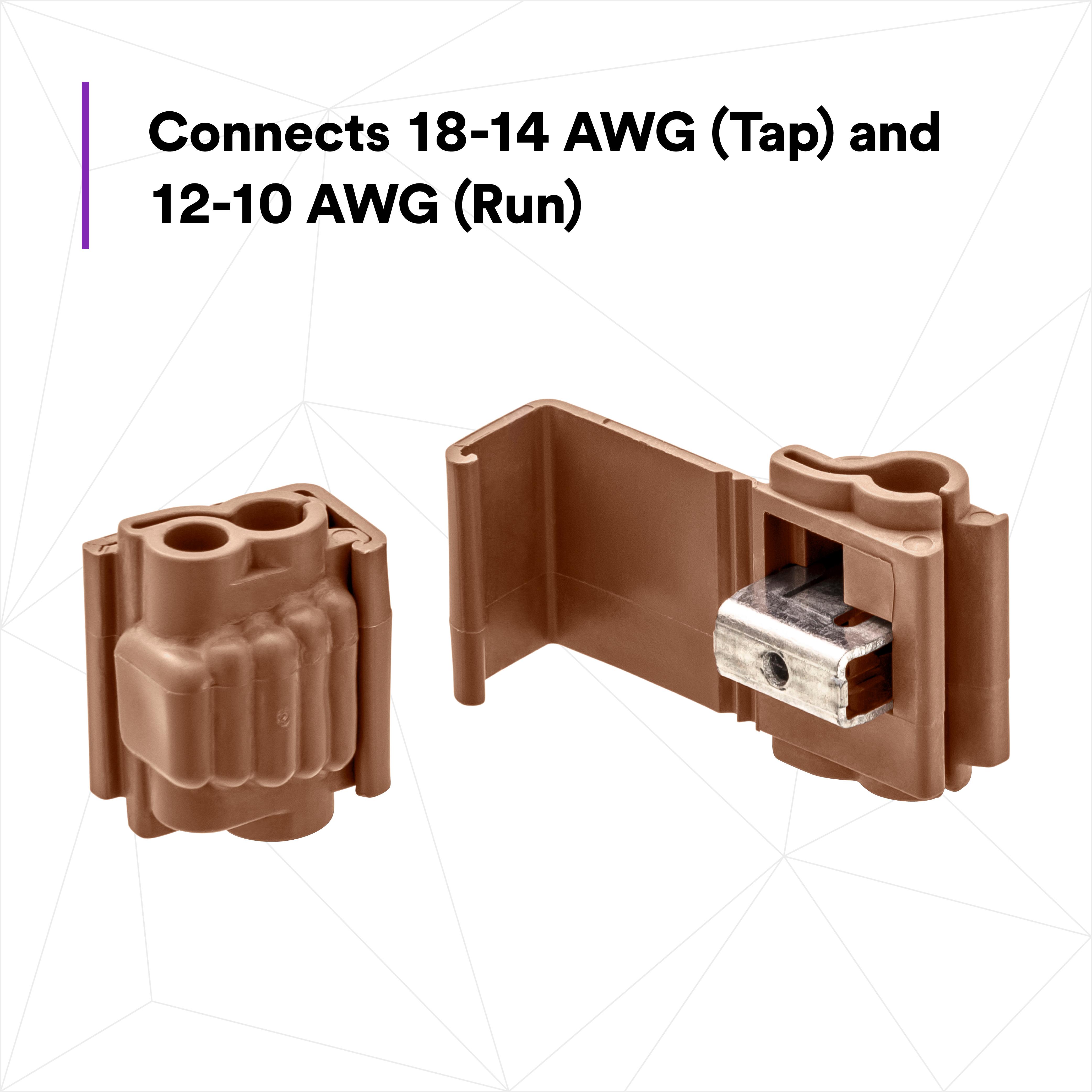

Catalog Description: 3M™ Scotchlok™ Insulation Displacement Connector 567 electrically connects a tap wire to a run (through) wire while insulating the connection. This connector is suitable for control circuit wiring, fixture wiring, appliance wiring, signal and PA systems and automotive/boat/RV wiring. Polypropylene insulated and self stripping.
567-BIN Application
Suitable for general purpose electrical connections on an auto, boat, van or trailer567-BIN Item Features
- COMPATIBILITY - For use with common thermoplastic insulated wires with a maximum insulation diameter of 0.145 in (tap) and 0.190 in (run)
- BUILT TOUGH - Constructed with tin-plated brass and polypropylene
- Brown polypropylene-insulated connector
- Suitable for general purpose electrical connections on an auto, boat, van or trailer
- Accommodates 18 to 16 AWG solid/stranded or 14 AWG stranded
567-BIN Standards
UL File Number E23438|UL 94|||UL 486C|RoHS 2011/65/EU Compliant|RoHS Compliant|CSA 22.2SKU #2265386Part Number #567-BINUNSPSC30000000UPC00054007148951
Image provided may only be a representation of final product and may include optional equipment
