Part Number # M10-10FLX
SKU # 2267494
$383.60 / 500Each
Typical price:$485.00 / Each
3M M10-10FLX Key Features
Brand: 3M
Part Number # M10-10FLX
SKU #2267494
Dimensions: 0.32 in W x 0.04 in THK
Temperature Rating (Degrees F): 347, 347 deg F
Tongue Type: Fork
Type: Locking, Locking Non-Insulated
Voltage Rating: 600 to 1000, 600 to 1000 VAC
Color: Yellow
Length: 0.73, 0.73 in
Material: ETP Copper, ETP/Electrolytic Copper
Barrel Size: 0.135 in ID
Barrel Type: Brazed, Brazed Seam
Conductor Size: 12 to 10, 12 to 10 AWG
Conductor Type: Copper, Non-Insulated
Country of origin: US
Finish: Tin Plated
Manufacturer Name: 3M
UNSPSC: 31200000
UPC: 00051128588345
$383.60 / 500Each
Typical price:$485.00 / Each
3M M10-10FLX
Brand: 3M
Part Number: M10-10FLX
Additional Description: 3M -M10-10FLX (N) M10-10FLX LOCK FORK NON-INS BTL 50/bottle 7100165263 NON-CANCELABLE, NON-RETURNABLE

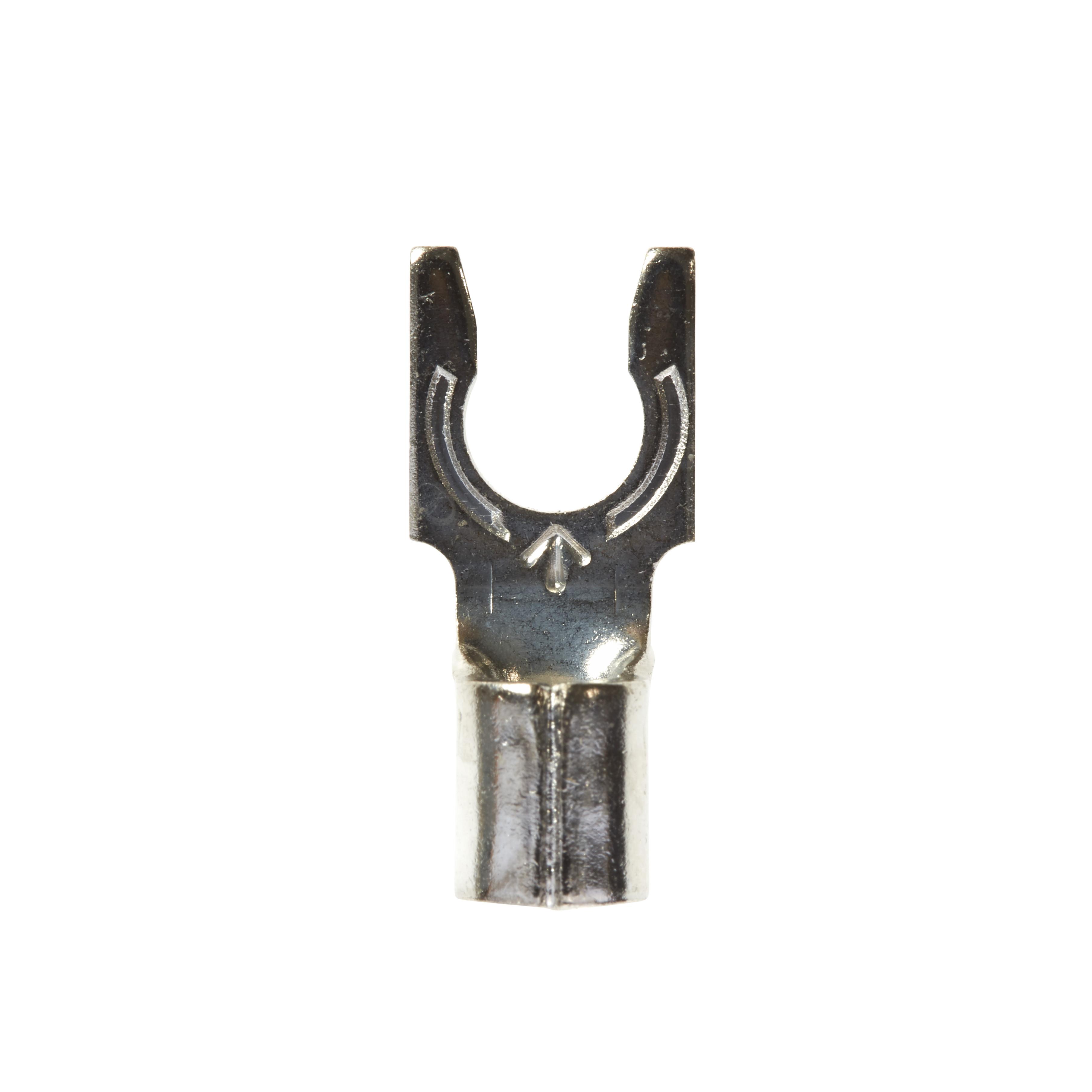

Catalog Description: 3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
M10-10FLX Item Features
- Beveled mouth offers easy insertion of wires
- 600V-rated for building wire and 1000v for signs, fixtures or luminaires
- Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- Spring-like tongue firmly fits around the stud
- Electrolytic copper construction offers good conductivity
- Withstands a maximum temperature of 347 deg f (175 deg c) for bare terminals
M10-10FLX Standards
CSA Certified|RoHS 2011/65/EU|UL ListedSKU #2267494Part Number #M10-10FLXUNSPSC31200000UPC00051128588345
