Part Number # MVU18-250DMFX-A
SKU # 2269023
MVU18-250DMFX-A

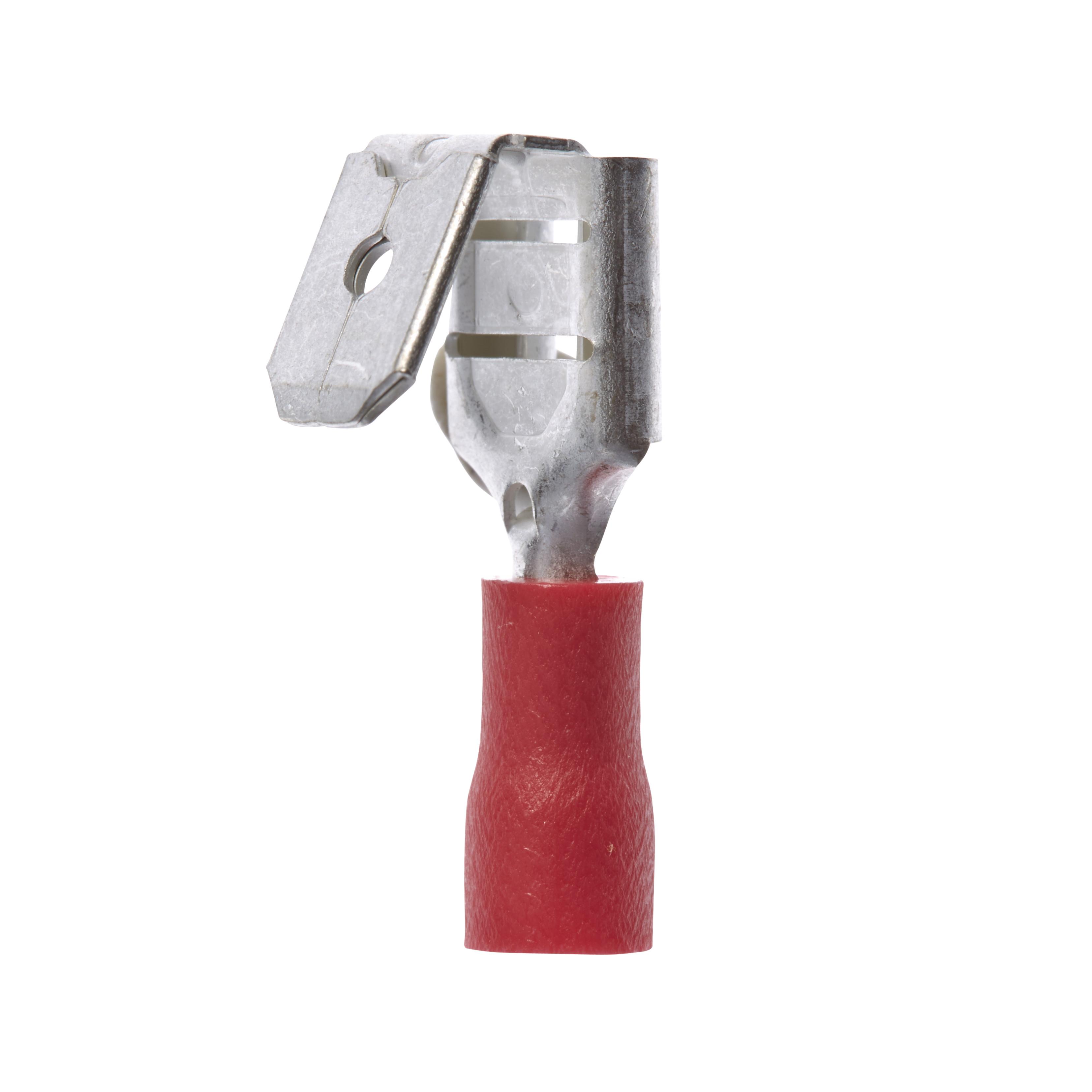

3M MVU18-250DMFX-A
Part Number # MVU18-250DMFX-A
SKU # 2269023
$102.28 / 100Each
Typical price:$147.30 / Each
3M MVU18-250DMFX-A Key Features
| Brand: | 3M |
|---|---|
| Part Number # : | MVU18-250DMFX-A |
| SKU #: | 2269023 |
| Dimensions: | 0.07 in ID x 0.15 in OD |
| Series: | MVU18-250DMFX-A |
| Temperature Rating (Degrees F): | -40 to 221 deg F |
| Type: | Piggy-Back |
| Length: | 0.87 in |
| Material: | Brass |
| Conductor Size: | 18 AWG |
| Country of origin: | TW |
| Finish: | Tin Plated |
| Manufacturer Name: | 3M |
| Specifications: | Butted Barrel Style, Female/Male Disconnect Type, 0.25 in Connection Width |
| UNSPSC: | 31200000 |
| UPC: | 00051128588741 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$102.28 / 100Each
Typical price:$147.30 / Each
Quantity:
- 3M, 7100165280, Disconnect Terminal, Piggy-Back, Series: MVU18-250DMFX-A, 18 AWG Conductor, Specifications: Butted Barrel Style, Female/Male Disconnect Type, 0.25 in Connection Width, -40 to 221 deg F, Brass, Tin Plated, 0.07 in ID x 0.15 in OD Dimensions
MVU18-250DMFX-A Application
Allows for quick and easy disconnect of wiresMVU18-250DMFX-A Item Features
- The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
- Allows for quick and easy disconnect of wires
- Accommodates wire sizes 22 to 18 AWG
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Withstands a temperature range of -40 to 221 deg F (-40 to 105 deg C)
- Rated 600V for building wire and 1000V for signs, fixtures or luminaires
MVU18-250DMFX-A Standards
UL Listed|CSA Certified|RoHS 2011/65/EU CompliantSKU #2269023Part Number #MVU18-250DMFX-AUNSPSC31200000UPC00051128588741
Image provided may only be a representation of final product and may include optional equipment
