Part Number # AF09-30-01-13
SKU # 2274967
Image Disclaimers Message
Brand: ABB
AF09-30-01-13
ABB AF09-30-01-13
Part Number # AF09-30-01-13
SKU # 2274967
$60.54 / Each
Typical price:$112.41 / Each
ABB AF09-30-01-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF09-30-01-13 |
| SKU #: | 2274967 |
| Coil Power Rating: | 7-1/2, 7-1/2 hp |
| Coil Voltage: | 100 V AC, 250 V DC, 100 VAC, 250 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 86 mm H x 45 mm W x 77 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NC |
| Number of Poles: | 3 |
| Operating Temperature: | -40 to 70, -40 to 70 deg C |
| Series: | AF09 |
| Size: | SZ 09 |
| Terminal Type: | Screw |
| Wattage: | 5.5, 5.5 kW |
| Country of origin: | FR |
| Mounting type: | DIN Rail, Front/Side |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523110137 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$60.54 / Each
Typical price:$112.41 / Each
Quantity:

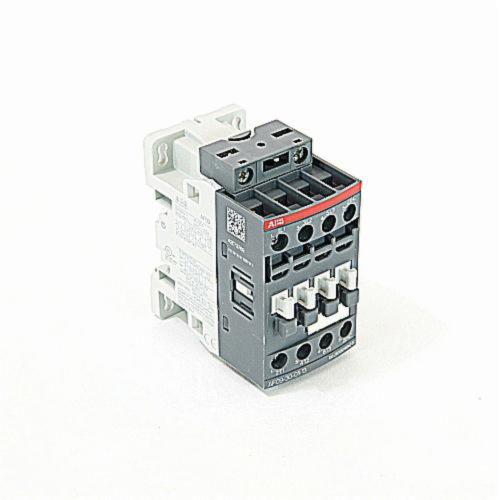

- ABB IEC Contactor, Series: AF09, 100 V AC, 250 V DC Coil, 25 A Maximum Load Current, 7-1/2 hp Coil, 3 Pole, 50/60 Hz Frequency, 5.5 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NC Auxiliary Contacts, SZ 09 Size, Screw Terminal, IP20 Enclosure, -40 to 70 deg C Operating, DIN Rail Mounting, 86 mm H x 45 mm W x 77 mm D Dimensions
AF09-30-01-13 Specifications
- AF contactors can manage large control voltage variations one coil can be used for different control voltages used worldwide without any coil change
- AF series contactor coils are designed to utilize both AC (50/60 Hz) and DC control circuit inputs ranging from 24 to 500 VAC
- Main poles and auxiliary contact blocks 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically linked auxiliary contacts compliant with Annex L of IEC 60947-5-1
- 6 kV rated impulse withstand voltage
- 600/690 VAC rated insulation voltage
- 3000 m maximum operating altitude permissible
- 0.75 hp at 120 VAC, 1.5 hp at 240 VAC 1-phase 2 hp at 200/208 VAC, 2 hp at 220/240 VAC, 5 hp at 440/480 VAC, 7.5 hp at 550/600 VAC 3-phase power rating
AF09-30-01-13 Application
For controlling 3-phase motors, non-inductive or slightly inductive loadsAF09-30-01-13 Includes
Surge SupressionAF09-30-01-13 Item Features
- AF contactors can manage large control voltage variations one coil can be used for different control voltages used worldwide without any coil change
- AF series contactor coils are designed to utilize both AC (50/60 Hz) and DC control circuit inputs ranging from 24 to 500 VAC
- Main poles and auxiliary contact blocks 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically linked auxiliary contacts compliant with Annex L of IEC 60947-5-1
- 6 kV rated impulse withstand voltage
- 600/690 VAC rated insulation voltage
- 3000 m maximum operating altitude permissible
- 0.75 hp at 120 VAC, 1.5 hp at 240 VAC 1-phase 2 hp at 200/208 VAC, 2 hp at 220/240 VAC, 5 hp at 440/480 VAC, 7.5 hp at 550/600 VAC 3-phase power rating
AF09-30-01-13 Standards
RoHS Compliant|cUL Listed|UL 508|CSA C22.2 No. 14|IEC/EN 60947-4-1, 60947-4-1A, 60947-4-1-07, EU Directive 2002/95/EC|CB Certified|CCC Marked|DNV Certified|EAC Certified|RINA Certified|CE CertifiedSKU #2274967Part Number #AF09-30-01-13UNSPSC39121529UPC03471523110137
