Part Number # 12TS15-1
SKU # 2276410
Image Disclaimers Message
Brand: Honeywell
12TS15-1

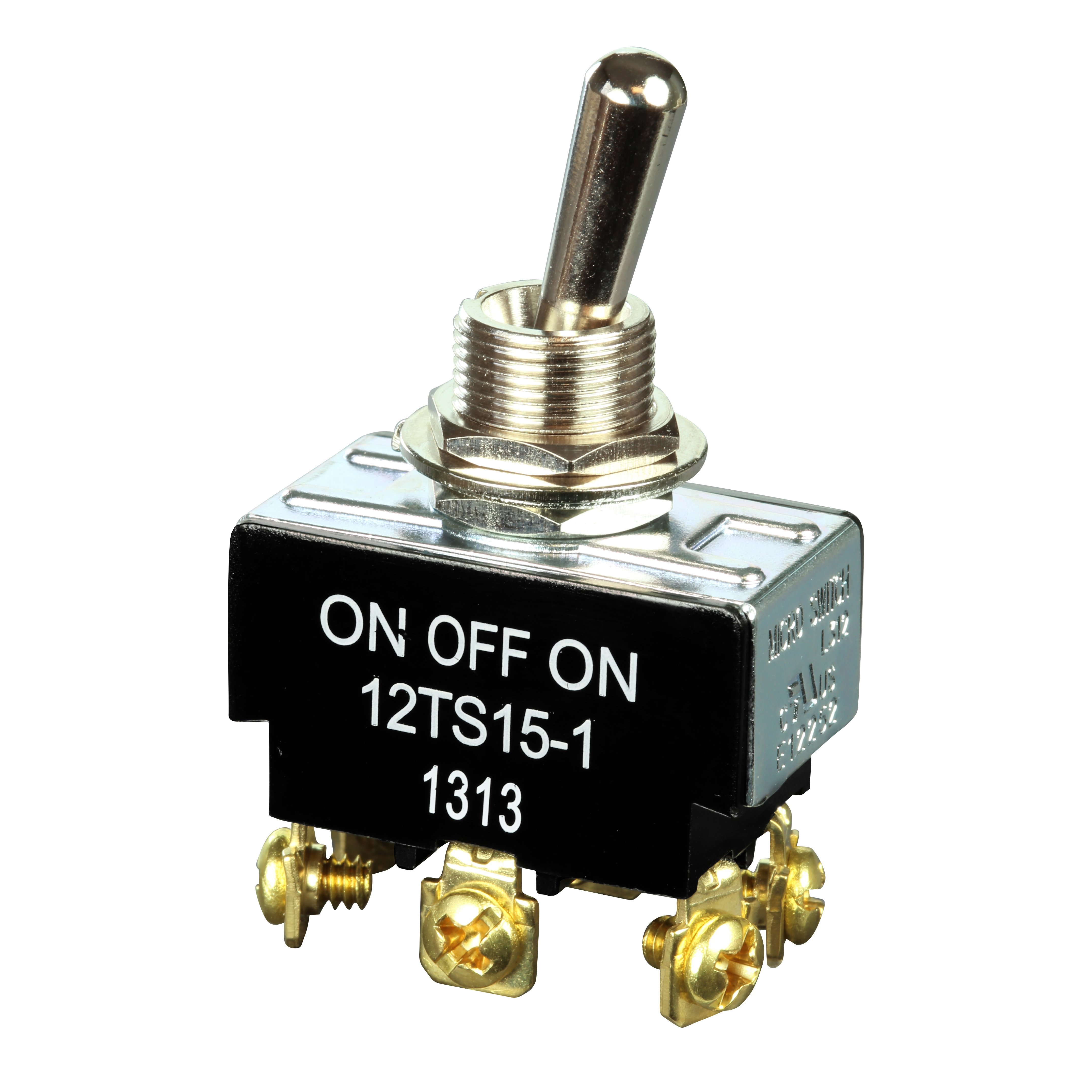

Honeywell 12TS15-1
Part Number # 12TS15-1
SKU # 2276410
$397.50 / 30Each
Typical price:$480.00 / Each
Honeywell 12TS15-1 Key Features
| Brand: | Honeywell |
|---|---|
| Part Number # : | 12TS15-1 |
| SKU #: | 2276410 |
| Actuator: | Toggle |
| Amperage Rating: | 20, 20 A |
| Contact Configuration: | DPDT |
| Contact Rating: | 10 A at 277 V AC, 20 A at 125 V AC, 10 A at 277 VAC, 20 A at 125 VAC |
| Dimensions: | 0.62 in L x 1.12 in W |
| Enclosure: | IP67/68 |
| Environmental Conditions: | -54 to 71 deg C Temperature |
| Frequency Rating: | 50/60, 50/60 Hz |
| Mounting: | Bushing |
| Number of Poles: | 2 |
| Series: | TS Series |
| Terminal Type: | Screw |
| Country of origin: | US |
| Manufacturer Name: | Honeywell |
| UNSPSC: | 39122211 |
| UPC: | 00078454966890 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$397.50 / 30Each
Typical price:$480.00 / Each
Quantity:
- Honeywell MICRO SWITCH Toggle Switch, Series: TS Series, 277 VAC, 20 A, 50/60 Hz Frequency, DPDT Contact Configuration, 10 A at 277 V AC, 20 A at 125 V AC Contact, 2 Pole, Toggle Actuator, IP67/68 Enclosure, Bushing Mounting, Screw Terminal, Environmental Conditions: -54 to 71 deg C Temperature, 0.62 in L x 1.12 in W Dimensions
12TS15-1 Specifications
- 2 or 3 position, momentary and maintained action
- 3 position action
- 1 and 2 pole circuitry
- Rated up to 20 A
- Lever-to-bushing seal
- Solder, screw, or quick-connect terminals
- 1 to 2, 4 to 5 keyway position
- 2 to 3, 5 to 6 opposite keyway position
- Silver plating
- 0.4 A to 20 A at 0.5 VAC to 125 VAC, 0.4 A to 10 A at 126 VAC to 277 VAC ampere/voltage range (resistive load)
12TS15-1 Application
For industrial machinery and equipment, military and commercial aviation, construction equipment, test instruments, agricultural machinery, process control and medical instrumentation12TS15-1 Item Features
- 2 or 3 position, momentary and maintained action
- 1 and 2 pole circuitry
- Rated up to 20 A
- Lever-to-bushing seal
- Solder, screw, or quick-connect terminals
- 1 to 2, 4 to 5 keyway position
- 2 to 3, 5 to 6 opposite keyway position
- Silver plating
- 0.4 A to 20 A at 0.5 VAC to 125 VAC, 0.4 A to 10 A at 126 VAC to 277 VAC ampere/voltage range (resistive load)
- 3 position action
12TS15-1 Standards
UL ListedSKU #2276410Part Number #12TS15-1UNSPSC39122211UPC00078454966890
