1469550000
Weidmuller 1469550000
Part Number # 1469550000
SKU # 2281204
$420.98 / Each
Typical price:$484.62 / Each
Weidmuller 1469550000 Key Features
| Brand: | Weidmuller |
|---|---|
| Part Number # : | 1469550000 |
| SKU #: | 2281204 |
| Amperage Rating: | 20 A |
| Frequency Rating: | 47/63 Hz |
| Input Voltage: | 320 to 570 V AC |
| Series: | Pro Eco |
| Country of origin: | CN |
| Depth: | 4.724 in |
| Height: | 4.921 in |
| Output voltage: | 24 V DC |
| Width: | 3.937 in |
| Manufacturer Name: | Weidmuller |
| UNSPSC: | 39121004 |
| UPC: | 04050118275742 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$420.98 / Each
Typical price:$484.62 / Each
Quantity:
- Weidmuller DC Power Supply, Series: Pro Eco, 320 to 570 V AC Input, 24 VDC Output, 480 W, 20 A, 47/63 Hz, DIN Rail Mount, 3.937 in Width, 4.724 in Depth, 4.921 in Height
1469550000 Item Features
- -25 to 70 deg C operating temperature, -40 to 85 deg C storage temperature
- 1.2 A at 3 x 500 VAC/1.5 A at 3 x 400 VAC AC current consumption, 0.7 A at 800 VDC/1.2 A at 450 VDC DC current consumption, 50 A maximum Inrush
- 2 A/DI, safety, 2 to 3 A char C circuit breaker recommended back up fuse
- Unrestricted capacitive load, 100 ms ramp up time
- < 50 mVSS at 24 VDC in residual ripple and breaking spikes
- > 30 ms at 3 x 500 VAC/> 20 ms at 3 x 400 VAC AC failure bridging time at Inom
- 89% degree of efficiency, 3.5 mA max earth leakage current
- Metal, corrosion resistant housing version
- LED green, LED yellow, LED red indication
- 5 to 95 % RH maximum permissible air humidity
- On terminal rail ts 35 mounting position and installation notice
- > 0.55 at 3 x 500 VAC/> 0.65 at 3 x 400 VAC approximate power factor
- 8 W idling power loss, 48 W nominal load power loss
- 30 to 35 VDC protection against reverse voltages from the load
- IP20 rated protection
- 2 pollution severity
- III surge voltage category
- 26 to 12 AWG/kcmil conductor, screw connection system, 4 for L1/L2/L3/PE terminals, 0.5 - 0.6 Nm torque, 2.5 mm sq max wire connection - input connection
- 26 to 10 AWG/kcmil conductor, screw connection system, 7 (+,--,13,14) terminals, 0.5 - 0.6 Nm torque - output connection
- 15 g in all directions shock resistance
1469550000 Standards
cULus Listed E258476|RoHS CompliantSKU #2281204Part Number #1469550000UNSPSC39121004UPC04050118275742

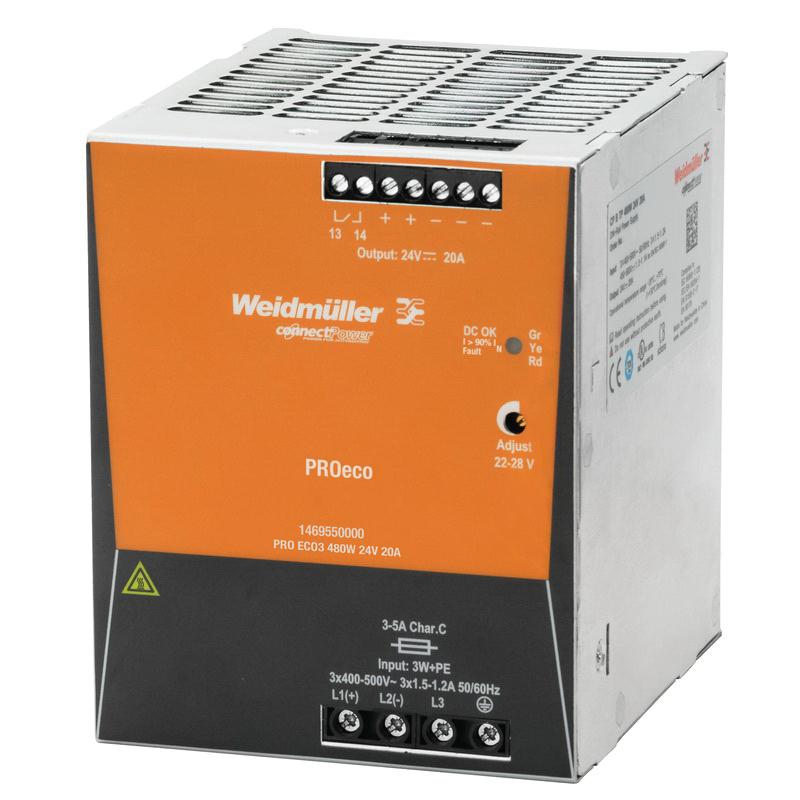

Image provided may only be a representation of final product and may include optional equipment
