Part Number # NJ1.5-18GM-N-D-V1
SKU # 2289100
Image Disclaimers Message
Brand: Pepperl+Fuchs
NJ1.5-18GM-N-D-V1

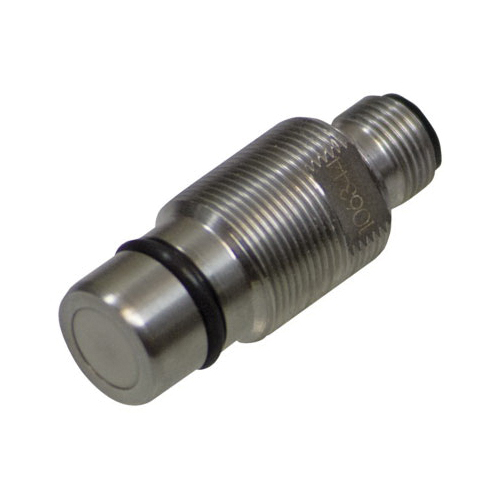

Pepperl+Fuchs NJ1.5-18GM-N-D-V1
Part Number # NJ1.5-18GM-N-D-V1
SKU # 2289100
$370.07 / Each
Pepperl+Fuchs NJ1.5-18GM-N-D-V1 Key Features
| Brand: | Pepperl+Fuchs |
|---|---|
| Part Number # : | NJ1.5-18GM-N-D-V1 |
| SKU #: | 2289100 |
| Contact Configuration: | NC |
| Sensing Distance: | 1.5 mm |
| Sensing Method: | Inductive |
| Series: | NJ1.5 |
| Size: | 18 mm Dia x 45 mm L |
| Switching Speed: | 400 Hz |
| Temperature Rating (Degrees F): | -13 to 185 deg F |
| Type: | Tubular |
| Material: | Stainless Steel |
| Mounting type: | Flush |
| Output type: | NAMUR |
| Manufacturer Name: | Pepperl+Fuchs |
| UNSPSC: | 39122230 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$370.07 / Each
Quantity:
- Pepperl+Fuchs Proximity Sensor, Tubular, Series: NJ1.5, Inductive Sensing Method, 1.5 mm Sensing Distance, NAMUR Output, NC, 8.2 V DC, 400 Hz Switching Speed, 18 mm Dia x 45 mm L, -13 to 185 deg F, Flush Mount, Stainless Steel
NJ1.5-18GM-N-D-V1 Item Features
- Compression proof up to 350 bar, dynamic on active surface
- 0 to 1.22 mm assured operating distance
- 350 bar operating pressure
- 4-pin, M12 x 1 connector
- Ceramic sensing face
- IP67 degree of protection
- <=1 mA measuring plate detected, 3 mA measuring plate not detected
NJ1.5-18GM-N-D-V1 Standards
cULus|cCSAus ListedSKU #2289100Part Number #NJ1.5-18GM-N-D-V1UNSPSC39122230UPC
