Part Number # 98512
SKU # 2292034
Image Disclaimers Message
Brand: TPC Wire & Cable
98512
TPC Wire & Cable 98512
Part Number # 98512
SKU # 2292034
$771.25 / 5Roll
Typical price:$776.40 / Roll
TPC Wire & Cable 98512 Key Features
| Brand: | TPC Wire & Cable |
|---|---|
| Part Number # : | 98512 |
| SKU #: | 2292034 |
| Color: | Yellow |
| Dielectric strength: | 275 V/mil |
| Length: | 36 ft |
| Material Type: | Synthetic Silicon Elastomer |
| Maximum Operating Temperature: | 400 deg F |
| Minimum Operating Temperature: | -60 deg F |
| Thickness: | 50 mil |
| Type: | Non-Reinforced |
| Width: | 1-1/2 in |
| Manufacturer Name: | TPC Wire & Cable Corp |
| UNSPSC: | MISC |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$771.25 / 5Roll
Typical price:$776.40 / Roll
Quantity:

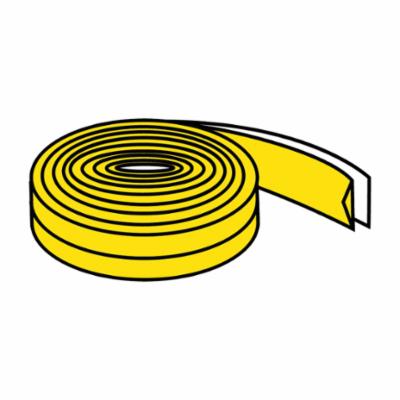

- TPC Wire & Cable Vulko-Wrap Electrical Tape, Non-Reinforced, 36 ft Length, 1-1/2 in Width, 50 mil Thickness, Synthetic Silicon Elastomer, Yellow, 275 V/mil Dielectric Strength, 1100 psi Tensile Strength, 400 deg F Maximum Operating, -60 deg F Minimum Operating, Specifications Met: ASTM D 149, ASTM D 412
98512 Application
Bus Bar Insulation, Cable Insulation Splices, Corrosive Areas, Electroplating Danglers, Food Related Equipment, High Heat, High Voltage, HVAC Equipment Lift Truck Battery, Cable Terminals, Motor Leads and Outdoor Terminations98512 Item Features
- High dielectric strength - can be used for all electrical connections
- Vulcanizes immediately - requires no heat, becomes fully bonded in 24 hr at room temperature, remains pliable over time
- Adheres only to itself - easy to remove, leaves no residue, covered fittings are immediately reusable
- 40 mil THK - extra thick design allows wrapping over sharp and irregular surfaces without tearing or puncturing
- Specially compounded, synthetic silicon elastomer - resistant to oil, water, ozone, and many chemicals
- Covers more surface than ordinary tape with a single wrap
98512 Standards
RoHS Compliant|MIL-I-46852/Superseded by CID A-A-59163A/Type IISKU #2292034Part Number #98512UNSPSCMISCUPC
