Part Number # AF750N7-3011-70
SKU # 2295589
ABB AF750N7-3011-70 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF750N7-3011-70 |
| SKU #: | 2295589 |
| Dimensions: | 8.27 in W x 9.53 in D x 14.05 in H |
| UNSPSC: | 39121529 |
| UPC: | 00662019876245 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF750N7-3011-70
Brand: ABB
Part Number: AF750N7-3011-70
Additional Description: ABB -AF750N7-3011-70 (N) (S) NEMA-S7,3P,722A,100-250VAC/DC,1/1 NON-CANCELABLE, NON-RETURNABLE
AF750N7-3011-70 Specifications
- Compact, space saving design
- 400 kW at 1000 V, 220 kW at 220/230/240 V, 400 kW at 380/400 V, 425 kW at 415 V, 450 kW at 440 V, 520 kW at 500 V, 600 kW at 690 V
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 coils to cover control voltages between 48 to 500 V 50/60 Hz and 24 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 250 hp at 200 VAC 3 ph, 250 hp at 208 VAC 3 ph, 300 hp at 220 to 240 VAC 3 ph, 600 hp at 440 to 480 VAC 3 ph, 700 hp at 550 to 600 VAC 3 ph
SKU #2295589Part Number #AF750N7-3011-70UNSPSC39121529UPC00662019876245

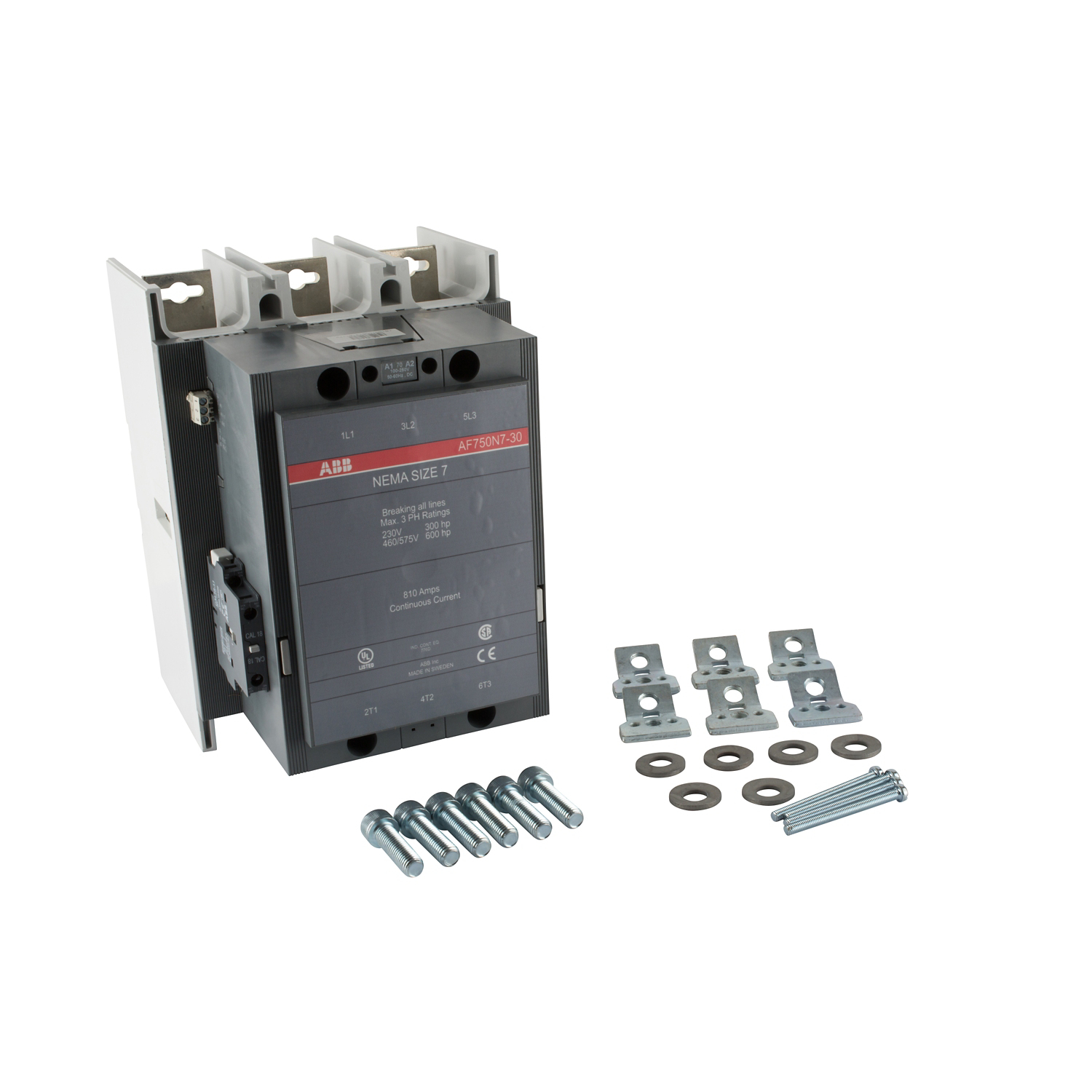

Image provided may only be a representation of final product and may include optional equipment
