Part Number # TM221ME16T
SKU # 2297365
TM221ME16T
Schneider Electric TM221ME16T
Part Number # TM221ME16T
SKU # 2297365
Schneider Electric TM221ME16T Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | TM221ME16T |
| SKU #: | 2297365 |
| Signal Range: | 24 V DC Transistor, 7 mA Discrete, 5 mA Fast Input |
| Communication: | DHCP Client, Ethernet/IP Adapter, Modbus TCP Client, Modbus TCP Server, Modbus TCP Slave Device |
| UNSPSC: | 32151705 |
| UPC: | 00785901955580 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric TM221ME16T
Brand: Schneider Electric
Part Number: TM221ME16T
Schneider Electric Modicon M221 Logic Controller, I/O Transistor PNP EtherNet, 24 V DC, 0.5 A, 4/22.9 W Power, 16 Inputs, 16 Outputs, 24 V DC Transistor, 7 mA Discrete, 5 mA Fast Input Signal, DHCP Client, Ethernet/IP Adapter, Modbus TCP Client, Modbus TCP Server, Modbus TCP Slave Device Communication, Memory: 256 kB, Mini B USB 2.0 Connector Programming, 1.2 to 115.2 kbps Transfer Rate, Plate/Panel Mounting, -10 to 55 deg C Horizontal/-10 to 35 deg C Vertical, 70 mm L x 70 mm W x 90 mm H Dimens
Additional Description: SQD -TM221ME16T CONTROLLER M221-16IO TR.PNP ETH MODULAR
Catalog Description: logic controller, Modicon M221, 16 IO, 8 DI, 8 DO, transistor, PNP, Ethernet
TM221ME16T Specifications
- IP20 degree of protection
- USB port with connector mini B USB 2.0, Ethernet with connector RJ45, non-isolated serial link "serial 1" with connector RJ45 and interface RS232/RS485 integrated connection type
- 10 to 95% without condensation relative humidity
- 10 ms immunity to micro breaks
- 10BASE-T/100BASE-TX 1-port with 100 m Cu cable port Ethernet
- 60 us response time
- 0.2 us Boolean
TM221ME16T Application
ordinary and hazardous locationTM221ME16T Item Features
- SD card and USB port
- 2 analog inputs and a broad choice of I/Os
- Run/stop switch and cartridge extension
- Ethernet and serial line ports
- M221 controllers can connect to Modicon TM3 expansion modules for local, remote or distributed I/O configurations
- https://www.youtube.com/embed/iJxVMr0UXZM
TM221ME16T Standards
RoHS Compliant|ABS/DNV/GL/EAC Approved|IACS E10|CE Marked|CSA/LR Certified|UL/cULus/RCM Listed|EN/IEC 61131-2/61010-2-201/60664-1|REACH Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65Warnings.ca.govSKU #2297365Part Number #TM221ME16TUNSPSC32151705UPC00785901955580

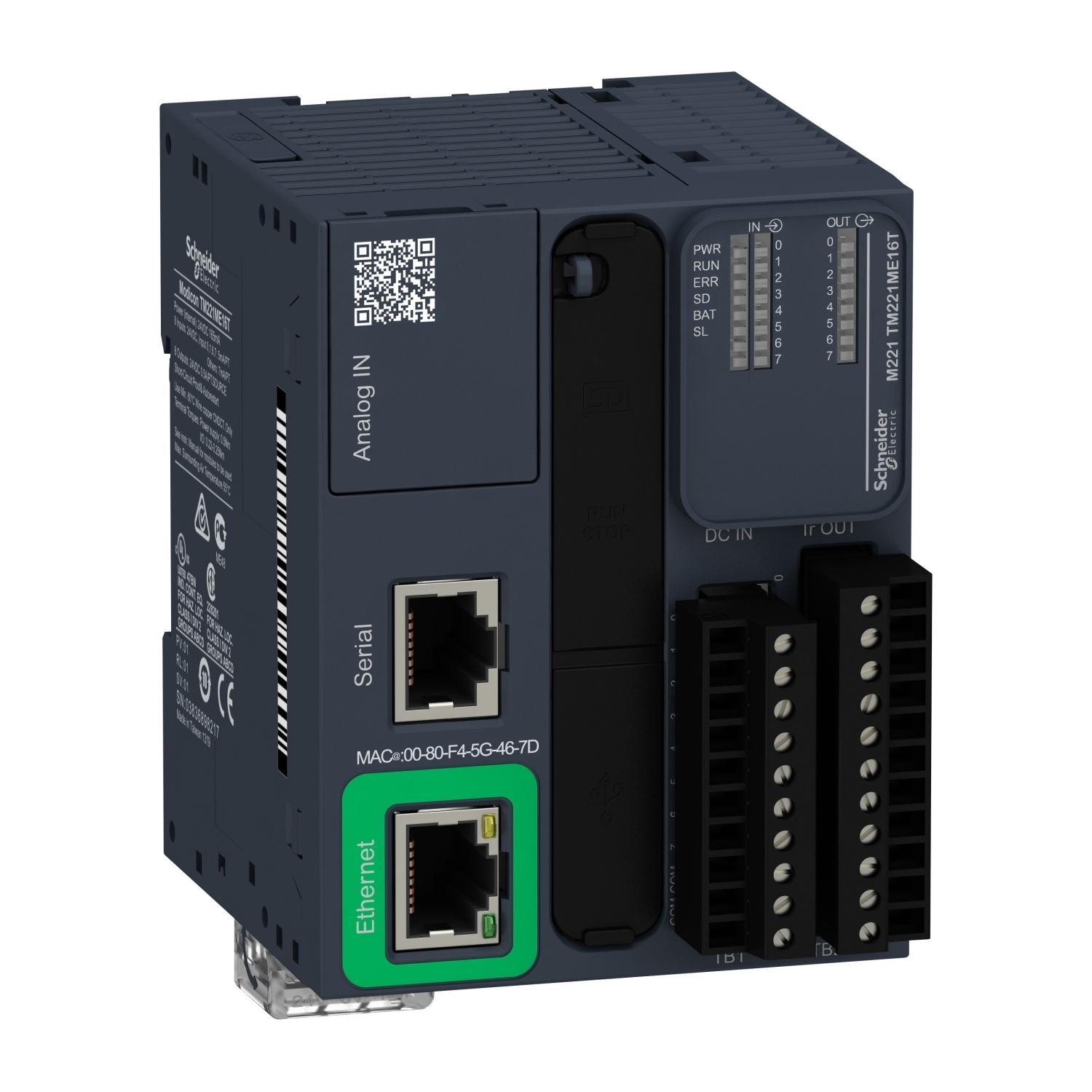

Image provided may only be a representation of final product and may include optional equipment
