Part Number # 308TX
SKU # 2306744
Image Disclaimers Message

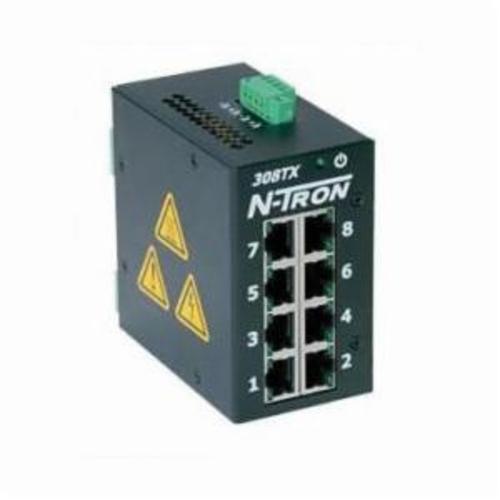

Red Lion 308TX Key Features
| Brand: | Red Lion |
|---|---|
| Part Number # : | 308TX |
| SKU #: | 2306744 |
| Connector Type: | 10/100 Base RJ45 TX |
| Environmental Conditions: | 10 to 95% Humidity |
| Network Type: | >Cat 5 |
| Port Type: | 8 RJ45 Copper |
| Temperature Rating (Degrees F): | -20 to 70, -20 to 70 deg C |
| Type: | Unmanaged |
| Cable type: | MDIX Auto Sensing |
| Height: | 3-1/2, 3-1/2 in |
| Length: | 3.4, 3.4 in |
| Memory: | 1, 1 Gbps |
| Mounting type: | DIN Rail |
| Power supply: | 10/30, 10/30 V DC, 10/30 VDC |
| Width: | 2, 2 in |
| Manufacturer Name: | Red Lion Controls |
| UNSPSC: | 43222612 |
| UPC: | 00083765465211 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
- redlion N-Tron Ethernet Switch, Unmanaged, 8 RJ45 Copper Port, Memory: 1 Gbps, Network: >Cat 5, MDIX Auto Sensing Cable, 10/100 Base RJ45 TX Connector, 10/30 V DC Supply, DIN Rail Mount, 3.4 in Length, 2 in Width, 3-1/2 in Height, -20 to 70 deg C, Environmental Conditions: 10 to 95% Humidity
308TX Application
Industrial, Data Acquisition, Control and Ethernet Input/Output Applications308TX Item Features
- Compact size/small footprint
- Auto sensing speed and flow control
- Extended environmental specifications
- Supports full/half duplex operation
- Store-and-forward technology
- ESD and surge protection on all built-in ports
- Unmanaged operation
- Industrial network switch is designed to meet and exceed the most demanding industrial communication requirements While providing high throughput and minimum downtime
- Provides eight RJ-45 auto sensing 10/100BaseTX ports, all ports are full/half duplex capable, using "state of the art" Ethernet switching technology
- Auto-negotiates the speed and flow control capabilities of the TX copper port connection, and configures itself automatically
- Auto sensing, so there will be no need to make extensive wiring changes if upgrades are made to host computers, plant systems, or Ethernet I/O modules
- The switching fabric simply scales up or down automatically to match network environments
- Supports up to 4000 MAC addresses, enabling These products to support extremely sophisticated and complex network architectures
- Ideal candidate for upgrading existing hubs and repeaters to Increase bandwidth and determinism by virtually eliminating network collisions
- The product provides a cost effective solution While maintaining the plug and play simplicity of an unmanaged hub
- Simplifies plant wiring by eliminating the need to bring data acquisition and control network connections back to a climate controlled environment
- Has extended operating environmental specifications to meet the harsh needs of the industrial environment for cost savings and convenience the network switch can be DIN rail mounted alongside Ethernet I/O or other industrial equipment
- The unique compact size provides a small footprint conserving space in the most critical dimension, to Increase reliability, the 304TX contains redundant power inputs LEDs are provided to display power on off status as well as the link status and activity of each port
- Operating humidity is 10% to 95% (non condensing), operating altitude is 0 to 10000 ft, 200 g at 10ms shock, vibration/seismic of 50 g, 5-200 Hz, triaxial
- Input current is 250 mA at 24 V inrush is 9 A/0.5 ms at 24 V recommended wiring clearance is 4 in front, 1 in top
308TX Standards
FCC Part 15 Class A|UL Listed 1604 (US, Canada), CLASS I, DIV 2, GROUPS A,B,C,D,T4A|CE:EN61000-6-2,4|EN61000-4-2,3,4,5,6|EN55011|GOST-R Certifi ed|RoHS compliantSKU #2306744Part Number #308TXUNSPSC43222612UPC00083765465211
