Hammond Manufacturing 1554MPB2 Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | 1554MPB2 |
| SKU #: | 2309328 |
| Capacity: | 52.92 cu-in |
| NEMA Rating: | NEMA 4X/13 |
| Panel Size: | 5.8 in L x 3 in W |
| Series: | 1554 PB |
| Type: | 2-Hole Electronic |
| Depth: | 2.4 in |
| Length: | 6.3 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121326 |
| UPC: | 00623980843346 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

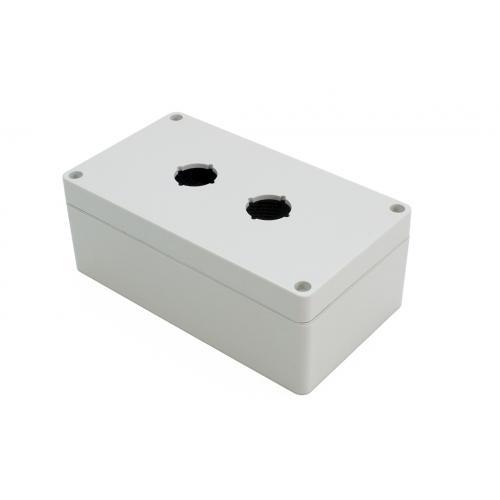

- Hammond Pushbutton Enclosure, 2-Hole Electronic, Series: 1554 PB, 6.3 in Length, 3-1/2 in Width, 2.4 in D, NEMA 4X/13, 5.8 in L x 3 in W Panel, 52.92 cu-in, Wall Mount, Polycarbonate, Light Gray
1554MPB2 Specifications
- The polycarbonate material carries a UL flammability rating of UL94 5V and is suitable for outdoor use
- Lid and mounting holes are located outside of the gasket seal
- All stainless steel hardware to avoid corrosion caused by dissimilar metals
- Gasket is factory poured using high temperature UL listed - silicone rubber gasket material
- Gasketed lid with 2-piece "tongue and groove" construction provides protection against access of oil, dust and water
- Threaded (M3) integral brass inserts and standoffs designed for M3.5 or #6 self tapping screws for PC board or inner panel mounting in all but the smallest size
- Vertical PC card guides (for 1.5 mm THK PC boards) are molded in all but the smallest size
- Lid is secured with self captivating M4 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly and disassembly)
- Provides protection from dirt, dust, oil and water
1554MPB2 Application
For standard pushbuttons, switches and pilot lights1554MPB2 Includes
Machine Screws1554MPB2 Item Features
- The polycarbonate material carries a UL flammability rating of UL94 5V and is suitable for outdoor use
- Lid and mounting holes are located outside of the gasket seal
- All stainless steel hardware to avoid corrosion caused by dissimilar metals
- Gasket is factory poured using high temperature UL listed - silicone rubber gasket material
- Gasketed lid with 2-piece "tongue and groove" construction provides protection against access of oil, dust and water
- Threaded (M3) integral brass inserts and standoffs designed for M3.5 or #6 self tapping screws for PC board or inner panel mounting in all but the smallest size
- Vertical PC card guides (for 1.5 mm THK PC boards) are molded in all but the smallest size
- Lid is secured with self captivating M4 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly and disassembly)
- Provides protection from dirt, dust, oil and water
1554MPB2 Standards
RoHS Compliant|cULus Listed|UL 941554MPB2 Warranty
1 YearSKU #2309328Part Number #1554MPB2UNSPSC39121326UPC00623980843346

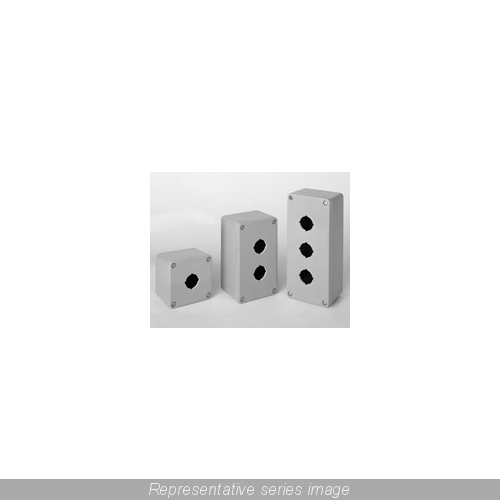

Image provided may only be a representation of final product and may include optional equipment
