Part Number # CAD323BD
SKU # 2312594
Schneider Electric CAD323BD Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | CAD323BD |
| SKU #: | 2312594 |
| Contact Form: | 3NO-2NC 3 Form A/2 Form B |
| Dimensions: | 3.9 in H x 1.77 in W x 3.66 in D |
| Enclosure Type: | IP2X |
| Series: | TeSys D |
| Terminal Type: | Spring |
| UNSPSC: | 39122331 |
| UPC: | 00785901100201 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

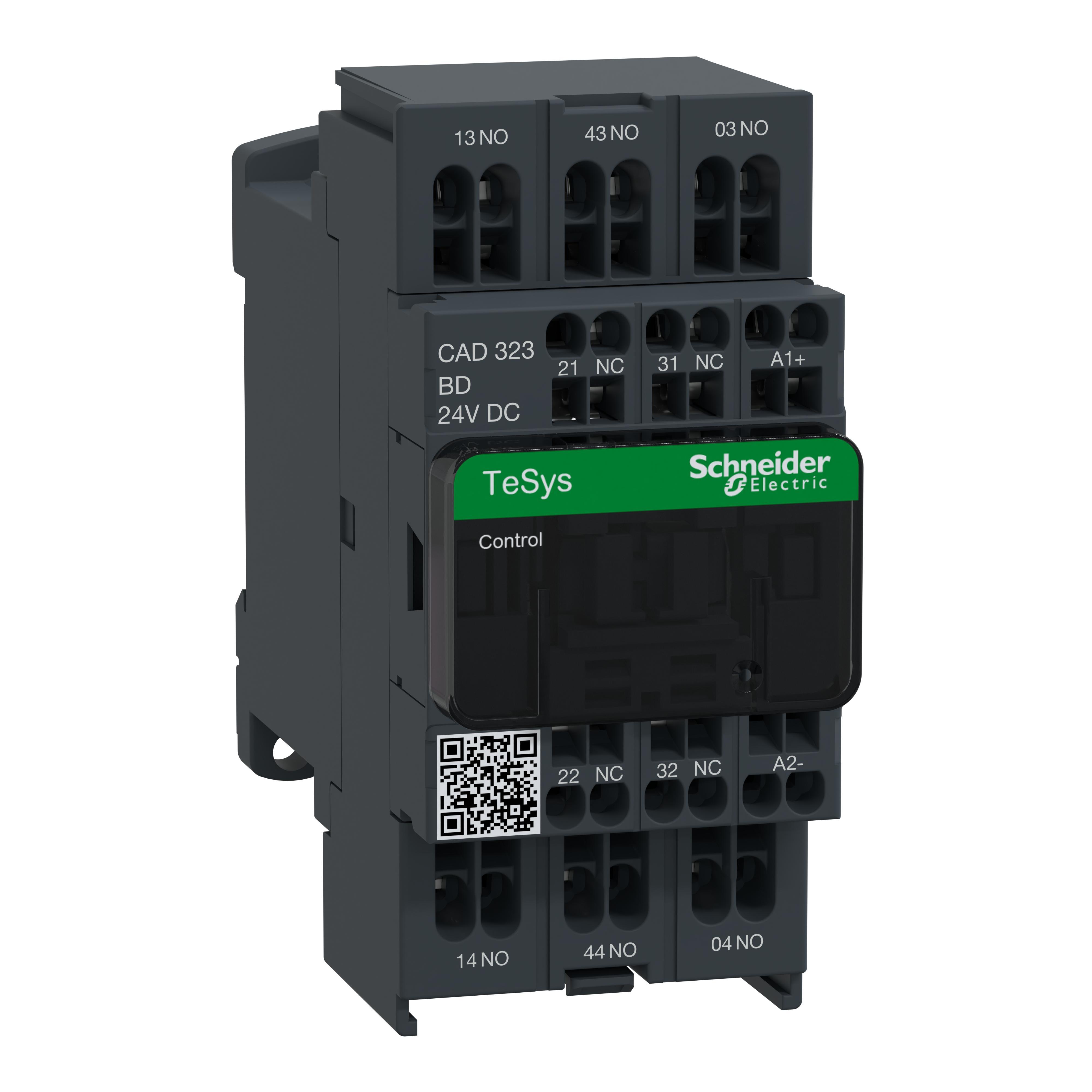

- Schneider Electric Square D IEC Control Relay, Series: TeSys D, 10 A, 5.4 W Power, 50/60 Hz Frequency, 24 V DC Coil, 3NO-2NC 3 Form A/2 Form B Contact Form, 5 Pole, Front/Plate Rail Mounting, Spring Terminal, IP2X Enclosure, -40 to 70 deg C, 3.9 in H x 1.77 in W x 3.66 in D Dimensions
CAD323BD Application
For multi-pole switching applications at voltages up to 600 and control circuit applicationsCAD323BD Item Features
- Same design as TeSys D, K and SK contactors
- Different ways for connection (such as screw clamp terminal, spring terminal, welded on PCB)
- Compatible for all the voltages on the market
- Control relays for AC or DC control circuits (AC15, DC13)
CAD323BD Standards
RoHS Compliant|REACH Compliant|VDE 0106/0660|IEC 60947-5-1|NF C 63-140|BS 4794|EN 60947-5|UL Listed|CSA Certified|Green Premium|WEEE Compliant|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.govSKU #2312594Part Number #CAD323BDUNSPSC39122331UPC00785901100201
Image provided may only be a representation of final product and may include optional equipment
