Part Number # JM60060-3MW14
SKU # 2320483
Image Disclaimers Message
JM60060-3MW14
Bussmann JM60060-3MW14
Part Number # JM60060-3MW14
SKU # 2320483
$895.48 / 4Each
Typical price:$1820.96 / Each
Bussmann JM60060-3MW14 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | JM60060-3MW14 |
| SKU #: | 2320483 |
| Amperage Rating: | 60 A |
| Class: | J |
| Dimensions: | 3.7 in L x 4.5 in W x 2.6 in H |
| Number of Poles: | 3 |
| Series: | JM Series |
| Temperature Rating (Degrees F): | -40 to 120 deg C |
| Type: | Modular Ferrule |
| Color: | Black |
| Connection type: | Box/Load Side Lug |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712620642 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$895.48 / 4Each
Typical price:$1820.96 / Each
Quantity:

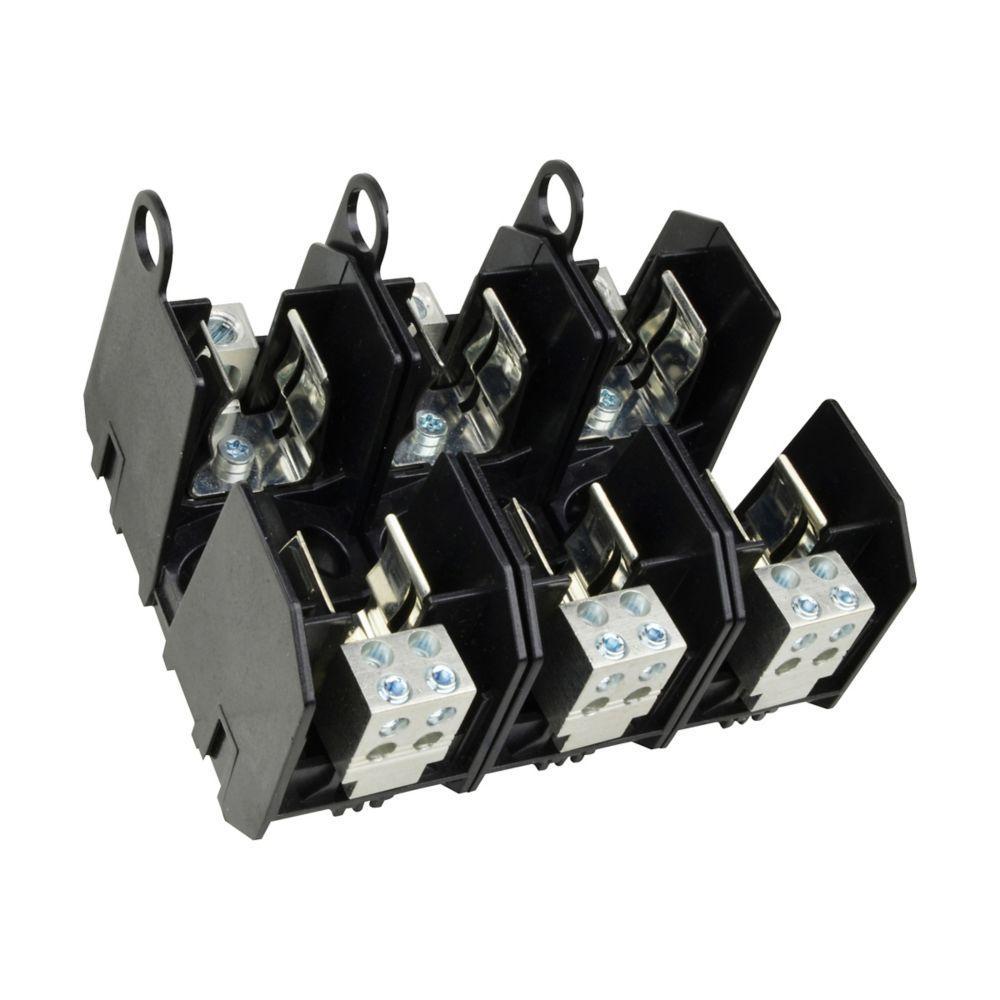

- Bussmann Fuse Block, Modular Ferrule, Series: JM Series, 600 V, 60 A, 3 Pole, Class: J, Box/Load Side Lug Connection, DIN Rail/Panel Mounting, -40 to 120 deg C, Thermoplastic, Black, 3.7 in L x 4.5 in W x 2.6 in H Dimensions
JM60060-3MW14 Application
Electrical Assemblies, Panels and EOEMsJM60060-3MW14 Item Features
- To reduce inventory, assembly time and labor, modular single-pole blocks snap together for tool-less assembly of multiple poles at point of use
- DIN rail and panel mount versatility allows one product to be used for multiple applications with lower inventory cost
- Save panel space with the smallest width dimension on the market
- Standard clip reinforcing springs improve temperature rise performance while maintaining reliable surface contact between the fuse ferrule and clip over the blocks service life
- Multi-wire fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
JM60060-3MW14 Standards
ARO ,European Pressure Equipment Directive (PED) 97 /23 EC,RoHS CompliantSKU #2320483Part Number #JM60060-3MW14UNSPSC39121629UPC00051712620642
